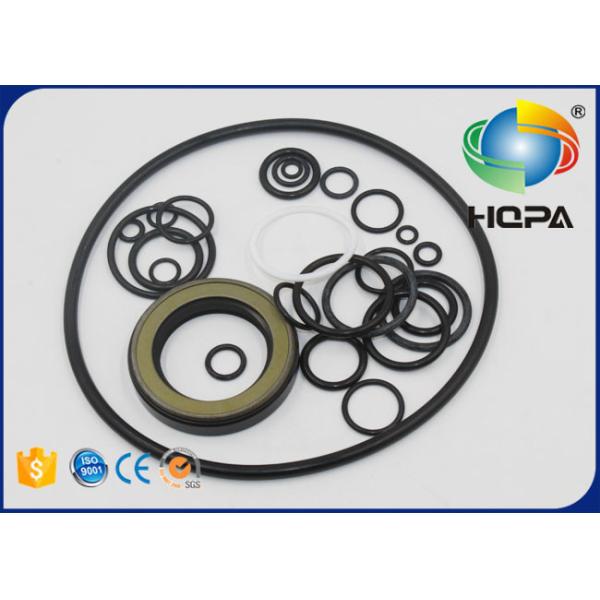

708-1L-00650KT 708-1L-00650 Hydraulic Main Pump Seal Kit For Komatsu PC130-7

Categories Pump Seal Kit
Brand Name: HQPA/OEM
Model Number: 708-1L-00650KT 708-1L-00650 Hydraulic Main Pump Seal Kit
Certification: ISO9001
Place of Origin: CHINA(MAINLAND)
MOQ: Negotiable
Price: negotiation
Payment Terms: Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability: 500 Sets per Week
Delivery Time: 3-5 days after payment received(public holiday excluded)
Packaging Details: PP bag inside, carton box outside
Product: 708-1L-00650KT 708-1L-00650 Hydraulic Main Pump Seal Kit
Part Number: 708-1L-00650KT 708-1L-00650 7081L00650KT 7081L00650 Hydraulic Pump Assy
Fit for model: Komatsu PC110-7 PC130-7 PC130-7K PC130F-7
Group: Hydraulic Main Pump Seal Kit / Pump Seal Kit
Loading Port: HUAGNPU,China (Mainland)
Packing: Neutral packing / HQPA packing
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

708-1L-00650KT 708-1L-00650 Hydraulic Main Pump Seal Kit For Komatsu PC130-7

708-1L-00650KT 708-1L-00650 Hydraulic Main Pump Seal Kit for Komatsu PC130-7
1.Product Description:

The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.


Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.



2.General Product Information:


708-1L-00650KT 708-1L-00650 Hydraulic Main Pump Seal Kit for Komatsu PC130-7
Brand NameHQPA/OEM
Product Name708-1L-00650KT 708-1L-00650 Hydraulic Main Pump Seal Kit for Komatsu PC110-7 PC130-7 PC130-7K PC130F-7
Product styleHydraulic Main Pump Seal Kit / Main Pump Seal Kit
Part No.708-1L-00650KT 708-1L-00650 7081L00650KT 7081L00650 Hydraulic Pump Assy
Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
ApplicationKomatsu PC110-7 PC130-7 PC130-7K PC130F-7
MOQ1 PC
Condition100% New
PackageInner-Plastic Bag; Outer -Standard Carton Box.
PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure portsHuangpu(Guangzhou), China (Mainland)
Delivery time3-5 days after payment received(public holiday excluded)
Place of originChina (Mainland)
ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model


Part Number: 708-1L-00650KT 708-1L-00650
Group: Hydraulic Main Pump Seal Kit
Fit for model: Komatsu PC110-7 PC130-7 PC130-7K PC130F-7


4.Related parts


708-1L-00650KT 708-1L-00650 Hydraulic Main Pump Seal Kit for Komatsu PC130-7


Part NoParts namePart NoParts name
708-1L-00650PUMP ASS'YTHIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-08A0.
708-1L-01650PUMP SUB ASS'Y708-2L-04240CASE ASS'Y,FRONT
07044-12412PLUG07002-62434O-RING
720-68-19870PLUG07002-61223O-RING
04530-11018BOLT,EYE708-8E-16150PLUG
07002-61023O-RING708-8H-11530PLUG
07002-61423O-RING708-1L-00650PUMP ASS'Y
708-1L-04150CAP ASS'Y,END708-2L-32260BEARING
07000-B5165O-RING04020-01228PIN
07000-B2010O-RING07000-B2012O-RING
07000-B2014O-RING708-2L-25480FILTER
01010-61450BOLT01643-31445WASHER
07040-12414PLUG07002-62434O-RING
708-1L-01650PUMP SUB ASS'Y708-2L-32110SHAFT,FRONT
708-2L-32150BEARING708-2E-05040WASHER KIT
708-25-12790RING,SNAP708-25-52861SEAL,OIL
708-2L-22160SPACER04065-06825RING,SNAP
708-2L-06170BLOCK ASS'Y,FRONT720-68-19610PIN
04065-04818RING,SNAP708-2L-23131SEAT
708-2L-33160SPRING708-7L-13140SEAT
708-2L-23351GUIDE,RETAINER708-2L-23360PIN
708-2L-33350RETAINER,SHOE708-2L-33310PISTON SUB ASS'Y
708-2L-04361CRADLE ASS'Y04020-01228PIN
07000-B1009O-RING01252-61230BOLT
708-2L-24514PISTON,SERVO708-2L-24670SEAL
708-2L-24570SLIDER708-2L-24560STOPPER
07000-B3040O-RING07001-03040RING,BACK-UP
708-2L-24522COVER01252-61445BOLT
113-43-31380WASHER708-2L-24640BOLT
708-2L-24650NUT708-2L-24630SPRING
708-2L-24531SCREW07002-63634O-RING
708-2L-24661WASHER708-2L-24590NUT
07002-63034O-RING07000-B1009O-RING
708-2L-24680SEAL07002-62434O-RING
02789-00210PLUG02896-61008O-RING
702-21-07311VALVE ASS'Y,EPC708-2L-04291BLOCK ASS'Y
708-2L-23970O-RING07040-11007PLUG
07002-61023O-RING01252-60865BOLT
203-60-62220BOLT21W-62-43960ELBOW
07002-61423O-RING02896-61008O-RING
02781-0021DUNION01582-11008NUT
708-1L-29361HOSE708-1L-29350HOSE
708-2L-23960O-RING07000-B2011O-RING
8255-62-4360ELBOW708-1L-29340ORIFICE
20Y-62-22790BAND, RED20Y-62-22830BAND, WHITE
