50 Tons Side Wall Semi Trailer With 12 Pcs Container Twist Lock

Categories Side Wall Semi Trailer
Brand Name: TRUCKMAN AUTO
Model Number: TKM36HGYWS
Certification: SGS, BV, CIQ
Place of Origin: CHINA
MOQ: 1 Unit
Price: negotiable
Payment Terms: L/C, T/T
Supply Ability: 1500 Unit / Per Month
Delivery Time: 20 working days
Packaging Details: Nude
Axle: 3x13T or 16T, FUWA/BPW Brand
Suspension: Mechanical suspension,bogie suspension or air suspension
Spring Leaf: 90x16mmx10pcs
King Pin: JOST brand 2.0 or 3.5 inch
Support Leg: JOST brand D200T, 28 tons
Bottom Platform: 3mm-thick checkered plate
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

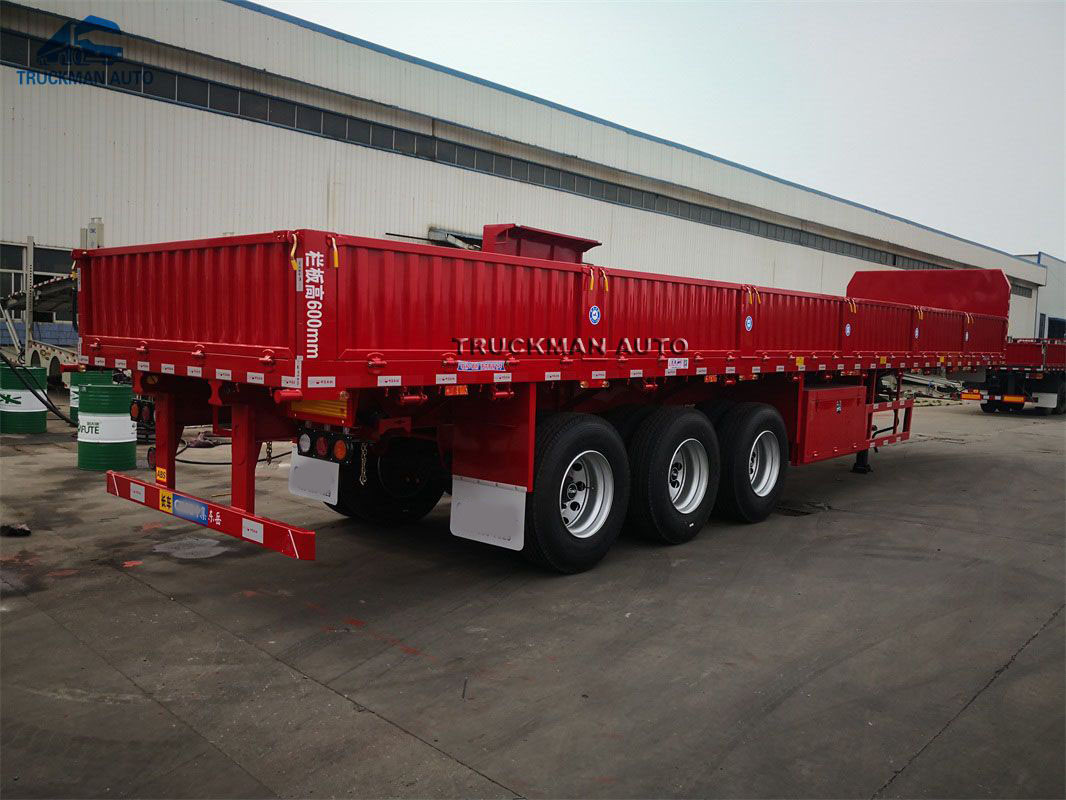

50 Tons Side Wall Semi Trailer With 12 Pcs Container Twist Lock

50 Tons Side Wall Trailer With 12 Pcs Container Twist Lock

-1. 50 Tons Side Wall Trailer Main Detail.


-. Adopt the high strength steel, automatic welding tech.

-. 3x13 tons axle, with 16mm thickness brake liner.

-. JOST brand support leg and tractor pin

-. LINGLONG brand radial or tubeless tire could optional

-. 1 year warranty for the main parts



-2. 50 Tons Side Wall Trailer Main Specification.


DescriptionParameter value
Product Name50 Tons Side Wall Trailer
Loading Weight50,000kg
Tare Weight8,500kg
Axle3 axle, 3x13 tons
SuspensionAmerica type, 8mm thickness
Leaf Spring90x16mmx10pcsx6sets
Rim16mm thickness
Tire12R22.5, 12 pcs
Brake SystemWABCO brand, ABS and 6 pcs brake chamber
Thickness Of Frame

Upper plate 12mm, middle 8mm,

lower plate 18mm, “I” type main beam

MaterialQ345, high strength steel
ApplicationTransport the container and bulk cargo
Dimension12500x2500x1550+800mm

The specification is only for reference, we could design the 50 tons side wall trailer according to your request.

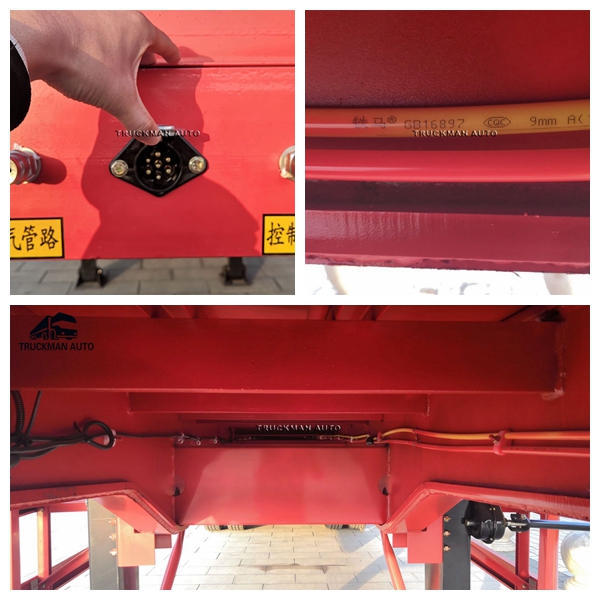

-3. 50 Tons Side Wall Trailer Electric System Picture.



The side wall semi trailer electric adopt the high quality copper wire and all wire not nudity, strapping good, different function wire with different color, for easier maintenance. also the lamp with protect cover.
