Product name: | Heat Deformation & Vicat Softening Temperature Measurer |
Heating Rate: | 50℃/h, 120℃/h |
Max. Temperature Deviation: | ±0.5℃ |
.Temperature-control Range: | room temperature ~ 300℃ |
feature: | ISO9001 |
keyword: | 4kw Heating Power 220v 50hz HDT VICAT Testing Machine |
Company Info. |
Beijing Jinshengxin Testing Machine Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Heat Deformation & Vicat Softening Temperature Measurer
Used to measure heat deformation and Vicat softening temperature of thermoplastics material of plastic and rubber in the manufacturer, scientific research and colleges.
Model | XRW-300F |
Technical data | 1. Equipped with 3 stations (Ability to test 3 samples simultaneously) 2. Automatic performance: A left for moving the samples 3. Air above 150 Degree centigrade, 150 Degree centigrade the following water or natural cooling. 4. Deformation measurement:LVDT 5. Heating Rate: 50oC/h, 120oC/h 6. Max. Temperature Deviation: ±0.5oC 7. Max. deformation deviation: 0.001mm 8. Vicat load: 10N ± 0.2 N , 50N ± 1N 10. Temperature-control Range: room temperature ~ 300oC 11. Deformation Measuring Rage: 0 ~ 1mm 12. Sample Frame Number: 3 13. Test Span: 60~120mm 14. Heating Power: 4KW 15. Power Supply: 220V 50Hz 16. Computer:notebook computer 17. Printer:Colour ink jet printer |

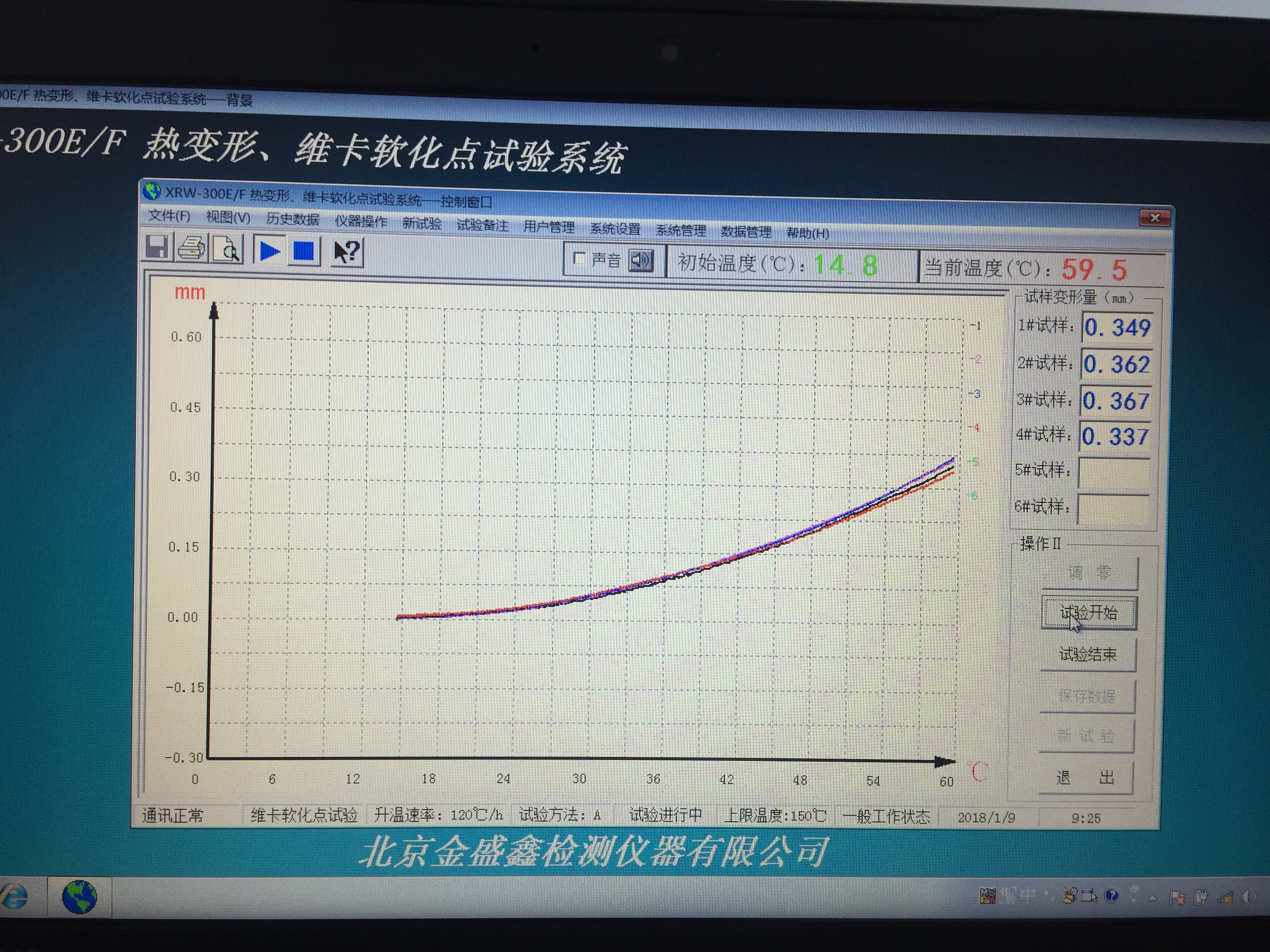

Type and display | Floor type, test frame is automatically up and down PC-control system Real-time display of data and curve ,the result can be copied and printed |
Standards | GB/T1633, GB/T1634, ISO75, ISO306,ASTM D648, ASTM D1525,ISO 2507 |
Usage | Used to measure heat deformation and Vicat softening temperature of thermoplastics material of plastic and rubber in the manufacturer, scientific research and colleges. |
![]() |
