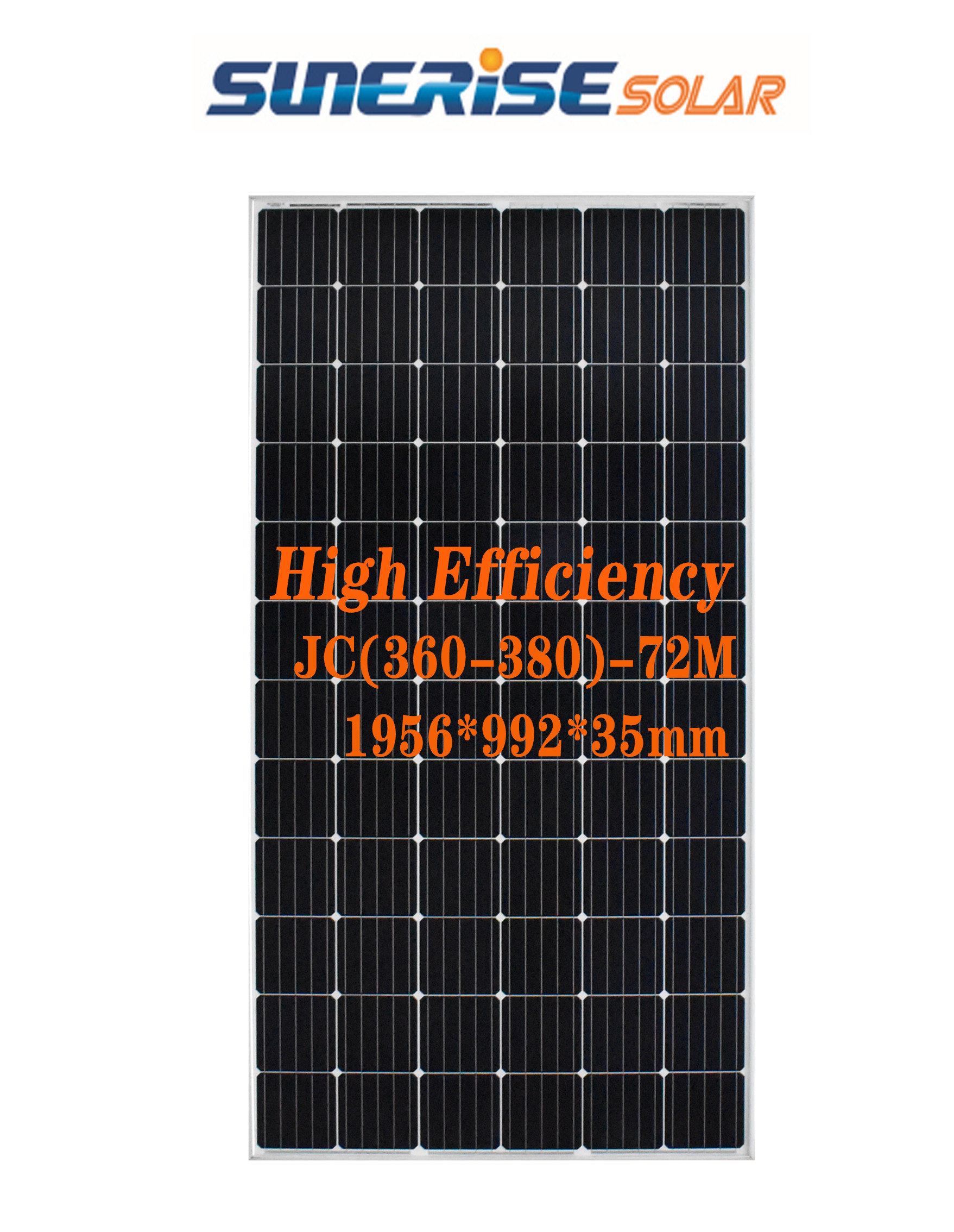

72PCS 360 Watt Monocrystalline Solar Panel SunFlower Series

Categories Monocrystalline Solar Panel
Brand Name: SUNERISE
Model Number: JC360-72M
Certification: TUV , CQC , CE , ISO
Place of Origin: Hefei,China
MOQ: 31pcs
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 1MW,1Month
Delivery Time: 5-8 work days
Packaging Details: Packed in cartons with 30 pieces per pallet
Solar Cell: Monocrystalline cell156*156
Number Of Cells: 72PCS
Power Range: 360W
Size: 1956*992*35mm
Weight: 21.5KG
Waterproof Grade: IP 68
Warranty: 25 years
Payment: T / T , L / C, O/A
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

72PCS 360 Watt Monocrystalline Solar Panel SunFlower Series

Sun Flower Series Connection Type 360 Watt Monocrystalline Solar Panel


Sunerise 72PCS 360W 48V Monocrystalline Solar Panel


Maximum Power at STC [Pmax]360W
Open Circuit Voltage [Voc]48.00V
Short Circuit Current [Isc]9.51A
Voltage at Maximum Power Point [Vm]39.50
Current at Maximum Power Point [Im]9.12
Power Tolerance0~+5W
Module Efficiency18.55
Maximum Power at NOCT [Pmax]270
Open Circuit Voltage [Voc]46.5
Short Circuit Current [Isc]7.61
Voltage at Maximum Power Point [Vm]37.7
Current at Maximum Power Point [Im]7.17
Values at Standard Test Conditions STCAir Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃
NOCTIrradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s

Feature

The products are light weight; high efficiency; and conversion rate 18.55%.It can be used in households, camping, RVs, yachts, street lights and solar power stations. Using the latest component packaging technology, thinner, lighter, softer and longer life.

Product details

1. Safe to use with long service life . Environmental protection solar energy.

2. Strictly quality control ensure the stability and reliability .

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance.

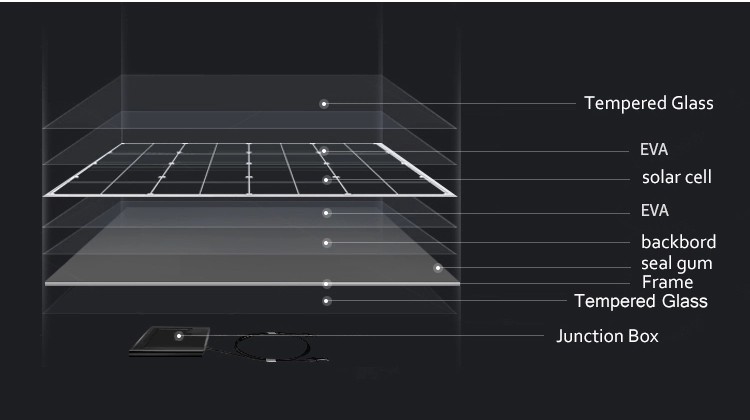

Manufacturing Technique

Antireflective glass
Translucency of normal luminance is increased 2%
Module efficiency is increased 2%
Self-clean function
Service life 25 years

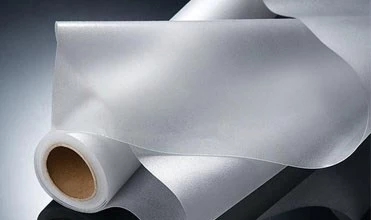

EVA

* >91% Higher Transmittance EVA,

* Higher GEL Content To Provide Good Encapsulation And

Protect Cells From Vibration With Longer Durability

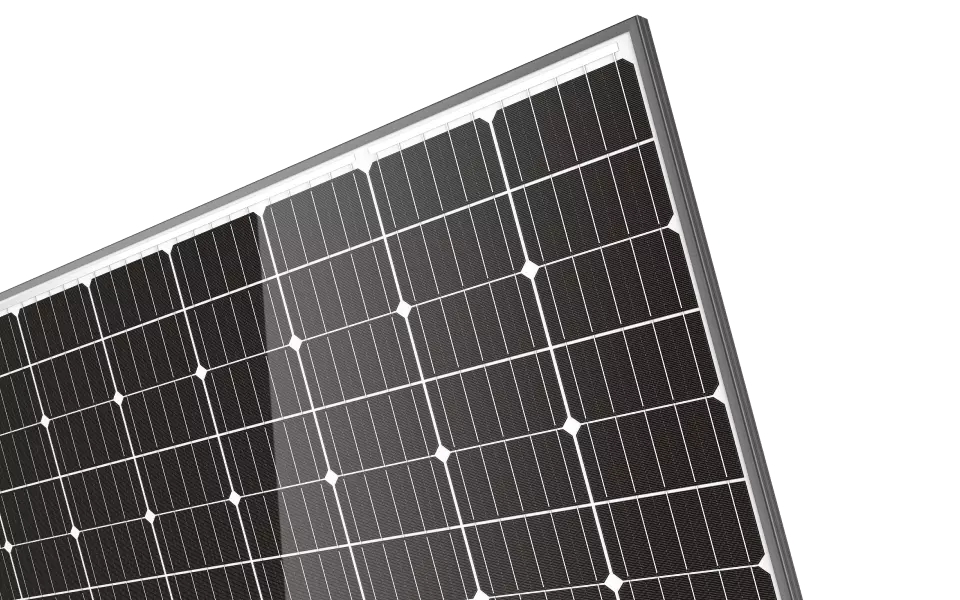

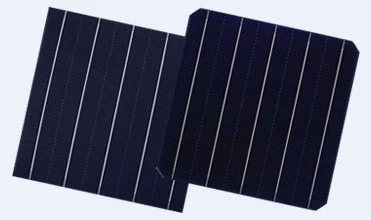

Solar Cells

* A Grade Solar Cells

* High Efficiency PV Cells, Anti-Pid

* Appearance Consistency

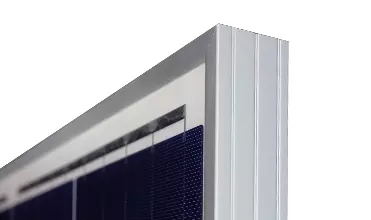

Frame

Stock-size
Silvery

Thickness 30/35/40/50mm
Stress test

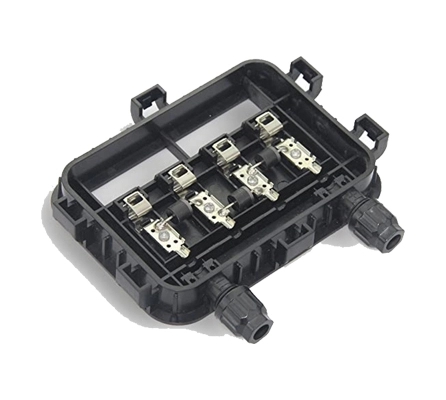

Solar Juction Box

Conventional standalone edition and engineering custom edition
Quality diode ensures module running safety
IP68 protection level
Heat dissipation
Long service life

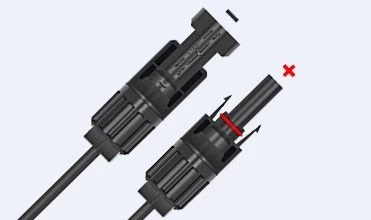

PV Connector

* 4mm2 Qualified cable with PV Connector
* 500N Tensile Strength

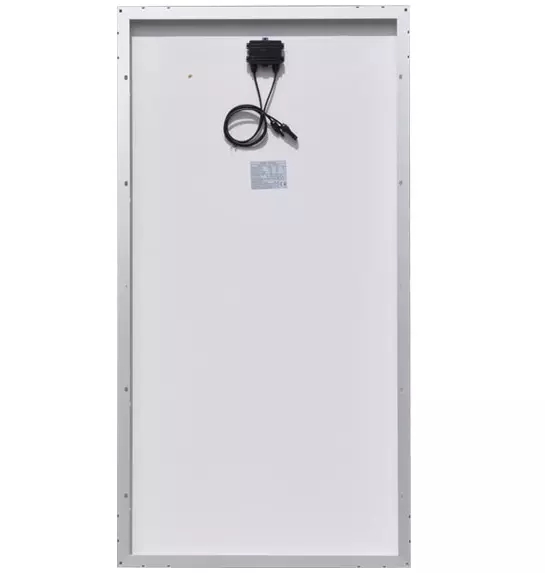

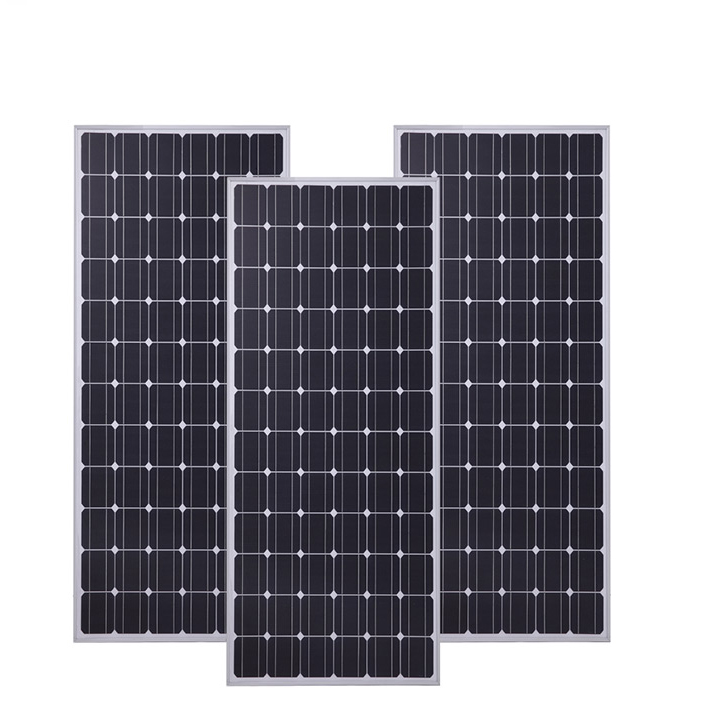

Detailed Image

Our service

1. All your inquiry,we reply whitin 12 Hours.

2: Fast produce and delivery to our world customers.

3: Offer customer the lowest price with good quality.
