| Categories | EDI Water Plant |
|---|---|
| Brand Name: | HJ |
| Model Number: | Customized |
| Certification: | ISO 9001,CE |
| Place of Origin: | Guangdong, China (Mainland) |
| MOQ: | 1 Unit/Units |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per year |
| Delivery Time: | 7-10days after payment arrived |
| Packaging Details: | Carton or Wooden case |
| Name: | EDI Water Plant |
| Capacity: | 0.3-200000LPH |
| Raw Water: | Tap Water |
| Outlet Water's Silica: | 5~20ppb |
| Outlet Water's Resistivity: | 16~18.2MΩ.cm |
| Outlet Water's PH: | 7.0±0.2 |
| High Light: | edi water treatment plant, electrodeionization water treatment |

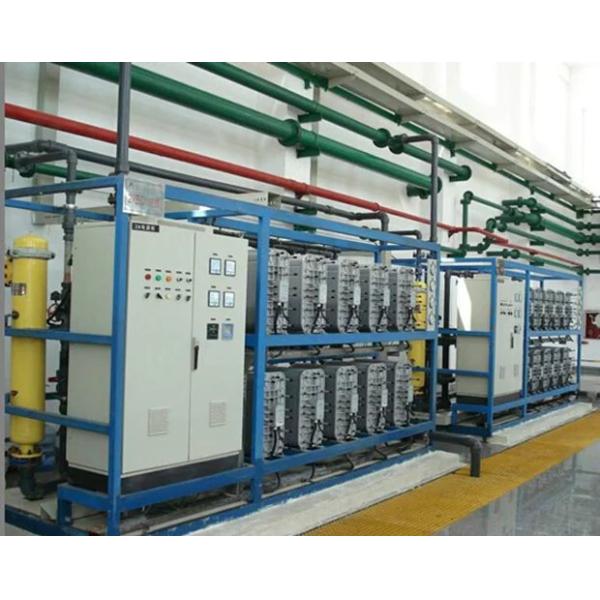

National Electronic Grade Water Grade I Standard High Purity Water EDI Water Plant
EDI technology realizes the organic combination of electrodialysis and ion exchange technology, and retains the advantages of continuous desalination of electrodialysis and deep ion exchange desalination. The amount of ion exchange resin is small, and compared with ordinary ion exchange resin, it can save more than 95% of resin; no need Acid-base regeneration is widely used in the fields of medicine, electronics, electric power and so on.
EDI Features
1) Continuous operation, stable effluent quality
2) Easy to realize automatic control
3) No need for acid and alkali regeneration
4) No downtime due to regeneration
5) Saved water and reclaimed sewage treatment facilities
6) High water production rate (up to 95%)
7) Small footprint
8) Reduce operation and maintenance costs
9) Simple installation, low operating cost,
EDI Technical Parameters
| TEA(With CO2) | ＜25mg/LasCaCO3 | PH | 5-9 |
| Hardness | ＜0.1mg/LasCaCO3 | Silicon | ＜0.5mg/L |
| TOC | ＜0.5mg/L | Residual chlorine | ＜0.05mg/L |
| Fe,Mn,H2s | ＜0.01mg/L | Water inlet pressure | 30100PSI |
Process Flow
|
