| Categories | Door Air Barrier |
|---|---|
| Brand Name: | NANYOO or OEM / ODM |
| Model Number: | FM-35/45/55 |
| Certification: | CE / CB / CCC |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | Negotiated |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 6000 - 8000 units per month |
| Delivery Time: | 30-35 work days |
| Packaging Details: | Carton With Foam Protection |
| Fan Type: | Centrifugal fan |
| Product name: | Centrifugal flow air curtains / Door air barrier |
| Material: | Metal Casing |
| Color: | White color |
| Voltage: | 110V / 220V , 50Hz / 60Hz |
| Operation: | Remote control and buttom control |
| Motor: | copper motor warranty for 5 years |
| Function: | Adjustable air deflector / High efficient motor / Quiet wind wheel |
Centrifugal Flow Door Air Barrier / Air Curtain Widely Used Indoor Saving 90% Energy
Different Size For Your Choose
Sturdy metal housing, smooth and bright apraying for a variety of applications .
Remote control and button control
Centrifugal fan and wheel
Uniform forced air flow
Air speed greater than 14.5m/s
Centrifugal Flow Door Air Barrier - Model N
SPECIFICATION
Voltage/Frequency:220-240V/50Hz, or 110V/60Hz, 110V/50Hz, 220V/60Hz are all available

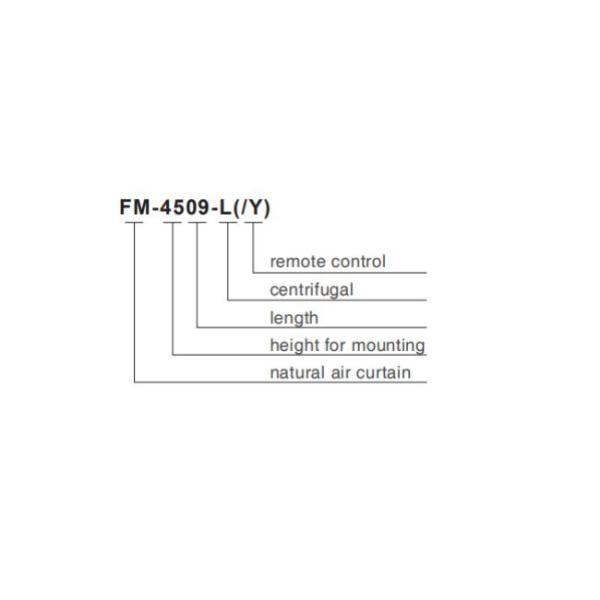

| Model | Diameter of Impeller | Input Power | Air Velocity | Air Volume | Noise | Net Weight | Gross Weight | Unit Size | Carton Size | Mounting Height |
| (mm) | (W) | (m/s) | (m³/h)/CFM | (dB) | (KG) | (KG) | (mm) | (mm) | (m) | |
| FM-3509-L(/Y) | 120 | 230 | 14.5 | 1020/600 | ≤44 | 16.0 | 17.5 | 900×220×212 | 960×290×270 | 3-3.5 |
| FM-3510-L(/Y) | 120 | 230 | 14.5 | 1020/600 | ≤44 | 17.5 | 19.8 | 1000×220×212 | 1060×290×270 | 3-3.5 |
| FM-3512-L(/Y) | 120 | 305 | 14.5 | 1360/800 | ≤45 | 19.0 | 21.0 | 1200×220×212 | 1260×290×270 | 3-3.5 |
| FM-3515-L(/Y) | 120 | 380 | 14.5 | 1700/1000 | ≤48 | 25.0 | 27.5 | 1500×220×212 | 1560×290×270 | 3-3.5 |
| FM-3518-L(/Y) | 120 | 450 | 14.5 | 2040/1200 | ≤51 | 30.0 | 29.5 | 1800×220×212 | 1860×290×270 | 3-3.5 |
| FM-4509-L(/Y) | 120 | 360 | 18 | 1260/741 | ≤46 | 16.5 | 33.5 | 900×220×212 | 960×290×270 | 4-4.5 |
| FM-4510-L(/Y) | 120 | 360 | 18 | 1260/741 | ≤46 | 17.5 | 33.0 | 1000×220×212 | 1060×290×270 | 4-4.5 |
| FM-4512-L(/Y) | 120 | 495 | 18 | 1680/988 | ≤47 | 21.0 | 18.0 | 1200×220×212 | 1260×290×270 | 4-4.5 |
| FM-4515-L(/Y) | 120 | 605 | 18 | 2100/1235 | ≤50 | 26.0 | 19.3 | 1500×220×212 | 1560×290×270 | 4-4.5 |
| FM-4518-L(/Y) | 120 | 750 | 18 | 2520/1482 | ≤53 | 30.5 | 23.0 | 1800×220×212 | 1860×290×270 | 4-4.5 |
| FM-5509-L(/Y) | 120 | 450 | 21 | 1520/894 | ≤52 | 17.5 | 29.5 | 900×220×212 | 960×290×270 | 5-5.5 |
| FM-5510-L(/Y) | 120 | 450 | 21 | 1520/894 | ≤52 | 19.0 | 34.0 | 1000×220×212 | 1060×290×270 | 5-5.5 |
| FM-5512-L(/Y) | 120 | 600 | 21 | 2027/1192 | ≤54 | 21.5 | 19.0 | 1200×220×212 | 1260×290×270 | 5-5.5 |
| FM-5515-L(/Y) | 120 | 750 | 21 | 2534/1490 | ≤55 | 27.0 | 20.8 | 1500×220×212 | 1560×290×270 | 5-5.5 |
| FM-5518-L(/Y) | 120 | 900 | 21 | 3040/1788 | ≤58 | 31.0 | 23.5 | 1800×220×212 | 1860×290×270 | 5-5.5 |
SAVING 90% ENERGY , SAVING YOUR MONEY
Use for Restaurant / Shopping mall
Working principle : SAVING 90% ENERGY
Door Air Curtain also known as Air door , Air Barrier , widely used
in Factories / Shops / Restaurants / Pharmacies
Cold storage / Hotels / Hospitals / Airports / Stations and other
environments and all air-conditioned place
Function Use the blower to generate a powerful airflow, effectively
keep the indoor air clean , prevent air circulating Indoor
and Outdoor air , reduce energy consumption , prevent the intrusion
of dust , insects and harmful gases,
and provide a comfortable working , shopping and leisure
environment.
Company Introduction
Foshan Nanhai Nanyang Electric Appliance& Motor Co., Ltd (NANYOO) was established in 1987,
has specialized in the manufacturing , Marketing and R&D of Air
Curtains , Inline Fans , HRV, Cabinet Fans and Air Purifier for
over 30 years , and become a leading professional science and
technology enterprise.
Especially widely used in the door position of the wind curtain of
public places manufacturers.
NANYOO has passed ISO9001 international quality management system and
ISO14001 environmental management system certification. The
products have passed CCC, CE, CB, RoHS and SAA certification.
