Anodized Water Cooler T4 T5 Large Heat Sink Extrusions

Categories Aluminum Heatsink Extrusion Profiles
Brand Name: HT
Certification: CA ,CE
Place of Origin: China
MOQ: 1 ton
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Delivery Time: 20days
Packaging Details: Ep paper ,kraft ,pallet
product name: Aluminum Heatsink Extrusion Profiles
Alloy: 6063,6061,6005
Material: Aluminum
Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated
Deep process: Milling, Drilling, Bending,Cutting
Temper: T4, T5, T6 ,T66
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

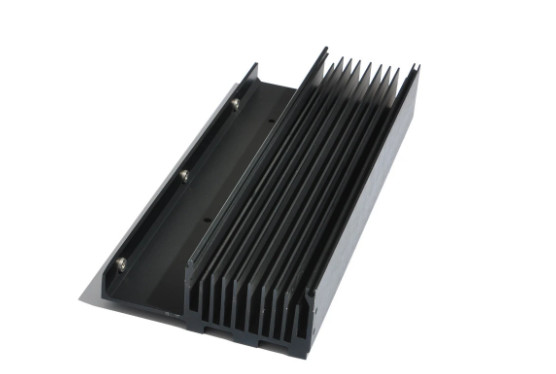

Anodized Water Cooler T4 T5 Large Heat Sink Extrusions

Descrition:


Hentec Industry profile factory is a manufacturer specializing in industrial aluminum profiles. It has more than 16 years of industry experience in the field of aluminum profiles. Here it has top technical talents, high-end sales teams, and good pre-sales and after-sales service. Look forward to working with you !


1. Material: 6063,6061,6060,6005,6005A,etc.

2. Temper: T5 or T6

3. Finish: Mill finish, anodizing,powder coating, electrophoresis, wooden transfer or pvdf/carbon-flouride coated, polishing,brushing,sand blasting

4. Various colors: Silver,bronze,black,gold,blue,grey,champagne,bright,etc.

5. Machining: Cutting,punching,drilling,tapping,milling,bending,welding,CNC etc.

6. Various in styles and sizes:

A). Aluminum alloy bars: Normal material such as 6063,6005,6061,6060, special materials such as 6082 5 etc.

B). Aluminum profiles:

---General aluminum profiles (various shapes of pipes/tubes, angles, T or U shapes etc.)

--- Industrial aluminum profiles ( TV frames, Rim for bicycles and motorcycles, Heat sink profiles, Furniture, Ladder, Guide Rail, Leisure materials, Shower Room, Solar Module Frame, Motor Shell, Pipeline Integration etc.)

--- Construction aluminum profiles (

7. Certification: ISO9001,SGS,ROHS,TUV

8. Strong technical development ability, can provide high intensity and high ductility aluminum profiles, to meet customers' different requirements.

9. OEM service available, customized design available


Material:Aluminum alloy 6063, 6061
Temper:T5, T6
Finish:mill finish, anodized, powder coated, electrophoresis, fluorocarbon spray-painting, wooden grain, polishing, hairy, sand blasting etc.
Max Length:7.2m
Thickness:0.8mm~3.0mm (0.8/1.0/1.2/1.4/1.6/2.0mm)
Standard:ISO9001, ISO14001, SGS
Color:Silver, champagne, bronze, brass, black etc (Per your request).
Packing:Protective Film+ Kraft / EPE Foam (Per your request).
Sample Time:2 weeks
Production Capacity:1000,000 Ton/Year
MOQ:1 TON
Port:Shanghai
Certificate:ISO9001,ISO14001,SGS,OHSAS 18001,USA STANDARD AAMA 2603,AAMA2604,AAMA2605,UK STANDARD BS6496,JAPANESE STANDARD JISH4100,JISH8600,JISH8602


Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...

Specifications:
1. Primary Technical Data
1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest


2) Mechanical property

Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%


Custom High Power LED Aluminum Heat Sink 6063 , 6061 , 6060
Competitive Advantage:
1, We can do the designs according to the customers' requirement
2, We can open customers' own die as per their requirement
3, We can offer you the high quality products & reasonable price
4, We can offer you a good after-sell service
5, We have strong professional design team
6, Prompt delivery, sample order is welcome.
Custom High Power LED Aluminum Heat Sink 6063 , 6061 , 6060
