12.5X Medical 30mm Dental Lab Microscope Surgical Operating

Categories Surgical Operating Microscope
Brand Name: CNOEC, OPTO-EDU
Model Number: A41.1903
Certification: CE,
Place of Origin: China
MOQ: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Delivery Time: 5~20 Days
Packaging Details: Carton Packing, For Export Transportation
Binocular observation: Tilting Head 0°-180° Viewing Angle Adjustable for User
Magnification of binocular: 8X
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Diopter: ±7D
Magnification changer: 3-step magnification change: 0.6X,1X,1.6X
Focal length of objective: Two objectives: F=200 & F=250mm (M45x0.75mm)
Total magnification: 4.8X, 8X, 12.8X, 6X, 10X, 16X
Linear field: 50mm, 30mm, 19mm, 40mm, 24mm, 15mm
Filter: Built-in green and yellow filters
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

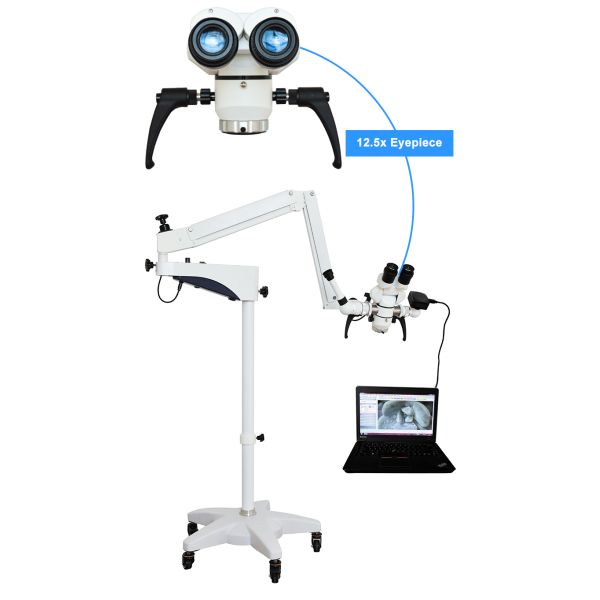

12.5X Medical 30mm Dental Lab Microscope Surgical Operating

A41.1903 Series Operation Microscope Specification
A41.1903 Series Operating Microscopes, is the basic economical high quality series. It use fibre-optic cable for coaxial illumination, with 3 steps zoom body, has total magnification 2.3x~12x, featured with flexible handling and easy operation. It is widely used in hospital for ENT (ear-nose-throat), dental, ophthalmology, gynecology, surgery, orthopedics and etc.

ModelA41.1903
Binocular HeadTilting 0~180°
Main UsageDental, ENT, Ophthalmology, Gynecology
Total MagnificationWith Objective F=200mm: 6.0x, 10x, 16x
With Objective F=250mm: 4.8x, 8.0x, 12.8x
Total Magnification (Optional)With Objective F=300mm: 4.0x, 6.7x, 10.7x
With Objective F=400mm: 3.0x, 5.0x, 8.0x
EyepieceWF12.5x/20mm
Head Magnification8x
Interpupillary Distance50~80mm Adjustable
DiopterBoth Left & Right Eyetube Diopter Adjustable ±7D
Zoom Body3 Steps Zoom: 0.6x,1.0x,1.6x
ObjectiveF=200mm For Ear, Nose, Ophthalmology
F=250mm For Dental
Objective (Optional)F=300mm For Ear, Nose
F=400mm For Throat
FocusingFine Focusing Range 10mm
FilterGreen, Yellow Filters Built-in
Balancing Arm2-Part Arm With Universal Joints, Counterweight Adjustable And Lockable
Stand2-Part Column + Five Star Base With Caster
Illumination SystemCoaxial Illumination, 10W LED, Brightness Adjustable, >40000 Lux
Power SupplyWide Range AC100~240V, DC12V 3A, 36W
A41.1903 Series Operation Microscope Optional Accessories
EyepieceWF10x/23mmA51.1901-1023
ObjectiveF=300mmA52.1901-300
F=400mmA52.1901-400
F=200mm/250mm/300mm Zoom,
Connection Thread:
M47x0.5mm(Zeiss) / M65x0.5mm(Leica), Or
M47x0.75mm / M51x0.75mm / M56x0.75mm, Or
Customized According To Customer Requirements
A52.1902-01
F=200mm/250mm/300mm Zoom, With Splash Cover
Connection Thread:
M47x0.5mm(Zeiss) / M65x0.5mm(Leica), Or
M47x0.75mm / M51x0.75mm / M56x0.75mm, Or
Customized According To Customer Requirements
A52.1902-02
Adapter50:50 BeamsplitterA55.1906
C-Mount 0.3x For 1/3" Digital CameraA55.1903
SLR Camera Adapter For NIKON DSLR Or CANON SLRA55.1904
HeadTeaching Head, DemonstratorA55.1910
Tiltable Head,
Inclinable Angle: 0-180°,
Eyepiece 12.5X/20mm, Interpupillarry Distance 50~80mm, Magnification 8x, F=160mm, Distance of Center 22mm. Optional Eyepiece: 10x/23mm
A53.1903-01
Tiltable Head, With PD Adjust Knob
Inclinable Angle: 0-180°,
Eyepiece 12.5X/20mm, Interpupillarry Distance 50~80mm, Magnification 8x, F=160mm, Distance of Center 22mm. Optional Eyepiece: 10x/23mm
A53.1903-02
MountTable Mount ClampA54.1901-T
Wall Mount BracketA54.1901-W
Monitor MountMonitor Mount: 1 Fix Arm And 1 Gas Spring Arm With Tension Adjustable. Band Clamp. Fit 15-27" Screen. VESA Standard 75x75xmm & 100x100mm. Load Capacity 0~8 Kgs, Swivel 180°, Tilt -80°~+90°, Rotation 360°A54.1910-112B
Monitor Mount: 1 Fix Arm And 1 Mechanic Spring Arm With Tension Adjustable. Band Clamp. Fit 15-27" Screen. VESA Standard 75x75xmm & 100x100mm. Load Capacity 0~8 Kgs, Swivel 180°, Tilt -80°~+90°, Rotation 360°A54.1910-312B
