ISO13485 6 Km/H Lightweight Electric Folding Wheelchair

Categories Portable Foldable Electric Wheelchair
Brand Name: Pingfang
Model Number: DYN30F (D07F)
Certification: CE ISO13485
Place of Origin: Changshu Jiangsu
MOQ: 10 PCS
Price: Negotiated
Payment Terms: L/C, T/T
Supply Ability: 5000 pcs / Month
Delivery Time: 8 work days
Packaging Details: 1 pc packaged into 1 carton (Size: 630*360*770 mm)
Type: Electric Wheelchair
Function: Walking Helper For The Disabled or Elder People
Material: Aluminum Alloy
Motor: Brushless Motor 150W*2
Load Capacity: 100 KG / 220.46 lb
Frame N.W: 18 KG; 39.68 lb
Applicable People: Disabled or Elderly
Maximum Speed: 6km/h
H.S Code: 8713900000
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

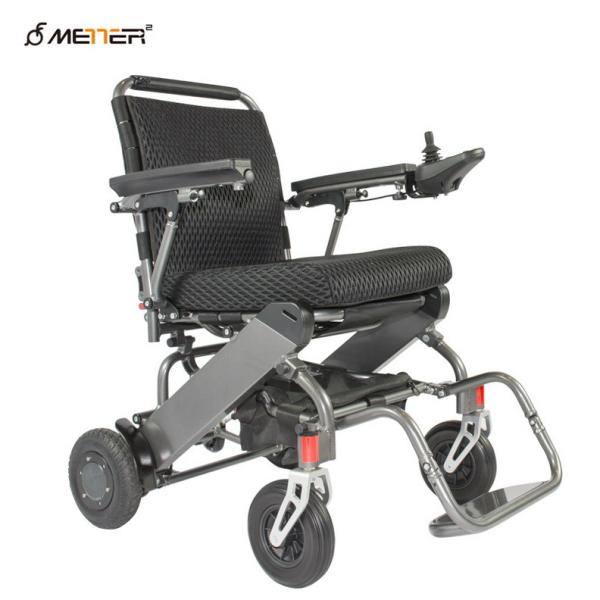

ISO13485 6 Km/H Lightweight Electric Folding Wheelchair

Strong Frame, Patented Design, Foldable Electric Power Wheelchair

Model: DYN30F (D07F)


Description

Electric wheelchair users are the elderly and disabled.Especially the elderly with the growth of age, the body gradually degradation of various functions, legs and feet are not flexible, walking stability is poor, using the hands to push the wheelchair or need family members to carry out, they have been powerless.Therefore, choose a high-quality electric wheelchair can be driven their own, to increase the range of activities, improve the ability to take care of themselves.No longer dependent on the family for implementation.


The product specifications you cared most

Net Weight with 1 standard battery pack20.5kg (45 lbs)
Max Speed6.5 km/hr (4 miles/hr)
Maximum Seat Capacity100kg (220 lbs)
Seat Width45cm (17.7”) between armrests
Seat Depth42cm (16.5”)
Seat Height From Ground (Front)49cm (19.3”)
Seat Height From Ground (Back)47cm (18.5”)
Turning Radius75cm (29.5”)
Folded Size L X H X W30cm x 71cm x 60cm (11.8” X 28” X 23.6”)
Opened Size91cm x 88.5cm x 59cm (35.8” X 34.8” X 23.3”)
Packing Size35cm x 78cm x 64cm (13.8” X 30.7” X 25.2”)
Max Distance / Full Charge~15km with 1 battery (15% less in cold weather)
~30km with Optional 2nd batttery
Charge Time (for 1 battery)4 hours
Slope Capability13˚
Battery TypeSoft Pack Polymer Lithium Ion Battery
Motor TypeLatest Brushless Motor
Motor Power150W x 2
Front Wheel7”
Rear Wheel8”
Frame MaterialQuality Aluminium Alloy
Rear Tire TypeRigid PU tyre
ArmrestRaisable
FootrestFoldable
BackrestFoldable

*Error and uncertainty in measurement


Product Advantage

1. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.

2. Foldable footrest - Convenient for Up and down the wheelchair.

3. Foldable frame - Convenient for transportation and stock.

4. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.

5. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.

6. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.

7. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.


Wheelchair Details

Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.


Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.


Thank you for visiting our website, further questions please feel free to contact Hathaway Gu. I will do our best to support you all the time.
Pls feel free to contact with us!
