Brand Name: | YUSHUNLI |
Model Number: | YSVC-1200 |
Certification: | CE ISO |
Place of Origin: | China Dongguan |
MOQ: | 1set |
Price: | USD1000~40000 |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 80Sets/Month |
Delivery Time: | 10-15work days |
Packaging Details: | plywooden case |

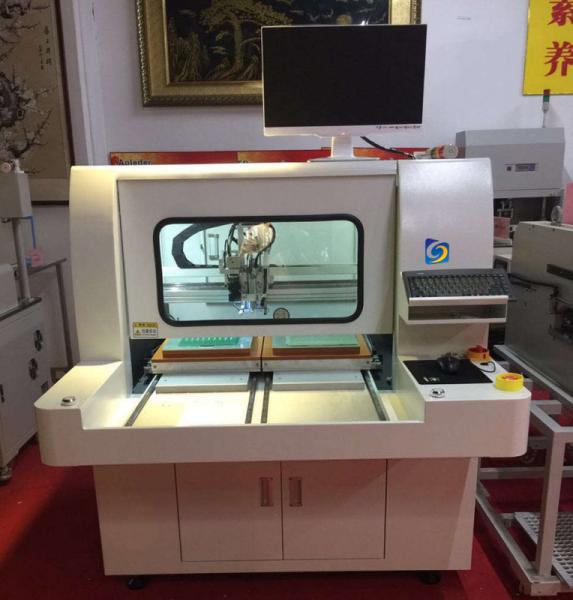

Name: | 4-Axis Dual Station PCB Routing Machine |
Warranty: | 1 Year |
Condition: | New |
Spindle motor speed: | 60000rpm/min |
Dimensions(W*D*H): | 1220mm*1450mm*1420mm |
Weight: | 550KG |
Positioning repeatability: | 0.001mm |
PCB size (max): | 322mm*322mm |
PCB thick (max): | 5mm |
Power: | 400W |
Cutting speed(max.): | 100mm/s |
Axis precision: | 0.001mm |
Cutting precision: | 0.1mm |
Company Info. |
YUSH Electronic Technology Co.,Ltd |
Verified Supplier |
View Contact Details |
Product List |
SPINDLE | KAVO spindle |
CCD | Sony 520 line industrial cameras |
LENS | Computar EX2C |
Screw | TBI Precision ground ball screw imports |
Guide | HIWIN widening Imported linear guide rail |
MOTOR | JiaBao LCF Series |
I/O CONTRONL CARD | HFC PCI-9074 |
DRIVER CONTRONL CARD | HFC PCI-9074 |
I/O CARD | PCI-9074-64pcs/-38pcs |
Static cleanup | STATIC-ST401A Series |
Computer | (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G) |
Machine interface | AOC LCD17",Logitech mouse |
Control system | Windows XP Professional (Service3,v.3244) |
Operation GUI | Chinese Windows XP |
Program edit | Inline |
Vision system | CCD AOTU offset |
Control system | F 1.0.2 version |
Dimensions(W*D*H) | 1220mm*1450mm*1420mm |
Weight | 550KG |
Height offset | 60~110mm |
Motor type | JiaBao series |
Positioning repeatability | 0.001mm |
Axis working area(max) | 680mm*360mm*50mm |
PCB fixation | standard,specialization |
PCB loading/unloading | manual |
PCB size (max) | 322mm*322mm |
PCB thick (max) | 5mm |
Rigidity fixturing | standard |
Fixturing fixation | machinery |
Power | 400W |
Spindle | 60000rpm/min |
Protect | self/wind cooling |
Cutting speed(max.) | 100mm/s |
Driving speed(max.) | 3000mm/s |
Precision of cutting | 0.01mm |
Vacuum power | 2.2KW AC 380V |
Vacuum | plumb |
Air supply | 2~5KG/cm2 |
Program edit | Inline |
Function edit | Line,arc,circula,U-curve |
Program storage | HDD |
Vision system | SONE colour CCD |
milling cutter offset | AUTO |
Vacuum setup | AUTO |
Iindicator | Iindicator Machine state |
tool check | Automatic detection tool life, the use of time testing |
Motor protect | Have overheating, overload, low voltage protection function |
motor over loading check | Have Overload, the line is normal, low voltage protection function |
Tool usable time | Automatic detection tool life |
Data statistic | Separate board model, separating count, diverse counting methods |
Error record | Software automatically records all alarms memory of machines |
Axis precision | 0.001mm |
Cutting precision | 0.1mm |
Working area protect | With four sealed protection |
Door sensor | Front and rear safety door micro-switch sensor (optional) |
![]() |
