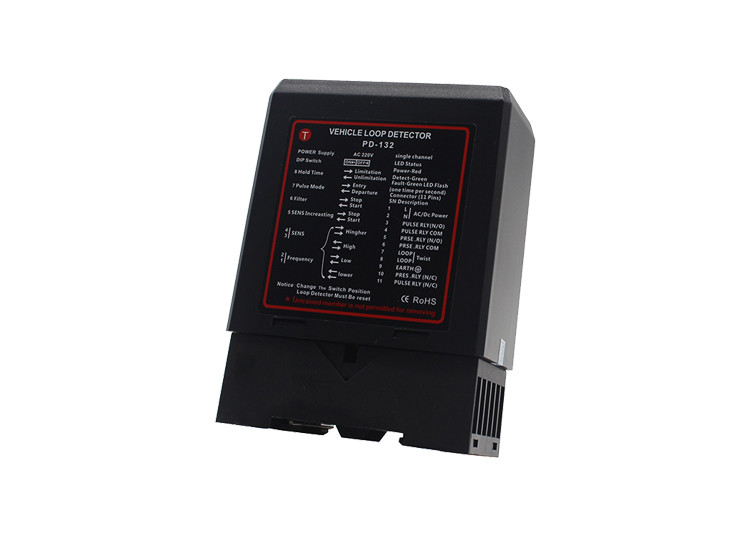

Access Control 4.5VA PD132 Inductive Single Loop Detector 20kHz

PD132 Inductive Vehicle Single Loop Detector for Car Parking System Automatic opener barrier gate

Vehicle Single Loop Detector Specs:

1. Supply voltage: 220V AC , 110V AC, 24V DC/AC, 12V DC/AC
2. Voltage tolerance AC: +10% / -15%
3. Voltage tolerance DC: ±15%
4. Power Consumption: 4.5VA
5. Output relays: 240V/5A
6. Operating temperature: -20°C to +65°C
7. Storage temperature: -40°C to +85°C
8. Frequency range: 20kHz to 170 kHz
9. Reaction time: 10ms
10. Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes
11. Sensitivity: Adjustable in 4 increments
12. Loop inductance: Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH
13. Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter
14. Size of Housing: 78x40x108 mm (L x W x H)

Application

Automatic Gate
Traffic Light System
Gate Drive Mechanisms
Operating Barriers
Parking Guidance System
Activating Card Dispensers in Parking Lots

Technical parameters of Loop Detector

Main Features

♦ Industrial engineering design concept
♦ Standard industrial guide installation
♦ Strong anti-jamming ability and stability
♦ Variety of output interface adapted to different scene
♦ Variety of shape choice meet differentiation demand
♦ High temperature stability
♦ Environment drift automatic compensation function
♦ Coil automatic fault detection function

♦ When the DIP switch is on position or changing the presence output time, Self-detection would be done

♦ ABS align to the pillar which can combine with each other compactly
♦ Presence output time can be adjustable
♦ Work mode can be set by the DIP switch
♦ Pulse output or permanent output can be adjustable

Work indicator

Detector will enter into the self-calibration condition with the green LED flash, red LED extinguish once on power, this procession will last 1 second. .the vehicle should not on the loops within the self-calibration. The green LED will not flash, he red LED extinguish after self-calibration. When the vehicle past over the loop ,the red LED on.
