0.5um Resolution Scale Vms Measuring Instrument

Manual Inspection Systems Video Measuring Systems with 0.5 μm Resolution Scale

Product Introduction

The Video Measuring Systems is efficient 2D measuring instrument integrating metals, mold and electronics. Easson's measurement machine all use the special version high resolution AS series Absolute linear scale for the machine measuring standard.

Working Principle
Vision measuring systems is based on machine vision, such as automatic edge extraction, automatic alignment, automatic focus, measurement synthesis, image synthesis and other artificial intelligence technologies. It has the functions of automatic measurement of point where to go, automatic measurement of CNC position, and automatic learning of batch measurement. Image map target guidance, full-field eagle-eye zoom and other excellent functions.

Meanwhile, based on the auto-focus process under the precise control of machine vision and micron, it can meet the needs of auxiliary measurement under clear images, and touch probe can also be added to complete coordinate measurement. Excellent software performance that supports spatial coordinate rotation, batch measurement and SPC result classification can be carried out when workpieces are randomly placed or fixtures are used.

Technical Specification

Characterisitics

1. Three axis of the Absolute Linear Encoder is developed by Easson, with a resolution of up to 0.5 microns
2. High precision Manual optical lens.
3. High resolution SONY CMOS sensor image processing, make the image is clear and without smearing.
4. The surface light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED for long service life.
5. Independently developed powerful multi function Easson 2D measurement software, the measurement results can be output to DXF, Word, Excel, PDF and AutoCAD.

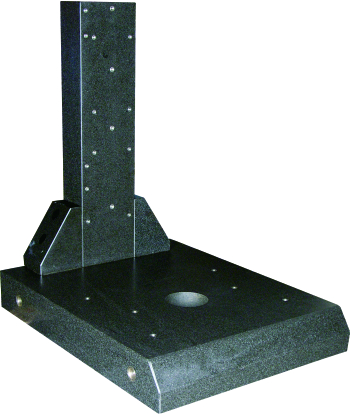

6. Base and column are made of high precision 00 grade granite structure, which is stable and reliable.

Product Details

Easson video measuring instrument is fully developed and produced independently. All key parts of the vision measurement machine, such as linear encoder scale, lens, motion control system, 2D measurement software, etc. are independently developed and produced by our company.

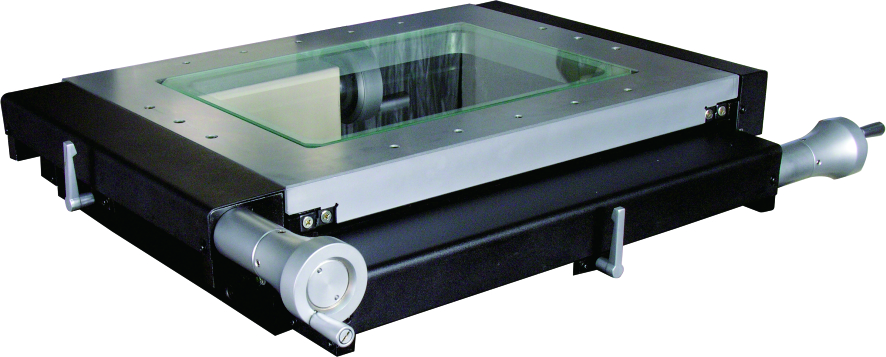

VMM uses high precision marble as the base of the machine body, coupled with a high-precision table. The XYZ axis is equipped with an optical linear scale measurement system with a resolution of 0.5 micron, measurement accuracy is (3 + L / 200) μm.

2D / 3D Multiple Measurement

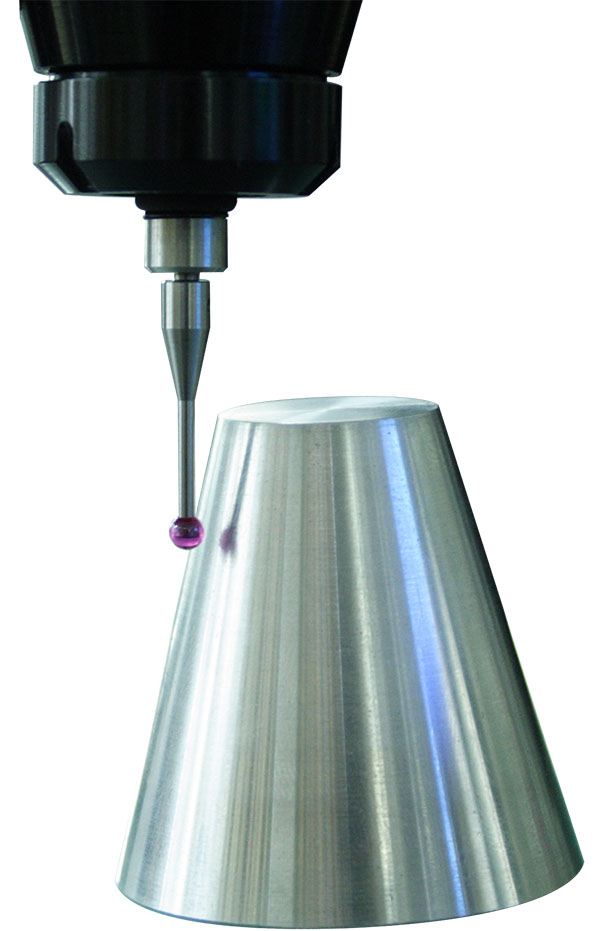

Optional accessory high-precision touch probe for 2D / 3D composite measurement:


Height measurement, ball measurement, inclined surface measurement, thickness measurement, flatness measurement, squareness measurement and other three-coordinate measurement functions etc.

FAQs

1. Who we are?

Easson is a manufacturer in design and manufacturing precision metrology equipment, Video Measuring Systems, Optical Profile Projector, Digital Readout Unit(Counter), Linear encoder glass scale.

2. How can we guarantee quality?
Easson are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.

3. How can the machine achieve the high accuracy measurement?

• High resolution absolute linear encoder 0.01 microm
• F3 high precision closed loop auto zoom lens with coaxial light.
• High resolution SONY CMOS sensor of image processor CCD
• Built in 21 orders volumetric compensation
• High precision marble base and pillar, to ensure high stability and accuracy

4. Warranty:
All the products we provide 13 months( from the date of shipment )

5. Delivery:

Normally have stock for the VMM, if out of stock, delivery time is 10 to 15 days.

6. Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.

7. Payment:
Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.

Easson was established since 1995.It is a high-tech enterprise specializing in design and manufacturing of precision measuring equipment, obtained more than 20 national invention and utility model patents. Our product field in DRO systems, precision optical profile projectors, video measuring machine and etc..

Easson's factory building is specifically design and built for the manufacturing of precision measuring equipment, has four Laser interferometers for being the company's length measurement standard and R&D.

Easson is one of the few companies in the industry that has its own high-precision grating master which use own fully-developed grating master lithography equipment, produce the absolute linear encoder and high accuracy CNC linear encoder.

Our quality management system has been assessed and registered by National Quality Assurance Ltd.(NQA) against the provision of ISO 9001:2015.

Strong Technical Capabilities And Scientific Research Resources

Over the years, the company has established a very close and effective cooperative relationship with scientific research institutions such as Xi'an Jiaotong University and Jilin University, taking advantage of the abundant talents and theoretical advantages of university scientific research institutions, combined with the company's long-term accumulated technology and practical experience in this industry , so that we have created many products that are leading the domestic industry.

In addition, the company actively participates in the scientific research and industrialization projects issued by the state and Zhuhai City.

For example, in 2011, the company participated in the "High-end CNC Machine Tools and Basic Equipment" led by Xi'an Jiaotong University and issued by the Ministry of Industry and Information Technology of China "Science and Technology Major Project. And combined with Tianjin University, Hefei University of Technology, Chinese Academy of Metrology... and other units jointly developed.

The company's AS-40 series grating ruler is one of the results of this project, which is industrialized by our company. And our company's EC-2 Pseudo-random absolute coding is one of the project achievements jointly developed by our company and Jilin University.

Actively participate in industry standard setting

Easson Measurement Technology Ltd. is one of the core members of the Digital Display Sub-Standard Committee of the National Measuring Tool and Measuring Instrument Standardization Technical Committee of China.

For a long time, it has actively participated in the formulation of various standards in the industry, and introduced the most advanced international standards in the industry. standards, and work together with peers to promote the development of the industry.

The company participated in the drafting of many national and industry standards, such as industry standard JB/T 10080.1-2011 "Graster Digital Display Instrument", JB/T10080.2-2011 "Graster Linear Displacement Sensor", etc. JB/T 11505-2012 "Displacement Sensor" Encoder CPE-Bus bidirectional serial communication protocol specification".....
