| Categories | Temperature and Humidity Sensor |
|---|---|

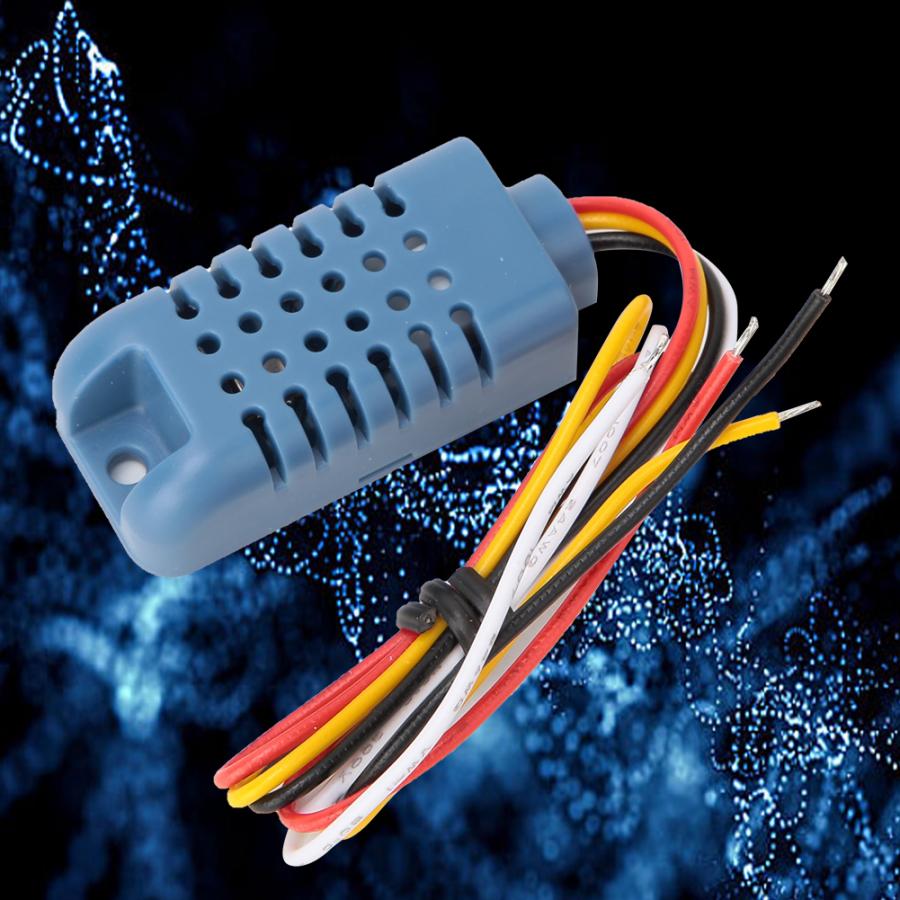

| Model Number: | GS-AM2301A |
| Certification: | CE , Rohs |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Payment Terms: | Paypal ,Western Union or T/T |
| Supply Ability: | 10000pcs/month |
| Delivery Time: | 3-5 working days for sample order or according to your order quantity |
| Packaging Details: | Anti-Static Bag |
| Usage: | Industrial |
| Typical Accuracy: | ±0.5 °C |
| Operating Range: | -40~80°C |
| Interface: | 1-Wire |
| Supply Voltage: | 3.3-5.5V |
| Humi Response Time: | 5s |
| Temp Response Time: | 5s |
Overview :
AM1011A analog temperature and humidity module is a temperature and humidity sensor with calibrated analog signal output. It adopts analog voltage output mode and has the characteristics of high accuracy, high reliability, good consistency and temperature compensation, ensuring good long-term stability. It is especially suitable for enterprises with demanding requirements on quality and cost.
Features :
• Excellent long-term stability
• Low power consumption, small size, high cost performance
• Complete interchange
• Analog voltage output
• Excellent long-term stability
• Low power consumption, small size, high cost performance
Specification :
| Typical accuracy (% RH) | ± 3 |
| Operating range (% RH) | 0 to 99.9 |
| Humi response time(s) | 5 |
| Typical accuracy (°C) | ± 0.5 |
| Operating range (°C) | -40~80 |
| Temp response time(s) | 5 |
| Interface | 0~3VDC/10KNT ± 1% |
| Supply voltage(V) | 4.75~5.25 |
| Size:L*W*H (mm) | 44.4*20*12.9 |
Application Range :
HVAC, dehumidifier, testing and testing equipment, consumer goods,
automotive, automatic control, data recorder, weather station, home
appliances, medical and other related humidity control, humidity
measurement and control.
|
