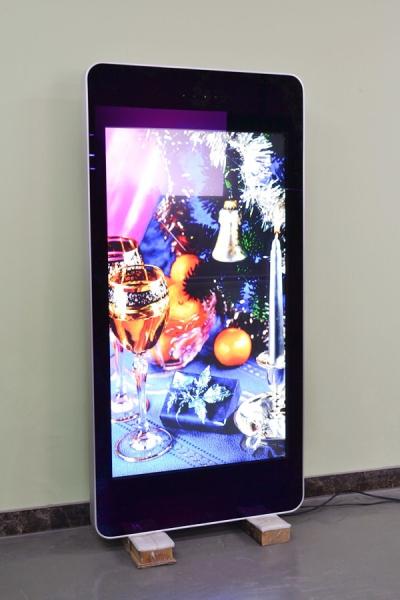

Sunlight Viewable 55" 430W Outdoor LCD Advertising Display

Sunlight Viewable 55" 430W Outdoor LCD Advertising Display

Adopt direct type high bright LED array backlight, LCD brightness can reach to 1000-3000 nits (customized), Built-in light sensor, the screen brightness can be adjusted automatically according to the ambient brightness, energy saving.

System functions:
Android hardware options:
CPU: RK3288 / RK3399
RAM+ROM: 2G+8G/4G+32G
Operating system: Android 7.1
Interface: RS232.4,TTL serial port.1, USB3.01, USB2.05
Network support: 3G/4G/Wi-Fi/RJ45 Ethernet/Bluetooth /GPS

Product Features:
1. Automatic brightness control: automatically adjust the brightness of the screen according to the changes of outdoor environment light, bright and visible under the sunlight during the day, soft and gorgeous at night, energy saving and environmental friendly.
2. Intelligent temperature control: According to the change of internal environment temperature, intelligent start fans or air conditioner to dissipate heat. When the temperature reaches above 30℃, the fans or air conditioner will start to dissipate heat automatically. When the temperature is below 20℃, the cooling fans or air conditioner will be automatically stopped.
3. High temperature protection function: When casing internal ambient temperature is above 60℃, the protection function will automatically start, automatically reducing the brightness to around 500 nits; When the internal ambient temperature is below 40℃, the brightness will be automatically restored to the appropriate viewing brightness.
4. Low-temperature protection: When the internal environment temperature is lower than -10℃, the heating function will be started automatically; When the internal temperature is above 5℃, the heating function will be stopped automatically. (This option is suitable for harsh outdoor working environment below -20℃)
5, intelligent remote monitoring function: through RS232 communication interface and network connection, real-time device security and working status data upload, remote monitoring of the main parts of the machine is working properly, timely find the device security or any failure, reduce maintenance time and cost, improve maintenance efficiency.

Outdoor high bright wall mount type
1. The original industrial grade screen supports 7 x 24 hours horizontal and vertical screens for long-term stable and continuous operation with a service life of no less than 50,000 hours;
2. Provide 2K/4K multi-specification LCD screen options: 21.5 ", 32 ", 43 ", 49 ", 55 ", 65 ", 75 ", 86 ";
3. The whole series adopts straight down type high brightness LED backlight, the screen brightness can reach up to 3000 nits, with bright colors and beautiful vision;
4. Diversified appearance design, IP54/IP65 protection grade, outdoor anti-glare or anti-reflection and anti-humidity coating treatment for dampproof;
5. Have protection measures such as explosion protection, lightning protection and electricity leakage protection;
6. Support built-in PC, stand-alone/Android network version playback function; Support Ethernet, Wi-Fi, 3G/4G network transmission;
7. Support 10 points PCAP touch interaction, face recognition, document recognition, fingerprint recognition, 2D code scanning, multi-mode payment management and other functions.

Specification Of Outdoor LCD Digital Signage

Intelligent diurnal mode
The day is gorgeous and the night is not dazzling
Day: Still clear under the sunlight
Night: the picture is automatically adjusted by light sensor, soft and not dazzling

Intelligent projective capacitive touch
High quality intelligent projective capacitive touch panel, smooth mirror, high precision and touch sensitivity, fast speed, no drift phenomenon, ultra-high light transmittance, waterproof, dustproof, anti-storm ability, can touch operation under strong light.

Application Of Outdoor LCD Digital Signage
1. Public Places: Subway, Airport, Bus Stop, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.

As early as 2009, our team developed high brightness LED backlight technologies on edge type as well as array direct type. In 2016, we further improved our LED backlight technologies. Now it is even thinner and lighter, more reliability and consumes less power compared with first generation LED high bright backlight. Giving our products a significant longer lifespan and far fewer overheat issues.

Currently our products come in a variety of sizes (3.5" up to 86"), which are included in both our rugged industrial series as well as commercial series. The brightness of monitors can also be adjusted manually by POT or automatically by light sensor according to the ambient, the weather, sunlight and the night time mode. The extended operating temperature of our rugged display could be from -30℃ to +55℃, suitable for most outdoor LCD display application needs, media advertising displays and MIL-STD projects, such as avionics, marine, military vehicle, helicopter, train, bus shelter/station, airport, outdoor digital information display, chain store and shopping mall digital signage, ATM, kiosk, gas station, casino, GPS, bank, hospital, restaurant, theater, park, tourist attractions, street furniture, school and Gov. Departments.

We are more than capable of meeting any custom design needs you might have to our open frame high brightness LCD modules, and furthermore we can provide you with total solution packages for your commercial outdoor/indoor LCD display or rugged IP65 industrial grade and further IP66 MIL-STD grade needs.

We are looking forward to cooperating with display system integrators, end-users and rugged LCD monitor manufacturers/integrators from around the world.
