| Unidirectional repeatability Use standard 50mm probe at 600mm/min speed: | 1um (2σ) |
| Stylus trigger force Use standard 50mm probe: | XY plane 0.4 - 0.8N/Z direction 4.0N |
| Trigger protection trip: | XY plane +/-15°/Z direction 6.35mm |
| Signal transmission method: | Optical transmission |
| Operating range: | 5m |
| Weight without shank (including batteries): | 280g |
| Sealing: | IP68 |
| Operating temperature: | 0-60℃ |
Stylus Accessories For CNC Machine Tool Optical Transmission Touch Probe
Intruduction

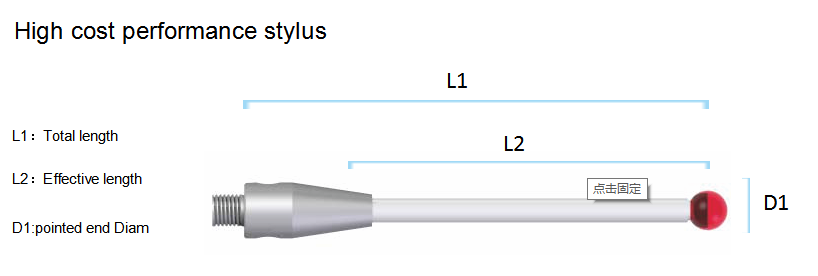

A stylus is the part of the measuring system which makes contact with the component, causing the probe's mechanism to displace. The generated signal enables a measurement to be taken. The feature to be inspected dictates the type and size of stylus used. In all cases, however, maximum rigidity of the stylus and perfect sphericity of the tip are vital.
Successful gauging depends very much on the ability of the probe's stylus to access a feature and then maintain accuracy at the point of contact. At Silvercnc, we have expertise in probe and stylus design to develop a comprehensive range of CMM and machine tool styli to offer you the greatest possible precision
Product parameters

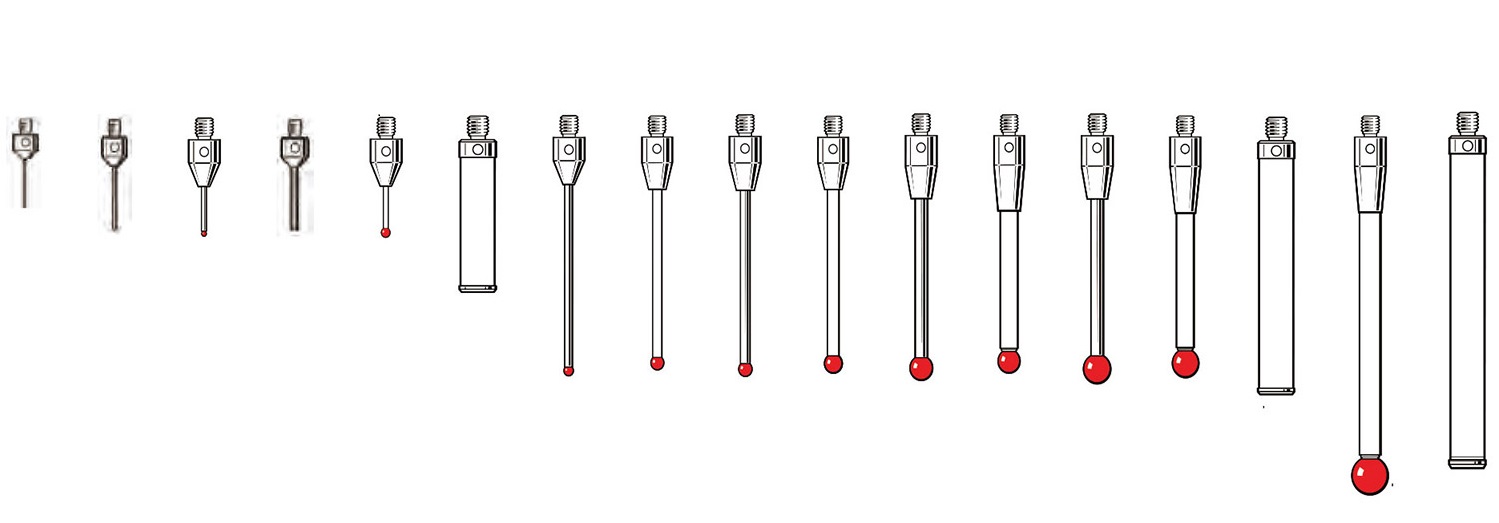

| pointed end material | Tungsten steel | Tungsten steel | Ruby | Tungsten steel | Ruby | Ceramic | Ruby | Ruby | Ruby | Ruby | Ruby | Ruby | Ruby | Ruby | Ceramic | Ruby | Ceramic |
| pointed end Diam D1/mm | 0.5 | 1.0 | 1.0 | 2.0 | 2.0 | 7.4 | 2.0 | 3.0 | 3.0 | 4.0 | 5.0 | 5.0 | 6.0 | 6.0 | 7.4 | 6.0 | 7.4 |
| styli material | Tungsten steel | Tungsten steel | Tungsten steel | Tungsten steel | Ceramic | Ceramic | Tungsten steel | Ceramic | Tungsten steel | Ceramic | Tungsten steel | Ceramic | Tungsten steel | Ceramic | Ceramic | Ceramic | Ceramic |
| Total length L1/mm | 10.0 | 20.0 | 20.0 | 20.0 | 30.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 100.0 | 100.0 |
| Effective length L2/mm | 5.0 | 10.0 | 10.0 | 10.0 | 10.0 | 30.0 | 40.0 | 40.0 | 40.0 | 40.0 | 35.0 | 35.0 | 35.0 | 35.0 | 50.0 | 85.0 | 100.0 |

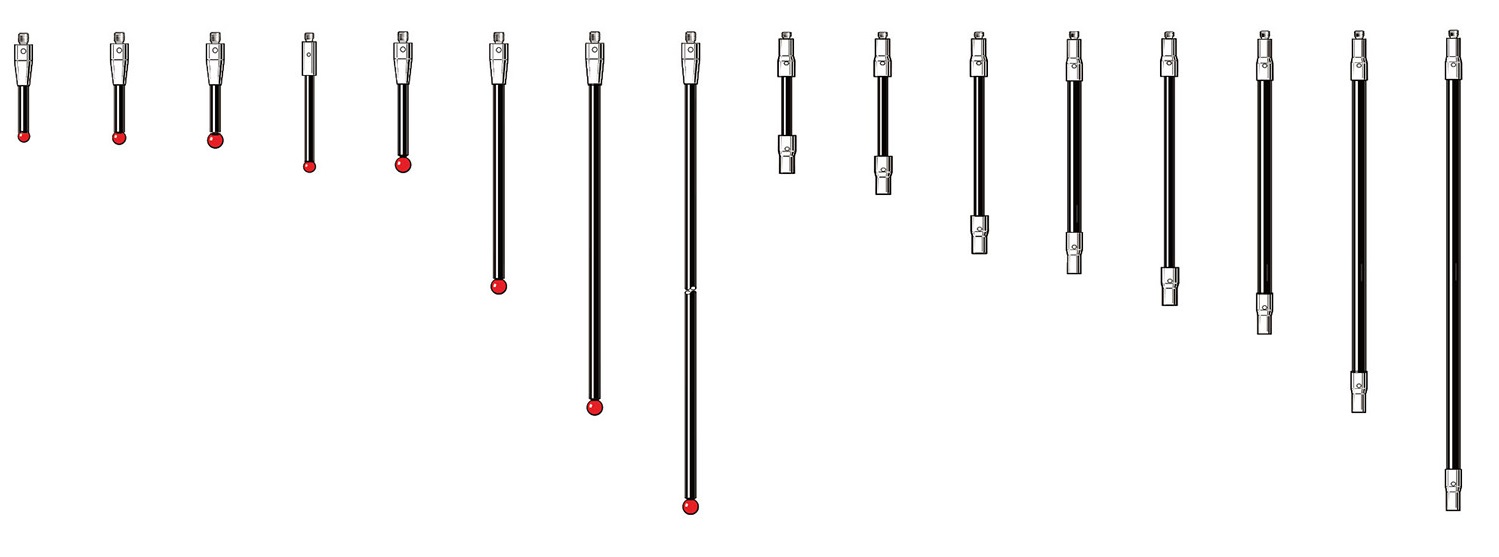

| pointed end material | Ruby | Ruby | Ruby | Ruby | Ruby | Ruby | Ruby | Ruby | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre |
| pointed end Diam D1/mm | 4.0 | 5.0 | 6.0 | 4.0 | 6.0 | 6.0 | 6.0 | 6.0 | 3.0 | 3.0 | 3.0 | 6.0 | 3.0 | 6.0 | 6.0 | 6.0 |
| styli material | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre | carbon fibre |
| Total length L1/mm | 30.0 | 30.0 | 30.0 | 50.0 | 50.0 | 100.0 | 150.0 | 200.0 | 40.0 | 50.0 | 70.0 | 80.0 | 90.0 | 100.0 | 150.0 | 200.0 |
| Effective length L2/mm | 25.0 | 25.0 | 25.0 | 40.0 | 40.0 | 85.0 | 135.0 | 185.0 | 40.0 | 50.0 | 70.0 | 80.0 | 90.0 | 100.0 | 150.0 | 200.0 |

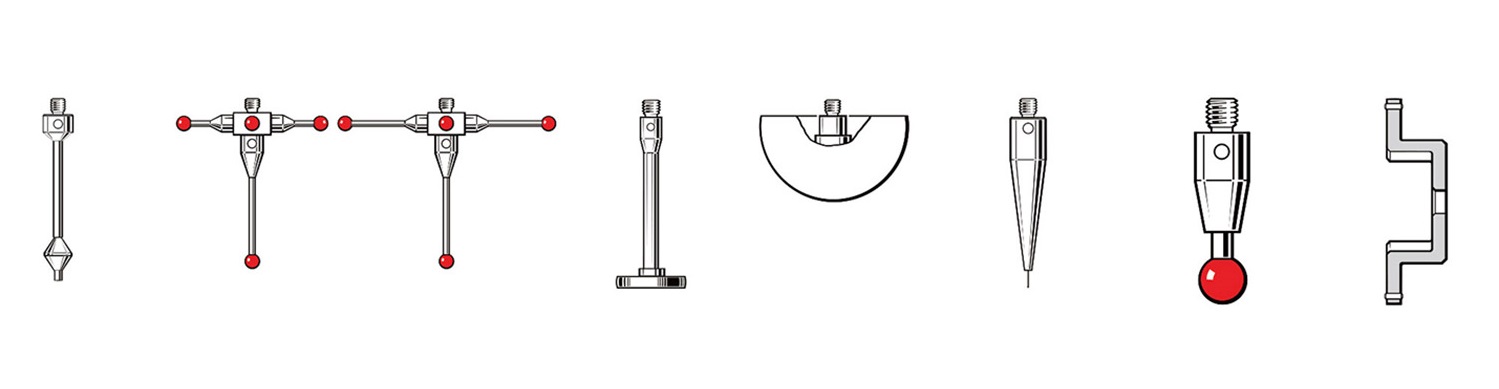

| Spindle stylus | 18mm Star shaped | 30mm Star shaped | Disk type stylus | Hollow balls tylus | Micro ruby | Tungsten carbide | Curved stylus |
|
