Yuken Type Hydraulic Solenoid Valve Coil DSG-03 26mm 12V 24V DC

Yuken Type Hydraulic Solenoid Valve Coil DSG-03 26mm 12V 24V DC

This is a hydraulic solenoid coil for Yuken DSG-03 Series Hydraulic Directional Control Solenoid Valves, coil insulation class is H, coil connector type is DIN 43650 Form A, 24V DC, 12V DC voltages, 40W power, other voltages and powers can be customized.

Product features of solenoid valve coil:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.

Technical data of solenoid valve coil:

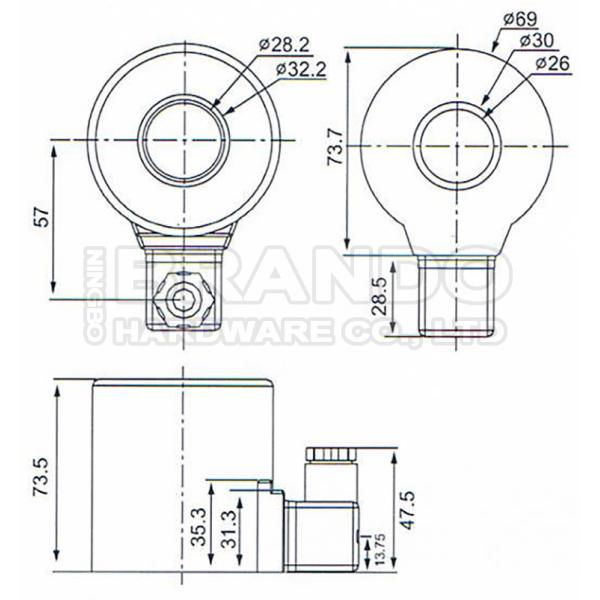

Main dimension of solenoid valve coil:

Brando factory production of solenoid valve coil:

More Solenoid Valve Coil for you to choose:

*Connector Options: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C, Wire Leads, DEUTSCH, AMP, KOSTAL .......

*Application Options: Pneumatic Solenoid Valve Coil, Refrigeration Solenoid Valve Coil, Pulse Solenoid Valve Coil, Hydraulic Solenoid Valve Coil, Solenoid Coil For Excavator / Truck / Auto, Injector Rail Solenoid Coil, Solenoid Coil For Home Appliances, LPG CNG Solenoid Coil.........

*Hole Diameter Options: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
