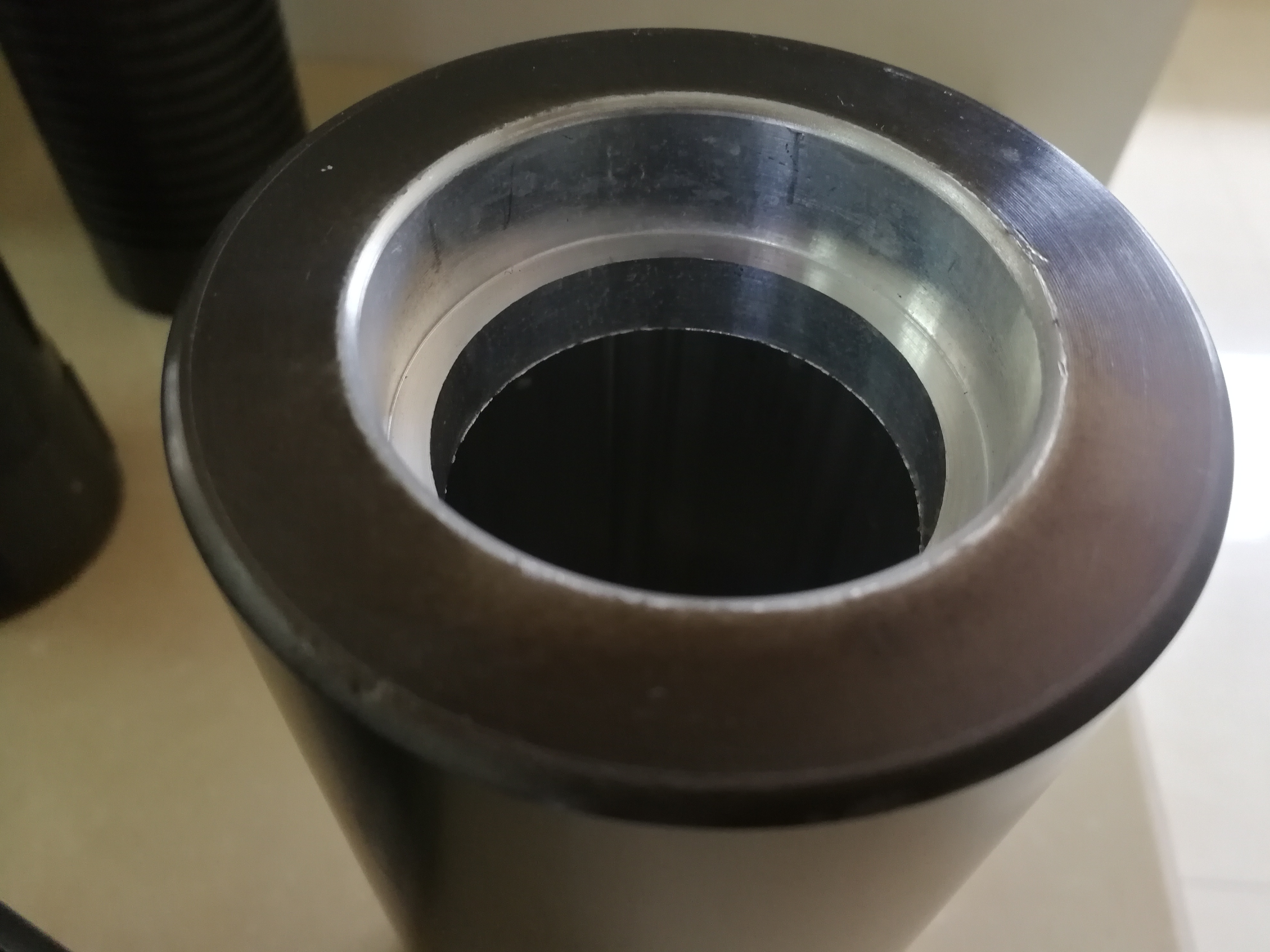

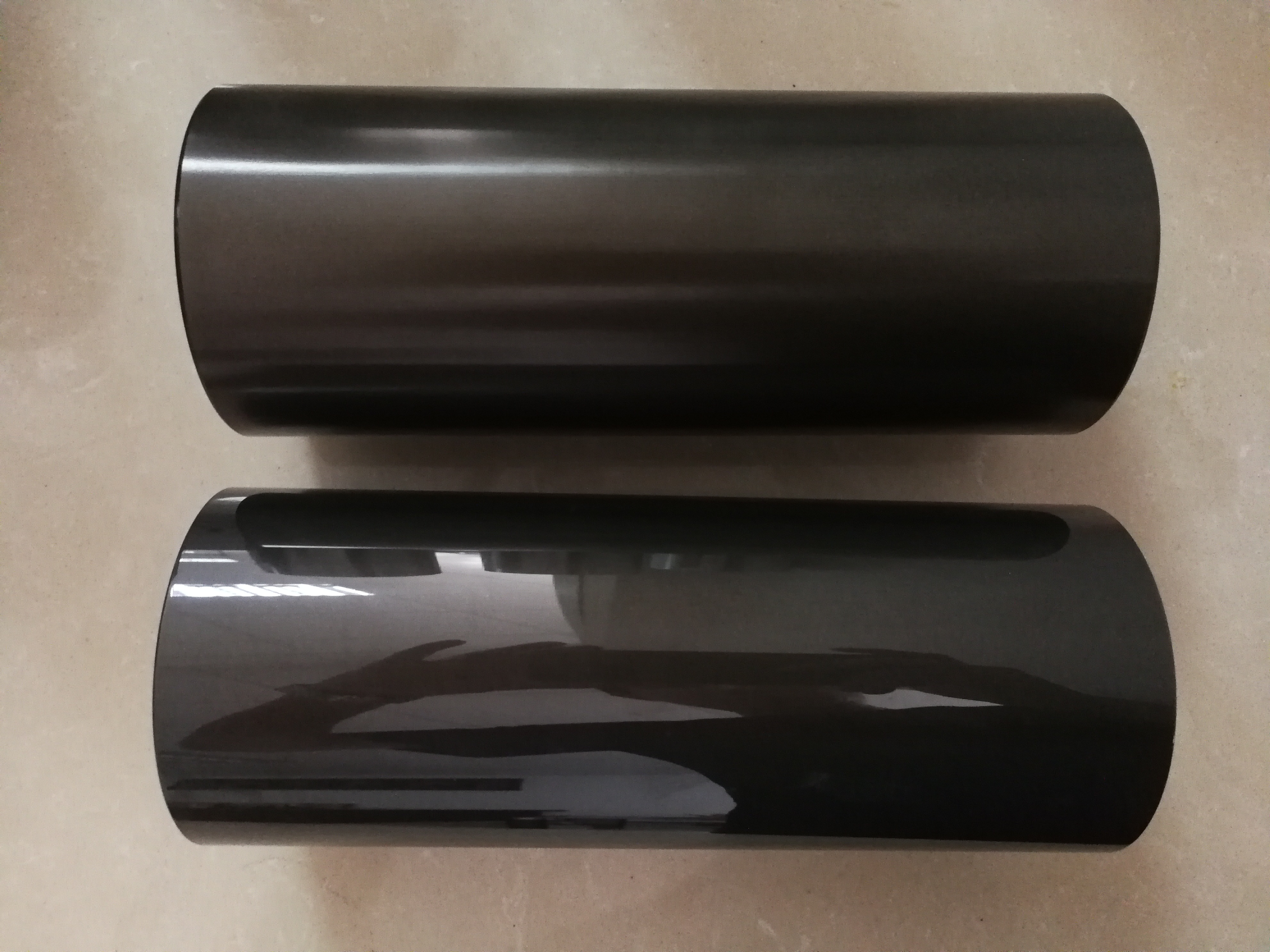

Dynamic Balanced Guiding Idler Roller For Printing Machine

Hard Anodized HV700 Aluminum Idler Roller Dynamic Balanced For Idler Guiding Usage

Advanced aluminum idler roller can make the machine running stable, light aluminum idler rollers smaller inertia can make the machine run more efficiently. Aluminum idler roller is best choice for low-inertia, low-tension applications, with dynamic balanced, idler roller will be free running performance, especially good for high speed machines.

Specification

• Outside diameter is from 25mm to 320mm.
• Dynamic balance of the aluminum roller will be small than 2g.
• Surface gloss can be 0.8.
• Concentricity can reach to 0.02mm.
• Treatment: Hard anodized HV700
• Groove: Center groove, Cross groove, plain

• Better tension control

• Anodized surface of the aluminum alloy guide roller makes the soft aluminum material much harder, and meanwhile will not be oxidized by oxygen in the air, which will change the shape and accuracy and affect the high-speed operation of the machine.
• The high-precision lathe can ensure the aluminum alloy guide roller correct size, good concentricity, and small runout.

H are the normal sizes of the roller and customized is available too.
