LM270WQ1-SLC2 Upside I/F 27 Inch 92 Pins LG TFT Display 89/89/89/89 (Typ.)(CR≥10)

Name: LM270WQ1SLC2 Upside IF 27 Inch 92 Pins LG TFT Display 89898989 TypCR10
Brand: LG Display
Price: 150 USD

LM270WQ1-SLC2 Upside I/F 27 Inch 92 Pins LG TFT Display 89/89/89/89 (Typ.)(CR≥10)

Categories	LG TFT Display
Brand Name:	LG Display
Model Number:	LM270WQ1-SLC2
Certification:	ISO9001
Place of Origin:	CHINA
MOQ:	1PCS
Price:	150USD
Payment Terms:	T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability:	1000PCS
Delivery Time:	1 DAY
Packaging Details:	Package Box :10 pcs / box - Box Size :355×710×488 mm (L×W×H)
Size:	27 Inch
Resolution:	2560*1440
Brightness:	350 cd/m² (Typ.)
Viewing Angle:	89/89/89/89 (Typ.)(CR≥10)
Best View on:	Symmetry
Display Colors:	16.7M 100% sRGB
Frequency:	60Hz
Signal Interface:	LVDS (4 ch, 10-bit) , 92 pins Connector
Lamp Type:	17S4P WLED , 30K hours , Without Driver
Touch Screen:	Without

Contact Now

Add to Cart

Company Info.

Sapientia Display Co.,LIMITED

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

LM270WQ1-SLC2 Upside I/F 27 Inch 92 Pins LG TFT Display 89/89/89/89 (Typ.)(CR≥10)

27 Inch 92 pins Connector LM270WQ1-SLC2 Upside I/F For Desktop Monitor

1. Main Information:

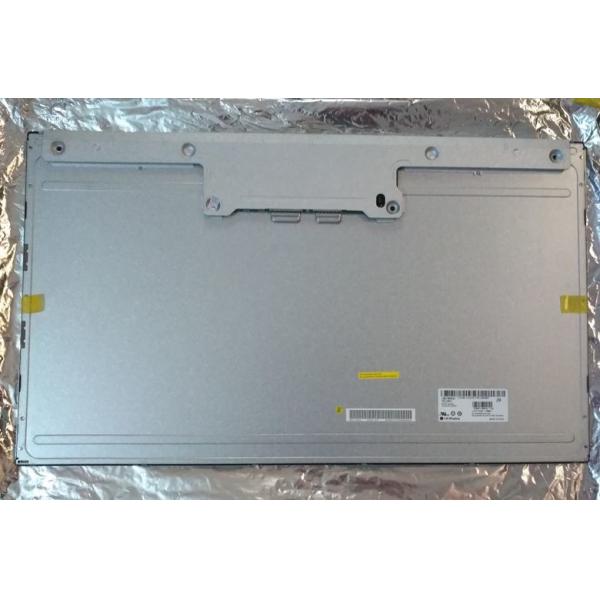

The LM270WQ1-SLC2 (Alias: LM270WQ1 (SL)(C2)) is a 27.0 inch diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²).

It's general features are following: sRGB, WLED Backlight, Upside I/F, Matte . Based on its features,this model be applied to Desktop Monitor, Industrial, Medical Imaging etc.

2. LG Display LM270WQ1-SLC2 Mechanical Features:

Screen Size :	27 Inch
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	2560(RGB)×1440, Quad-HD	RGB Vertical Stripe	0.0777×0.2331 mm	0.2331×0.2331 mm [108PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	596.736×335.664 mm	602.0×340.4 mm	630×368.2 mm	8.7/15.4 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9	Landscape type	-
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	2.62/2.75Kgs (Typ./Max.)	-	Antiglare, Hard coating (3H)
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel

3. LG Display LM270WQ1-SLC2 Optical Features:

Basic Information :	Luminance	Work Mode	Contrast Ratio
	350 cd/m² (Typ.)	AH-IPS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	89/89/89/89 (Typ.)(CR≥10)	12 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	82%	100%	80%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	84%	61%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.43 (Max.)(9 points)

4. LG Display LM270WQ1-SLC2 Backlight Features:

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type (Bottom side)	30K(Min.)	17S4P	4 strings	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	53.6±3.4V		120/125mA (Typ./Max.)			25.7/27.3W (Typ./Max.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			Connector
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	JST	SM06B-SHJH(HF)	1 pcs	6 pins	1.0 mm	BLE-6PINS-CCAACC

5. FAQ

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
