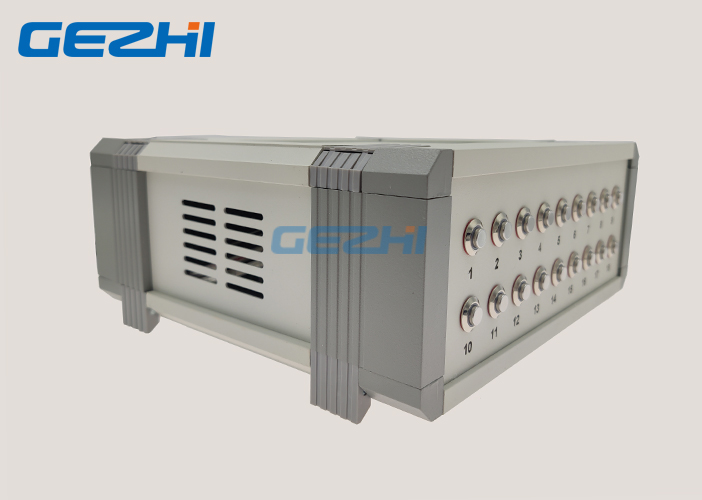

FC Connector APC Desktop 1x18 Optical Switch Equipment

1x18 Optical Switch Equipment FSW-1x18 Desktop Fiber Optic Switches

GEZHI 1x18 Optical Switch Equipment FSW-1x18 Desktop Fiber Optic Switches allow the automated and repeatable connection of one common fiber to 18 number of output or input fibers. These 1x18 Desktop optical Switch are bi-directional and can be used in either the 1x18 or 18x1 direction.

This 1x18 Optical Switch Equipment FSW-1x18 Desktop Fiber Optic Switches is a kind of functional device,with the ability of controlling and switching optical route. It can be manually selected from front panel to control switch. In optical fiber transmission system, it is used for optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.Besides, it is also used in multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc.

Features

Low insertion loss, Fast switching
High Reliability, High Stability

Transparent transmission signal. High stability and reliability.

Independent buttons of each Channel
LED display panel. Visual display, Convenient operation.

Applications

Automatic Measurement

Optical Network Remote Monitoring
Cable Monitoring and Maintaining system

Specification

Panel to Explain:

1x18 Optical Switch Equipment FSW-1x18 Desktop Fiber Optic Switches

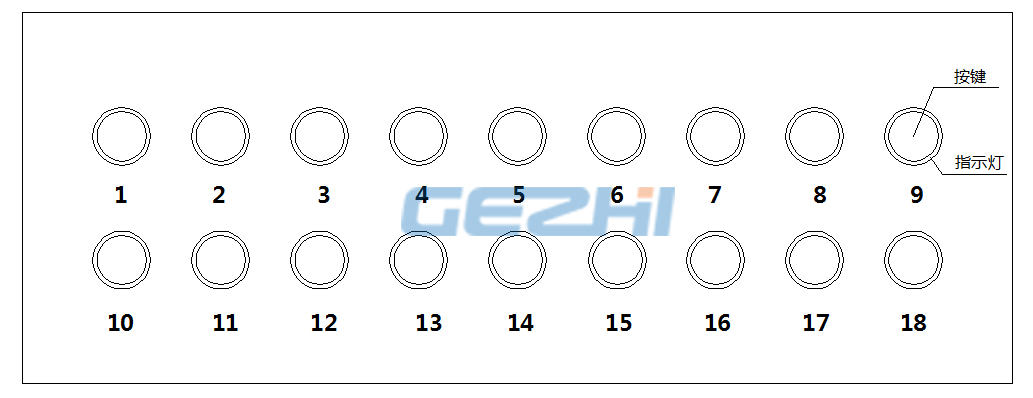

Front Panel

◆ 1~18 port: the button of path Switching and indicator.

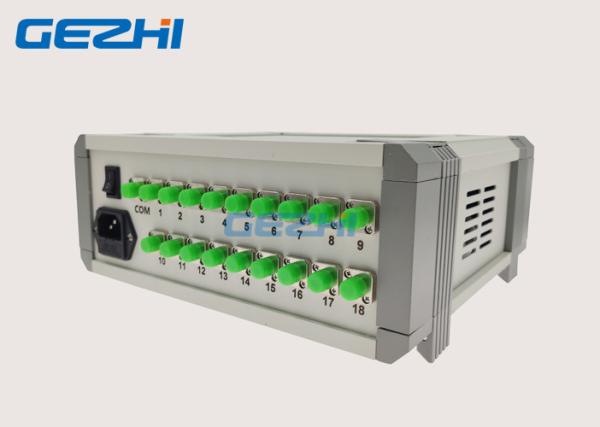

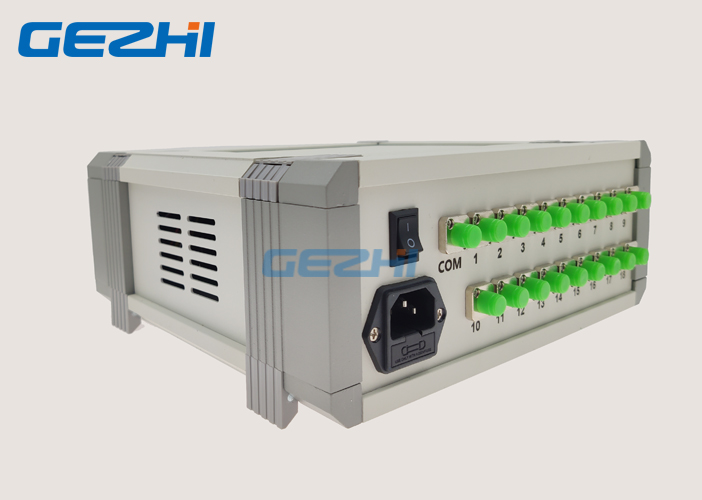

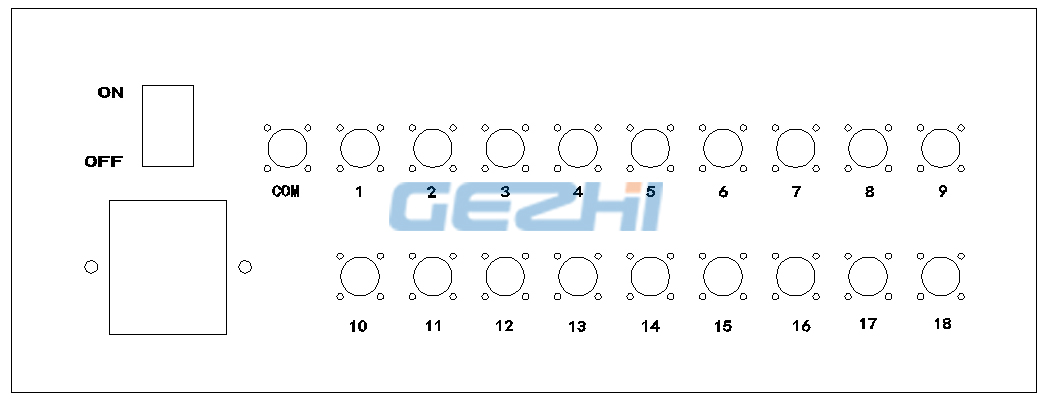

Back Panel

◆ AC: Power cord interface;

◆ ON/OFF: Master switch of power supply ;

◆ Optical interface description: COM on the device panel is a common port, and 1, 2, 3, and N are the channel numbers.

1x18 Optical Switch Equipment FSW-1x18 Desktop Fiber Optic Switches

Detail Pictures
