Double Glazing European Silencer Vertical Glass Washing Machine

Categories Vertical Glass Washing Machine
Brand Name: LIJIANG
Model Number: LJQX2500
Certification: CE
Place of Origin: China
MOQ: 1set
Price: USD25000/set
Payment Terms: L/C, T/T
Supply Ability: 10sets/month
Delivery Time: 5-8work days
Packaging Details: wooden box
name: galss washing and drying machine
Max. glass size: 2500mm*3500mm
2500mm*3500mm: 280mm*400mm
Glass thickness: 3-15mm / 19mm
Insulating glass thickness: 50mm / 60mm
Glass washing speed: 2-10m/min
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Double Glazing European Silencer Vertical Glass Washing Machine

European silencer system Vertical Glass washing machine for double glazing

Main feature:

• Use 6 soft brushes
• Online and offline cleaning of low-e glass, automatic identification of low-e film
• The washing part adopts the upper and lower layered structure design
•Adopt frequency conversion fan, high efficiency and energy saving, good cleaning effect
• The air knife can automatically adjust the width of the air knife according to the thickness
• Adopt intelligent intermittent energy-saving working methods
• Layered cleaning system
• Automatic temperature control of water tank, water replenishment system
•European silencer system
•304 stainless steel material

Technical data


Max. glass size2500mm*3500mm
Min. glass size280mm*400mm
Glass thickness3-15mm / 19mm
Insulating glass thickness50mm / 60mm
Glass washing speed2-10m/min
Glass conveyor speed45m/min
Washing brushes3 pairs
Water supplyWater consumption:0.5t/h conductivity:40μs/cm
Air supplyFlow: 0.8m/min
Air pressure≥0.8MPa
Total power3P 380V 50HZ 40KW
Dimension23500*3500*3700mm
Weight6500kg

Electrical parameters


NAMEORIGINBRAND
PLCGermanySIEMENS
Low voltage electrical applianceGermanySIEMENS
Frequency converterGermanySIEMENS
Servo motorJapanFUJI
Photoelectric switchGermanySICK
Micro SwitchTaiwanTEND
Button and indicator lightFranceSCHNEIDER
Touch screenTaiwanWEINVIEW
Intermediate relayJapanOMRON
Brush motorChinaQINGHUA
Water pumpChinaLINGXIAO
GuideTaiwanHIWIN
Pneumatic ComponentsTaiwanAIRTAC

NAMEORIGINBRAND
Servo motorGermanySIEMENS
PLCGermanySIEMENS
Low voltage electrical applianceGermanySIEMENS
Frequency converterGermanySIEMENS
Transfer motorTaiwanLINHAI
Brush motorTaiwanLINHAI
Water pumpChinaLINGXIAO
GuideTaiwanHIWIN
Pneumatic ComponentsTaiwanAIRTAC
Electric gaugeChinaMIRAN
Photoelectric switchGermanySICK
Micro SwitchTaiwanTEND
Button and indicator lightFranceSCHNEIDER
touch screenTaiwanWEINVIEW
Intermediate relayJapanOMRON

Detailed description

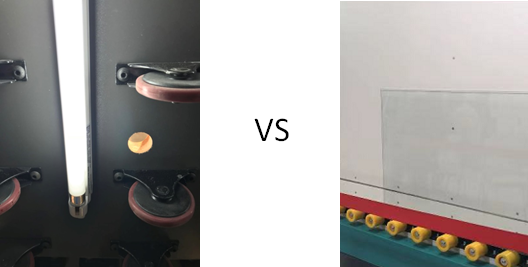

  1. Transfer wheels VS air-floating technology

Both the front and rear transmission wheels have moved and have been actively transmitted. It can ensure the smooth passage of large and thick glass.

The new air floating technology uses air support glass and transfer glass. After washing the glass from the washing machine with a washing machine, it will not be contaminated when using air to transport the glass. Ensure that the insulating glass produced is of the highest quality.
