| Categories | Brushless DC Planetary Gear Motor |
|---|---|
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE/ISO/ROHS |
| Supply Ability: | 25000pc/month |
| Packaging Details: | with export carton |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Diameter: | 28mm |
| Rated Voltage: | 24V |
| Rated Load Speed: | 31rpm |
| Rated Load Current: | 350mA |
| No Load Speed: | 35rpm |
| No Load Current: | 155mA |
| Load Torque: | 7444g.cm |
| Gear Ration: | 216:1 |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

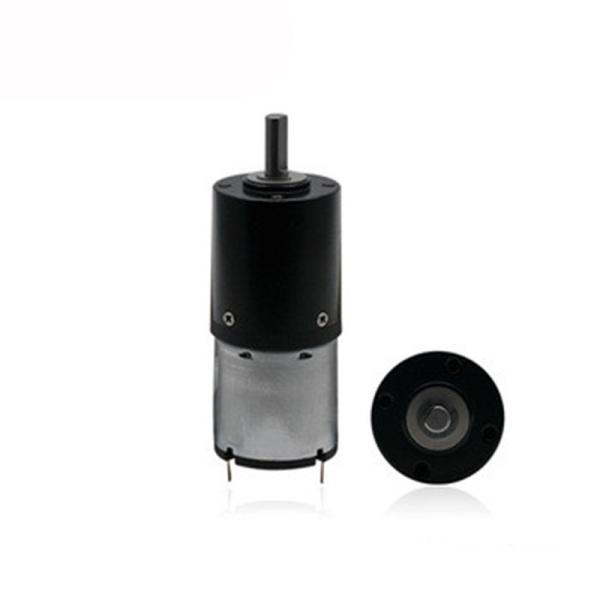

28mm Brushless DC Planetary Gear Motor
We also have the following parameters for reference:
Model | Application Parameters | Rated Torque of Gear Box | Instant Torque of Gear Box | Gear Ratio | Gear Box Length | |||||||
| Rated | At No Load | At Rated Load | Overall Length | |||||||||
| Voltage | Speed | Current | Speed | Current | Torque | |||||||
| VDC | rpm | mA | rpm | mA | gf.cm | mN.m | mm | gf.cm | gf.cm | mm | ||
| ZWBMD028028-36 | 24.0 | 211 | 150 | 181 | 400 | 1882 | 184.6 | 67.3 | 33000 | 100000 | 36 | 29.8 |
| ZWBMD028028-64 | 24.0 | 119 | 150 | 104 | 350 | 2206 | 216.3 | 75.8 | 40000 | 120000 | 64 | 38.3 |
| ZWBMD028028-96 | 24.0 | 79 | 150 | 69 | 350 | 3308 | 324.5 | 40000 | 120000 | 96 | ||
| ZWBMD028028-144 | 24.0 | 54 | 150 | 46 | 350 | 4963 | 486.7 | 40000 | 120000 | 144 | ||
| ZWBMD028028-216 | 24.0 | 35 | 150 | 31 | 350 | 7444 | 730.0 | 33000 | 100000 | 216 | ||
| ZWBMD028028-256 | 24.0 | 30 | 150 | 26 | 350 | 6617 | 648.9 | 84.3 | 40000 | 120000 | 256 | 46.8 |
| ZWBMD028028-384 | 24.0 | 19 | 150 | 17 | 350 | 9925 | 973.4 | 40000 | 120000 | 384 | ||
| ZWBMD028028-576 | 24.0 | 13 | 150 | 12 | 350 | 14888 | 1460.1 | 40000 | 120000 | 576 | ||
| ZWBMD028028-864 | 24.0 | 9 | 150 | 8 | 350 | 22332 | 2190.1 | 40000 | 120000 | 864 | ||
| ZWBMD028028-1296 | 24.0 | 6 | 150 | 5 | 350 | 33000 | 3236.3 | 33000 | 100000 | 1296 | ||
Application:
| Audio and visual equipment | notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc. |
| Household application | electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc. |
| Office automation equipment | OA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc. |
| Automotive products | conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc. |
| Toys and models | radio control model, automatic cruise control, ride-on toy and etc. |
| Medical Application | blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc. |
| Industrials | display, flow control valves and etc. |
| Electric power tools | electric drill, screwdriver and etc. |
| Precision instruments | monitor, optics instruments,automatic vending machine and etc. |
| cosmetic tool | eyebrow pencil, Electric threading knife,Facial pore cleasner , Puff machine,eyebrow tweezers and etc. |
|
