180KG EM Lock 350LBS Embedded Electric Magnetic Lock For Access Control System Electric Door Lock

Categories Electric Magnetic Lock
Place of Origin: Guangdong,China(Mainland)
Brand Name: ximiir
Model Number: XM-180M
Size: 203Lx42Wx27H(mm)
Armature Plate Dimension: 180Lx38Wx11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12 or 24VDC
Current: 12V/500mA or 24V/250mA
Suitable: Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp: ≤+20℃
Operating Temp: -10~+55℃(14-131F)
Humidity: 0~90%(non-condensing)
Weight: 1KG
Price: Deliberation
MOQ: 1PC
Packaging Details: 1pc/box, 10pcs/carton
Delivery Time: 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated
Payment Terms: L/C D/A D/P T/T Western Union MoneyGram
Supply Ability: 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

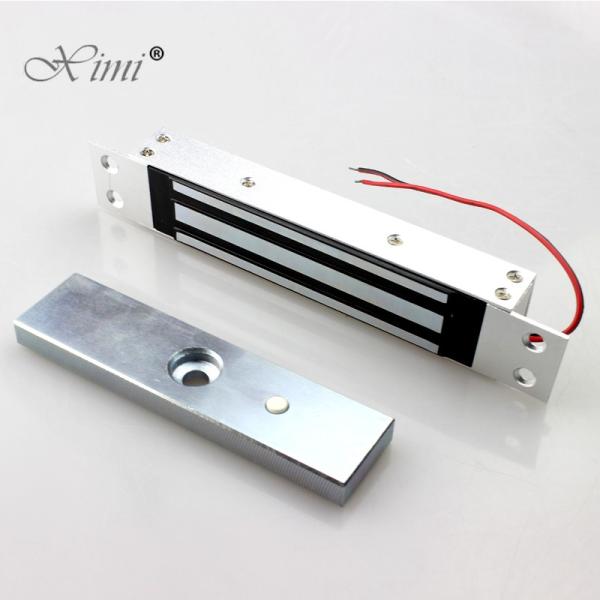

180KG EM Lock 350LBS Embedded Electric Magnetic Lock For Access Control System Electric Door Lock

Product Description

Advae:

1. Collinear Load Test 180kg,350pounds.
2. Dual Voltage 12 or 24 VDC(optional).
3. The Standard Voltage is 12VDC when Finished.
4. MOV Provides Reverse Current Protection.
5. Anti-Residual Magnetism Designed.
6. High Strength Material,Anodized Aluminum Housing.
7. Design without Mechanical Failure.
8. Increase the holding Force,Dual Insulative Housing.

Specifications:

Model
XM-180M
Size
203Lx42Wx27H(mm)
Holding Force
180kg(350Lbs)
Armature Plate Dimension
180Lx38Wx11H(mm)
Input Voltage
12V / 24V DC
Current
12V/500mA or 24V/250mA
Suitable
Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp
≤+20℃
Operating Temp
-10~+55℃(14-131F)
Humidity
0~90%(non-condensing)
Cover Finish
Anodized aluminum/Stainless Steel
Lock Finish
Zinc
Armature Plate Finish
Zinc
Weight
1KG
