| Categories | Alloy Pipe Fittings |
|---|---|
| Brand Name: | HT |
| Model Number: | l Inconel 601 UNS 6601swage nipple |
| Certification: | ISO TUV BV SGS,etc. |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Delivery Time: | 5~50days |
| Packaging Details: | plywood case,pallet,woven bag,carton,etc. as per your requirements. |
| Material: | l Inconel 601 UNS 6601 |
| Product name: | swage nipple |
| size: | 1/4‘’~12'' |
| Standard: | MSS SP95 |
| process: | forged |
MSS SP95 Nickel alloy steel Inconel 601 UNS 6601swage nipple
1.What is Threaded Swage Nipple
Threaded Swage Nipple are either manufactured from seamless pipe or bar material and have an available working pressure equivavlent to straight seamless pipe. These fittings are available in all grades with other materials available on request. Threaded Swage Nipple Manufacturers can provide NPT Swage Nipples as per the Custom Sizes and material as per requirment of clients. Standard and Extra Heavy right and left nipples available in 1⁄8 – 4" diameter and 4" and 6" lengths. 1/8" - 1 1/2" 2" - 8" ±1/64 ± 1 % OF NOMINAL O.D. Standard NPT Tapered Pipe Threads as per ANSI B 1.20.1 Specification
2.
| Standard | Types | Class Rating/Schedule | Ends | Size |
| ASME B16.11 | 90°Elbow/ 45°Elbow/ Tee/ Cross | 2000LB | Threaded | 1/4''~4'' |
| 90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coupling | 3000LB/6000LB | Threaded | 1/4''~4'' | |
| Socket-welding | 1/8''~4'' | |||
| 90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coupling | 9000LB | Socket-welding | 1/2''~2'' | |
| Street Elbow | 3000LB | Threaded | 1/8''~2'' | |
| 6000LB | 1/8''~1-1/2'' | |||
| Lateral Tee | 3000LB | Socket-welding | 1/4''~2'' | |
| 6000LB | 1/2''~1-1/2'' | |||
| 3000LB | Threaded | 3/8''~2‘’ | ||
| 6000LB | 1/2''~2'' | |||
| 9000LB | 1/2''~1-1/2'' | |||
| Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug | 3000LB/6000LB | Threaded | 1/8''~4'' | |
| MSS SP79 | Reducer Inserts | 3000LB/6000LB/9000LB | Socket-welding | 3/8‘’x1/4''~2x1/2'' |
| MSS SP83 | Union | 3000LB | Socket-welding/Threaded | 1/8''~3'' |
| MSS SP95 | Concentric/Eccentric Swaged Nipples | See Below Note1 | 1/4‘’~12'' | |
| Bull Plugs | Threaded | 1/8''~12'' | ||
| MSS SP97 | Weldolet | STD, XS, Sch 160/XXS | Butt-welding | 1/8''~36‘’ or larger |
| Sockolet | 3000LB/6000LB | Socket-welding | 1/8''~6'' | |
| Threadolet | 3000LB/6000LB | Threaded | 1/8''~6'' | |
| Nipolet | XS/XXS | Plain/Threaded | 1/2''~2'' | |
| Elbolet | 3000LB/6000LB | Socket-welding/Threaded | 1/4''~2'' | |
| STD/XS/160/XXS | Butt-welding | 1/4''~2-1/2'' or larger | ||
| Latrolet | 3000LB/6000LB | Socket-welding/Threaded | 1/2''~2'' | |
| STD/XS/160/XXS | Butt-welding | 1/2''~2-1/2'' | ||
| Flangolet,Nipolet,Sweepolet,etc. available as per client' demands. | ||||
| BS3799 | Hex Nipple | 3000LB/6000LB | Threaded | 1/8''~2''x1/2'' |
| Bosses | 3000LB | Threaded | 1/8''~2'' | |
| 6000LB | Threaded | 1/8''~4'' | ||
| Pipe Nipple | 40/STD/80/XS /160/XXS | See Below Note1 | 1/8''~6'' | |
| Material Grade | Nickel Alloy | ASTM / ASME B/SB 564 UNS N02200 (NICKEL200), UNS N04400 (MONEL 400), UNS N08825(INCOLOY825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N10276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3) | ||
| Copper Alloy | ASTM / ASME B/SB 151 UNS C70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30) | |||
| Stainless Steel | ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H. | |||
| Duplex and Super Duplex Steel | ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61,F904L | |||
| Carbon Steel | ASTM / ASME A/SA 105(N) | |||
| Low Temp Carbon Steel | ASTM / ASME A/SA 350 LF 2. | |||
| High Yield Carbon Steel | ASTM / ASME A/SA694 F52 F56 F60, F65, F70 | |||
| Alloy Steel | ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91. | |||
| Titanium | ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7 | |||
| Note1 | PBE:Plain Both Ends BBE Bevel Both Ends TBE: Threaded Both Ends PSE:Plain Small End BSE:Bevel Small End TSE:Threaded Small End PLE:Plain Large End BLE:Bevel Large End TLE:Thread Large End | |||
| Note2 | For the swage nipples,pipe nipples,the material can be referred to the pipe standard. | |||
| Note3 | NPT(National Pipe Thread) FPT(Female Pipe Thread) MPT(Male Pipe Thread) BSPT(British Standard Pipe Thread) | |||
2.NPT Swage Nipple Dimensions
3. ASME B16.11 Forged Swage Nipple Specification Dimension :
ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Type : Socketweld Fittings & Screwed-Threaded NPT, BSP, BSPT Fittings
Form : Swage Nipple, Concentric Swage Nipple, Eccentric Swage Nipple, Pipe Nipple, Hex Nipple, Barrel Nipple
Standard : ASTM A182, ASTM SA182
Size : 1/4" NB TO 4" NB
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
4.Inconel 601
Inconel 601 Threaded Fittings Specifications | ||
| Specifications | : | ASTM B564 & ASME B564 |
| Size | : | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Standards | : | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | : | Socketweld Fittings |
Inconel 601 Forged Threaded Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Cu | Ni | Fe |
| Inconel 601 | 0.10 max | 1.00 max | 0.50 max | – | 0.015 max | 21.00-25.00 | 1.00 max | 58-63 | Balance |
Inconel 601 Threaded Fitting Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80000 , MPa – 550 | Psi – 30000 , MPa – 205 | 30 % |
Equivalent Grades for 601 Inconel Forged Threaded Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |

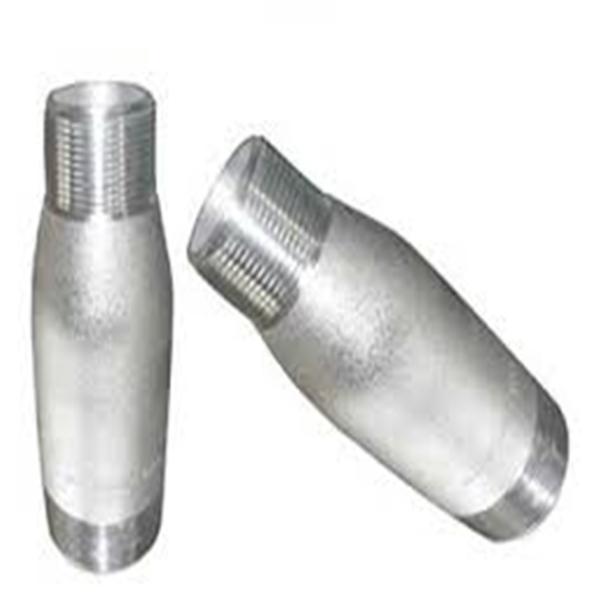

5.product showing
6.packing show
|
