Intel 9th Core I7 9700 DDR4 Barebone Mini PC Dual HDMI DP 4GB Up To 32GB RAM

Intel 9th Core i7 9700 DDR4 Mini PC Win10 Pro Wifi BT4.2 Dual HDMI DP 4GB up to 32GB RAM

Features

- Support Intel 8^th/9^th Gen LGA1151 Processors, up to 65W

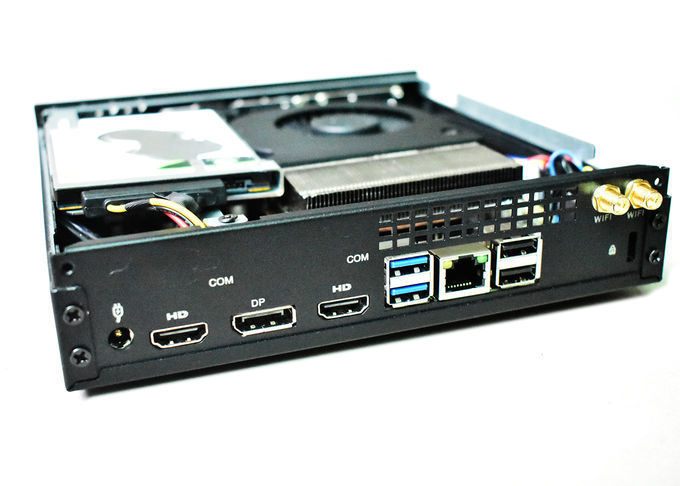

- 1 x Display port, 2 x HDMI

- USB 3.0 x 4, USB2.0 x 4
- Up to 32GB DDR4 SO-DIMM memory support

- 1 x M.2 2280 SSD

- 1 x 2.5” HDD/SSD tray

- 180 x 190 x 39mm/1.3L
- Stand hold design

- Metal chassis

Computing System

Processor: Supports Intel® 9th/8th Gen LGA1151 Processors (Max. TDP 65W)

Chipset: Intel® B365

Memory: 2 x SO-DIMM DDR4-2666/2400 Slot (up to 32GB)

Graphics

Graphics Engine: Integrated Intel® UHD Graphics

Video Output: 2 x HDMI 1.4 (4k @ 24Hz)

1x Display port(4k@60Hz)

Storage

Hard Drive: 1 x 2.5-inch SATA 6.0 Gbps SSD/HDD slot

M.2 : m.2 2280 SATA SSD/NVME SSD

I/O Ports

Audio: Stereo output
Loss-less Bitstream via HDMI /DP

Microphone in

USB Port: 4 x USB 3.0 (2 in front, 2 in rear) 4 x USB 2.0 (2 in front, 2 in rear)

LAN: 1 x 10/100/1000Mbps

Antenna: Internal, dual antenna

Wifi: mini-PCIe slot

Mechanical

Kensington Lock: Yes

LED Indicators: Power, Power Supply

AC Adaptor : DC19V4.7A(3200G), DC19V6.0A(3400G)

Cooling system: Fan cooling

Dimensions: 190mm x 180mm x 40mm

Case Mounting: Stand hold

Trading Terms:

EXW or FOB Hongkong/Shenzhen port

Sample order:100% by TT

Lead Time:1 week for sample, 1 month for batch order

Warranty:1 year after the shipment.

Newsmay, is one of the most professional mini-PC manufacture and qualified vendor for you.

                  we start the mini-PC product since 2014 based on Intel Baytrail 3740 CPU, then following Baytrail 3735, Cherrytrail Z8350, Apollo lake J3455, Gemini lake J4105,J5005,J4125, Intel Big Core Kabylake i3-7100u/i5-7200u/i7-7500u, Intel desktop motherboard B365, H310 for 8th,9th gen CPU, till this year Intel 10th Gen CPU Comet Lake-u i3-10110u,i5-10210u,i7-10510u, AMD A320, A520 for Ryzen CPU. Newsmay is experienced and professional on mini-PC product thermal solution, noise solution, the CPU is follow the big brand that with good performance, the design idea is according to market,client demand that can meet the demand.

                  R&D team: total 10 person:  motherboard hardware, chassis design hardware, BIOS, OS make, sample and funtion test engineer, debug engineer. all this guys have more than 5 years working experience on computer product, some of them working in FOXXCOM before, besides, we have one LAB that to test the device, LAB include the equipment: High-low temperature chamber, cable test, salty spray test, chakeness test, 4K test...,

         Newsmay have own manufacture center: production line, burning test room, package line, warehouse...,

           To make qualitifed product, the whole process for production and quality control is the key important, also it related to OS/BIOS/windows license inject, it required more professional persons and factory.

         With good product and strong back ground support, we have confident to supply client qualitifed product. this years, we join lots of shows.like COMPUTEX, Embedded, CES, Hongkong electronics, Cebit(2018)

       Through this years working and growing, Newsmay mini-PC sold to more and more market and countries, such as Australia, Canada, Mexico, New Zealand, Germany, Czech, UK, Denmark, Russia...,whats  more, we do several tendor project, like SA cap town education project, Czech airport display project, digital signage..,

       After each fair, our client and friend visit us for factory checking, product checking,
