Modern 1.4 Ton 3m Curtis Electric Pallet Stacker For Warehouse Long Using Life

Categories Electric Pallet Stacker
Brand Name: LTMG
Model Number: ERB14
Certification: CE/ISO
Place of Origin: China
MOQ: 1/unit
Price: USD 713-813 PER SET
Supply Ability: 300 Set/Sets per Month
Delivery Time: 30days
Packaging Details: nude packing
Capacity(kg): 1400kg
load centre-mm: 600mm
Travelling motor: 1.5KW AC
Warranty: 1 year or 2000 working hours
Brand: LTMA
Battery voltage/capacity: 24V / 165Ah
wheel(drive/load): PU
Lifting height: 3000mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

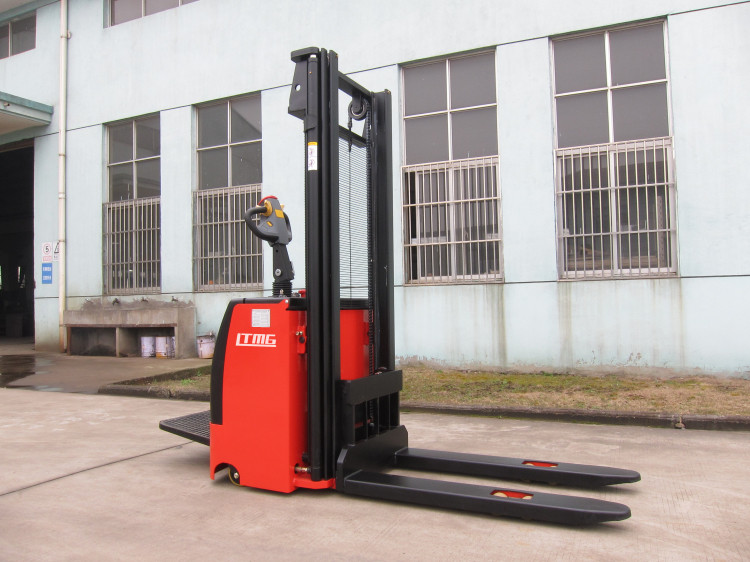

Modern 1.4 Ton 3m Curtis Electric Pallet Stacker For Warehouse Long Using Life

LTMG New design 1.4 Ton 3m Curtis Electric Stacker For Warehouse


Features of LTMG New design 1.4 Ton 3m Curtis Electric Stacker For Warehouse

1. Curtis AC Control System
2. Walkie Standard, Rider Option
3. Electromagnetic Brake
4. Easier Operations Through Handle
5. Electric Power Steering Systems
6. Suitable For Storage Situations
7. Used For Transport And Stacking Of Pallets In warehouses And Plants


The specifications of LTMG New design 1.4 Ton 3m Curtis Electric Stacker For Warehouse

Brake typeElectromagnetic
Control systemCurtis-1230-2402
EPS (electric power steering)Standard equipment
load centre-mm600
Rider-optionadded USD
Lifting geight-mm110
Standard fork width-mm540 / 685
Fork length-mm1150 / 1200
Fork thickness-mm55
Fork width-mm185
Overall length-mm1830
Overall width-mm720
Min.turning radius-mm1655 / 1705
Max.travelling speed laden-km/h4.5
Max.travelling speed unladen-km/h4.5
Max.lifting speed laden-m/s0.056
Max.lifting speed unladen-m/s0.06
Max.lowering speed laden-m/s0.057
Max.lowering speed unladen-m/s0.059
Gradeability laden-%5
Gradeability unladen-%7
Service weight with battery-kg600
Wheel quantity(drive/load)1D+4L/1D+2L
Size of steering wheel-mm248*75
Size of loading wheel-mm84*58
Size of balance wheel-mm115*55
Wheel base-mm1250 / 1300
LTMG New design 1.4 Ton 3m Curtis Electric Stacker For Warehouse
After-sale service
Nowadays we have been sell more than 100 countries. All the products of LTMG supplied withone year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.

Detail clauses and policies please see to our website and product's quality certificate.
