Advanced Soda Bottling Machine Rinsing Filling Capping Machine Filling Accurate

Cola / Sprite / Soda Water Carbonated Drink Filling Machine Production Line

Soda bottling machine description:

Combined with foreign advanced technology design and yesrs experience in filling machine field, this washing filling capping 3 in 1 monoblock machine is suitable for small beverage production company. Empty bottle enters into this machine by air conveyor automatically, after water rinsing, beverage filling and cap 3 steps, finsihed carbonated drink will be delivered out by product conveyor, then these products will get into next processing equipment.


Soda bottling machine advantages:

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, Siemens.

Soda bottling machine parameters:

Soda bottling machine details description:

Bottle rinsing:

Bottle-washing machine with the spring structure: when empty bottles are automatically rotated in a 180°semi-circle on the

track, it washes the bottle insidein a complete and efficient way.

Rinsing water is pumped into every filling nozzle, make sure the water can wash the bottle inside well.

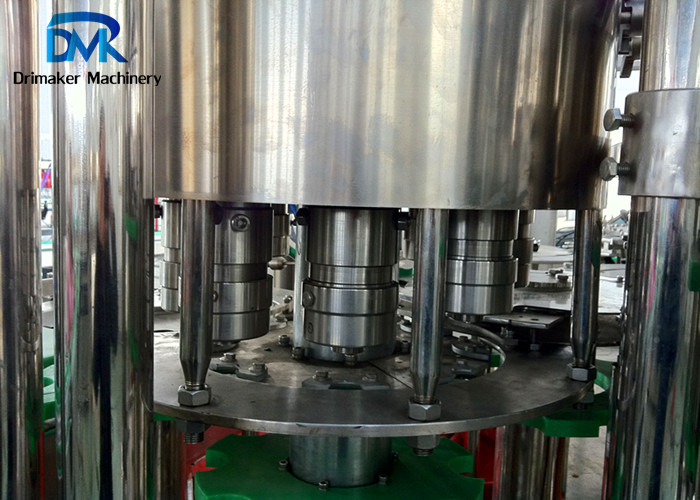

Bottle filling:

Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss

Capping:

1. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
2. All 304/316 stainless steel construction.
3. No bottle no capping.
4. Automatic stop when lack of bottle.
5. Capping effect is stable and reliable ,Defective rate ≤0.2% .

Cap loading:

It is used for conveying caps into the capping machine by blowing. It starts to work automatically when it is lake of cap in the capping machine. The height and distance of transporting caps, the time of sterilizing can be adjusted as the requirement.
