Dpack corrugated Oil Heating 3 Layer 80m/Min Corrugated Cardboard Machines in China

Categories Corrugated Cardboard Machines
Brand Name: Dpack
Model Number: WJ80-1800
Certification: IOS9001
Place of Origin: China Hebei Dongguang
MOQ: 1 line
Price: Negotiate
Payment Terms: L/C, T/T
Supply Ability: 1 Line/3 Months
Delivery Time: According To Product
Packaging Details: Wooden case or wrapping film
Design Speed: 80m/min
Working Width: 1800mm
Equipment size: 75m×12m×3.8m(L×W×H)
Total power: About 260kw
Common power: About 160 kw
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Dpack corrugated Oil Heating 3 Layer 80m/Min Corrugated Cardboard Machines in China

Model: WJ80-1800 Oil Heating 3Layer Corrugated Cardboard Production Line

1. Design Speed:80m/min

2. Economic Speed:60m/min

3. Working Width:1800mm

4.Production Line Length:About 70meters (Exact length basis on groundwork drawing)

P.S.The real paper in production speed test should meet the following requirement:

*Reel paper minimum degree : B degree

* Percentage of moisture for real paper 11% ± 1%

*Tissue paper 120~150g/m2

*Liner paper 90~125g/m2

*Flute paper 90~125g/m2

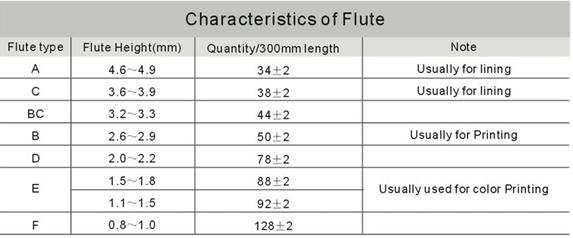

5. Flute profiles:CFlute(Or according to the customers` requirement)

6. Power supply:380V 50Hz Three phase four wire system

7,Total power:About 260kw Common power:About 160 kw

8,Equipment size:75m×12m×3.8m(L×W×H)

9,Equipment flowing direction:According to the user` factory to fix right or left.

WJ80-1800 Oil heating 3 ply corrugated cardboard production line configuration lists

NoNameQtyRemark
1Hydraulic stand3

RS-1500H-1800mm. Fully Hydraulic action. Pneumatic tension control. Two points brake

Hydraulic valve made in Tianyuan .

2Railing and pulley6

8m railing with pulley

16# channel steel

3Single facer2

SF-280S-1800mm.Corrugating roller ¢280mm.

Material is 48 crmo alloy steel, Gear grinding,Glue roller, rubber roller Heli brand

Electric adjust glue area

4Single layer Conveyor bridge1BS-T-1800mm.Adsorption, frequency leading paper
5Pre-heater1

MH-600T-1800mm.φ600mm, electric adjust wrapping angle

Wall Thickness 18

6Pre-condition1

MH-600T-1800mm.φ600mm, electric adjust wrapping angle

Wall Thickness 18

7Duplex pre-heater1

MH-600T-1800mm .φ600mm, electric adjust wrapping angle

Wall Thickness 18

8Glue machine1

GA-288D-1800mm.Glue roll¢288mm

Frequency control glue and figure show

PLC control , Dia288

Main bearing adopt NSK

9Double facer1

DF-636-1800mm. Automatic correct deflection, frequency motor, wallboard is casting.

Doctor glue by driving rollerthe main channel steel of 280 mm,cooling part canal steel 250 mm

520mm×9pcs heat plates, hydraulic lift.

10Thin Blade Slitter Scorer1

SS-150P-1800. 5blades with 8 line

Button adjust knife

Could left-right move

11Computer Double Spiral Knife Cross Cutting Machine1

NC-D-120-1800mm. Dia200mm

Computer system adopt Taiwan

Cutting precision :±1mm(even speed)

12Paper holder1Pneumatic
13Double Feeding machine1CF-100-1800mm. 4m per part,with transverse output
14Main drive1DF-636-1800mm.Diameter 636mm
15Electric control System1

EF-T Electric control system.Adopt local famous brand

Including wires from switch board to main motor.

16Oil heating system1SP-S Oil heating system . Pipeline on valves provided by buyer
17Pneumatic System1GF-T Pneumatic System. Including one set of 0.6m3 steam tank .pump and pipeline on valves provided by buyer
18Glue Making System1GF-T. Nclude main pot 1 set, carrier pot 1 set, and storage pot 1set, include up and down pot each one. Pump 5 set, pipeline provided by customer
