25r / Min Double Twist Hexagonal Wire Netting Machine Wire Diameter 1.6-4.0mm

Double Twist Hexagonal Wire Netting Machine Wire Diameter 1.6-4.0mm 25r/Min

Features:
1. One set of main machine can only produceone mesh size.
2. One set of main machine can make severalwire diameters.
3. You can weave two or three net with thesame machine.
4. Adopt the principle of clockwise and counterclockwise twisting;no need to makeiron wire spring form to increase productivity


Hexagonal Wire Netting Machine
1. Model: KS80100-4.0
2. Mesh size: 80x100mm
3. Twist: Double twist
4. Wire diameter: 1.6-4.0mm
5. PVC wire diameter: 3.0-5.5mm
6. Max. width: 4300mm
7. Spindle Speed:25r/min
8. Theoretic output: 3.5m/min
9. Motor power: 22.0kw
10. Weight: 15MT
11. Dimensions: 8100mm x 1500mm x 2180mm.


Specification

OPERATIONS

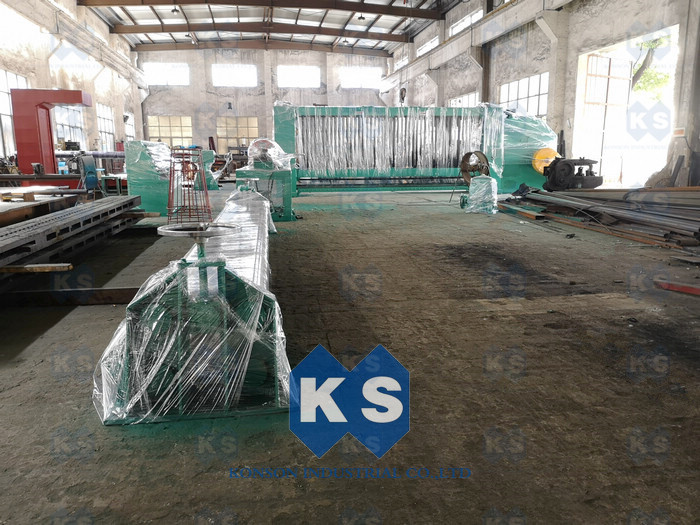

Hexagonal Wire Netting Machine has a circular pinion holder on the front and rear of the machine.

The wires which are fed from the bobbins and also from the spiral coil (prepared in spiral coiling machine) placed on the front and rear rack of the machine produces the netting.

The net is pulled out by the take-up roller with stands on the surface of the machine and wound automatically on the winding roller.

When the length of netting reaches the predetermined length, the same is cut and removed from the roller.

The complete operation is then repeated.


Description
1. PLC + Touch screen, easy operation.
2. Servo motor transmission, running fast, shock-resistance, smooth running, low noise, much better than mechanical transmission.
3. Inching / Single-step control button.
4. Grid counter + alarm to stop machine (when wire/ mesh broken, or preset numbers into zero).
5. Automatically wind up mesh into rolls.
6. Automatic central lubrication system to reduce machine damages.
7. The machine can weave several mesh rolls at same time for different mesh width.


KS series machine has the feature of rational design, simple structure, smooth running, excellent performance, reliable operation and convenient maintenance.


Advantages:
A1. CE certificate.
A2. QC system & timely delivery.
A3. New drive mode.
A4. Automatic oil system.
A5. Overload protect clutch.
A6. High-efficiency: theoretic output = 3.5m/min.
A7. Turbine protection system (Option).
A8. Infrared ray safety (Option).
A9. Automatic stop system (Option).
A10. All of the core parts of machines are processed by our own factory, so the quality can be ensured.
A11. KONSON offer better after-sale service. We can provide 12 months guarantee for all the equipments, we will arrange our engineer to install the machines in your factory and teach your workers how to produce, we will also send accessories and spare parts without any cost.

Konson Industrial Co., Ltd.

Founded in May of 1999，KONSON INDUSTRIAL CO.,LTD. is the earliest company specialized in Gabion boxes, , Hexagonal Wire Netting, Gabion Retaining Wall, Gabion Machine and Gabion Production Line in China.

+ The earliest manufacturer of Gabion machine in China.

+ We have experience of export business for more than 15 years.

+ The finished products can meet international standard ASTM , BS, EN and pass ISO,SGS quality certificate system.

+ Complete material testing system and QC system.

+ Experienced staffs, the fastest delivery time.

+ Best service (Any enquiry will be replied within 24 hours). Thanks for your reading!
