| Categories | Small Pixel Pitch LED Display |
|---|---|
| Brand Name: | DDW |
| Model Number: | DDW-S3P1669 |
| Certification: | CE/ROHS/FCC/UL/ISO/3C |
| Place of Origin: | Shenzhen ,China |
| MOQ: | Negotiable |
| Payment Terms: | Bank T/T transfer, Western Union |
| Supply Ability: | 6000sqm/month |
| Delivery Time: | 7-20 days |
| Packaging Details: | Plywood or Flight Case |
| Module Size: | 200*300mm |
| Pixels: | 1.667mm |
| Viewing Angle: | 140°/140° |
| Cabinet Wegiht: | 4.55kg/pc |
| Module Resolution: | 120*180dot |
| Working Temperature: | -20℃ - +60℃ |
| Price: | Negotiable |
Energy Saving Small Pixel Pitch LED Display Wall Mounted With 3840
Hz Refresh
>> Features
1. H3840hz refresh and high resolution to play 4K video smoothly
2. Black nationstar led lamp to improve the contrast ratio to be
4000:1

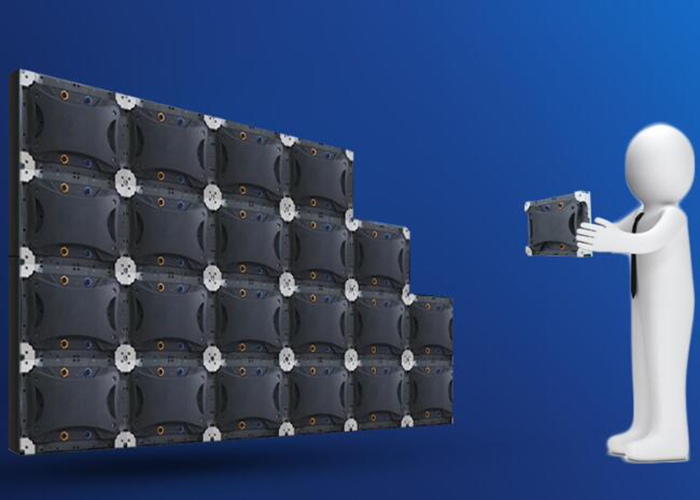

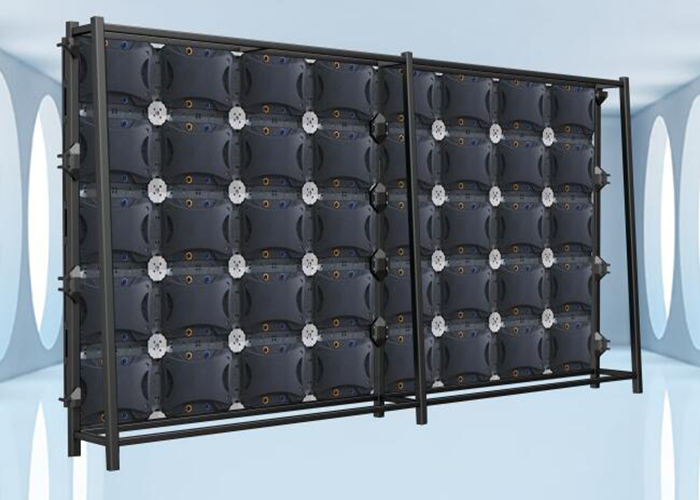

3. Different installation way, standing, wall-mounted,
4. Front access die casting cabinet. can be rear and front access
cabinet.
5. Same Cabinet can be P1.56, p1.66, p1.923
Item | parameters |
Pixel Pitch | 1.667mm |
Pixel Density | 360.000dos/sqm |
LED Package | Nationstar black SMD1010 |
Module Size | 200*300mm |
Module Resolution | 120*180dot |
Cabinet Size | 400*300mm |
Cabinet Resolution | 240*180dot |
Cabinet Wegiht | 4.55kg/pc |
Viewing Angle | 140°/140° |
Viewing Distance | 1.6-60m |
Power Input | AC110V - 220V ±15%, 50HZ |
Max Power Consumption | 815W/sqm |
Ave. Power Consumption | 255W/sqm |
Working Temperature | -20℃ - +60℃ |
Input Source | All Format (HDMI, SDI, DVI,AVI, MPEG,VOB, RM, etc) |
>> After Sales Service
1. More than 1 years warranty
2. Free factory training
3. 24/7H online support
4. Lifetime free repair and technical support
|
