| Categories | Touch Screen LCD Monitor |
|---|---|
| Brand Name: | ZXTLCD |
| Model Number: | ZXT-WST320CG |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Place of Origin: | China |
| MOQ: | 1 Piece |
| Price: | Negotiate |
| Payment Terms: | T/T,Western Union, Alibaba trade assurance |
| Supply Ability: | 3,000 pcs per month |
| Delivery Time: | 5-7 workdays |
| Packaging Details: | wooden case, carton, flight case are option |
| Product name: | Elevator Advertising Display Screen |
| Size: | 32 Inch |
| Install: | Wall Mount |

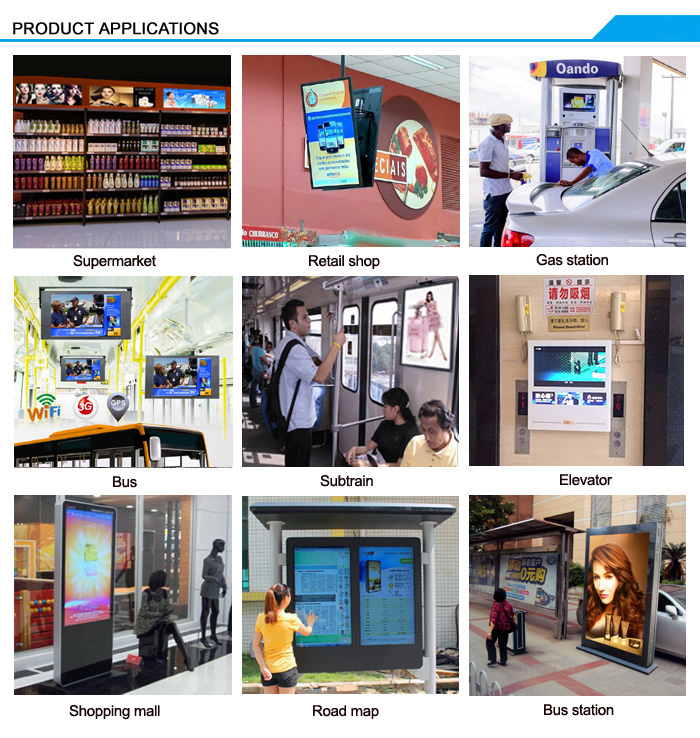

| Application: | Elevator, shopping mall..etc |
| Network: | WIFI, RJ45 |
| Warranty: | 12 months |
| Resolution: | 1920*1080 |
| Company Info. |
| Shenzhen ZXT LCD Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

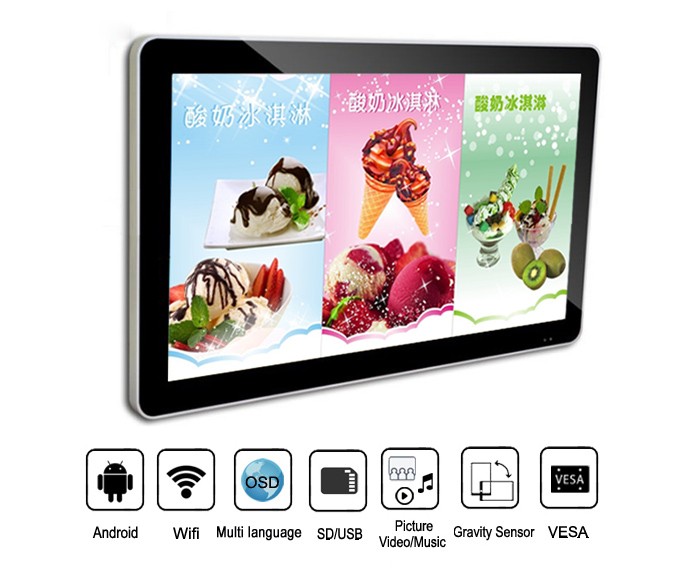

32 Inch Programmable Android Elevator Lcd Advertising Display Screen, Digital Signage Player
Main features and specs.
Main features
| OS: | Android 4.4 or Android 5.1 optional | ||||||||
Hardware | CPU: | Cortex A7 Quad-Core 1.2G | |||||||
| RAM: | 2G DDR3 | ||||||||
| Nand Flash: | Standard 8GB(16GB/32GB optional) | ||||||||
| WiFi module: | Support WIFI 802.11b/g/n | ||||||||
| 3G/4G: | Support 3G/4G (optional) | ||||||||
| GPS: | optional | ||||||||
Managing software: | Optional, you may use your app. | ||||||||
| Playlist editor: | Multimedia contents can play by playlist mode | ||||||||
| Scheduling playback: | Publish task by calendar, then the appointed terminal/terminals would play accordingly. | ||||||||
| Multi-languages: | Support English, French, German, Italian, Swedish, Denmark, Portuguese, Spanish, Japanese....etc | ||||||||

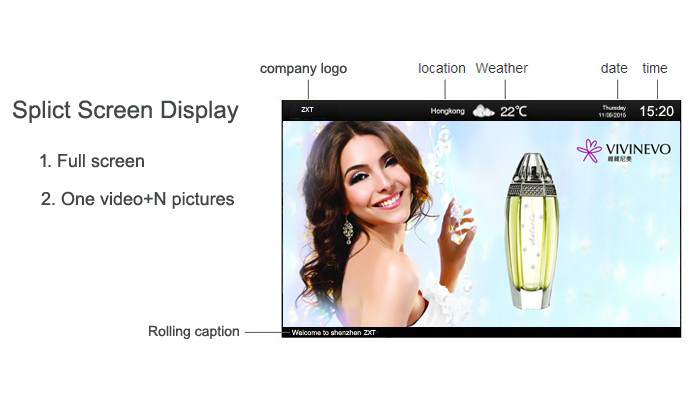

| Multizone display: | Video, photo, text, ppt, word, excel, flash, rss, wheather, clock, website can be display on different areas. | ||||||||
| Timing function: | Set time power ON/OFF and automatically display and loop, 7days and 24 hours no manual operation. | ||||||||
| Protection plate: | Files on SD card can be protected by protection plate from stolen. | ||||||||
| video/picture rotation: | 90/180/270 degree. (vertical display or horizontal display) | ||||||||
| Advanced functions: | Support play log, customer logo | ||||||||

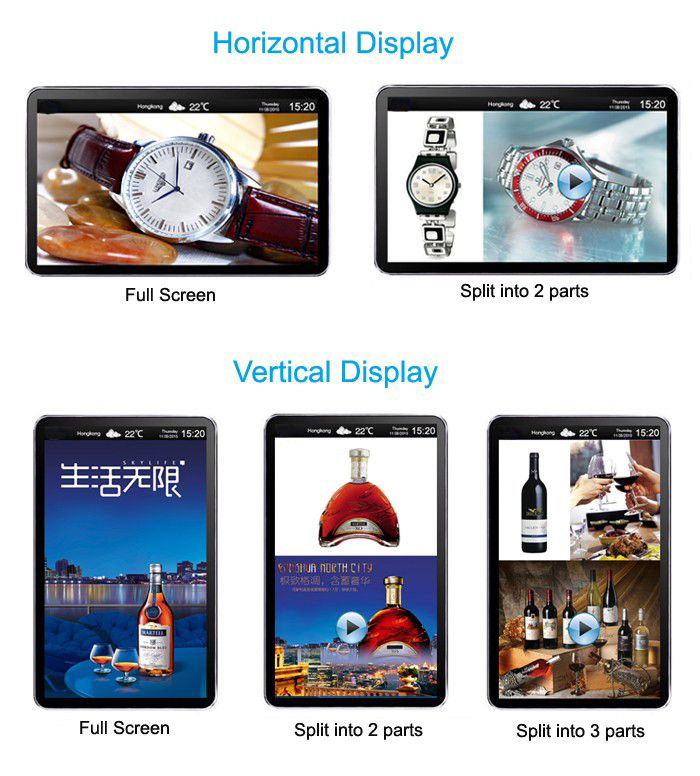

| Display type: | Horizontal or vertical/ landscape or portrait | ||||||||
| Two speakers: | Built-in stereo speakers (2x5W) | ||||||||
| Files update: | Files can be transmitted to SD card memory automatically from server throught network. | ||||||||
| Touch screen: | Optional | ||||||||
| Network options: | LAN/WIFI/3G/4G | ||||||||

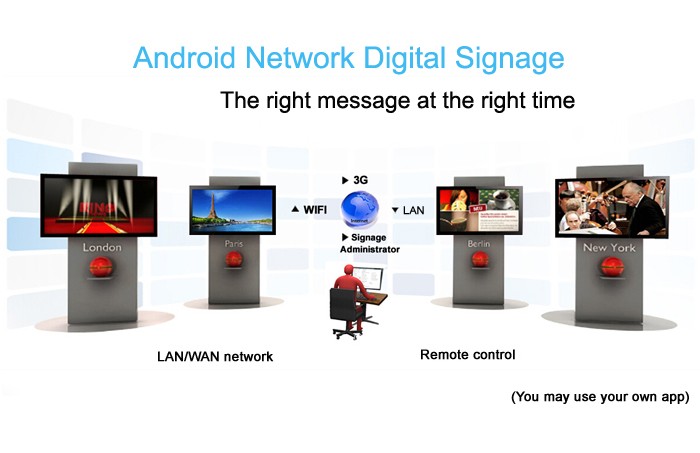

| Management software: | With management software installed in server by which to control and group manage all terminals | ||||||||
| Rolling caption: | Support running marquee function (roll caption, text bar). | ||||||||
| Support memory size: | 8GB-500GB | ||||||||
| Accessories: | User Manual, Adapter, Remote Control, keys, USB dongle, mouting parts | ||||||||
| Warranty: | Standard one year, extra warranty is optional. | ||||||||
Welcome to contact us and get user manual for reference.
More specs
| LCD screen specs | Model Number: | ZXT-WST320CG |
| Screen size: | 32" | |
| Display proportion: | 16:9 | |
| Resolution(Pixel): | 1920*1080 | |
| Display color: | 16.7 M | |
| Response time : | 6.5 ms | |
| Luminance: | 400 cd/m2 | |
| Contrast ratio: | 4000:1 | |
| View angel (L/R/U/D): | 89/89/89/89 | |
| Media Formats | Video: | MPEG1/2/4,AVI,H.264,MOV,MKV,RMVB,RM,TS...etc |
| Audio: | MP3, WMA, WAV, EAAC+, MP2 dec, AC3, FLAC, APE, BSAC | |
| Picture: | JPEG ,BMP ,GIF ,PNG | |
| Others: | WORD, EXCEL, PPT, HTML | |
Power supply | AC Input: | 110-240V |
Power consumption: | 120W | |
| Appearance | Color option: | Black or optional |
| Housing material: | Aluminum frame, tempered glass | |
| I/O interface: | 1*CF card slot, 2*USB, 1*SD card slot, 1*LAN port, Power switch | |
| Installation: | Wall-mounting VESA holes | |
| Unit dimensions: | 805*500*57MM | |
| Active display area: | 698.4*392.85MM | |
| Packing details | Carton size: | 880*580*180 MM |
| Carton: | 1PC | |
| Gross Weight: | 15KGS | |
| Package: | Wooden packing +carton |

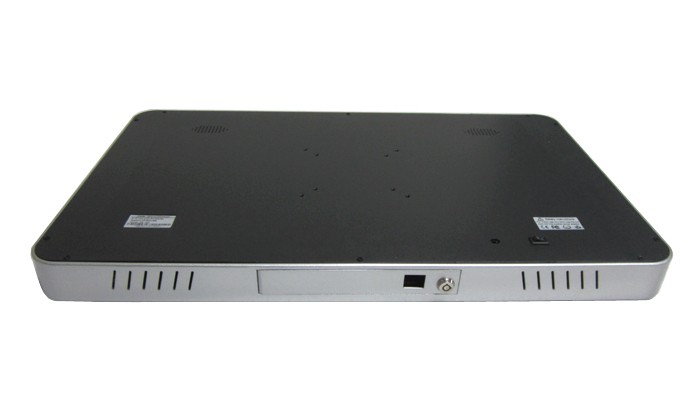

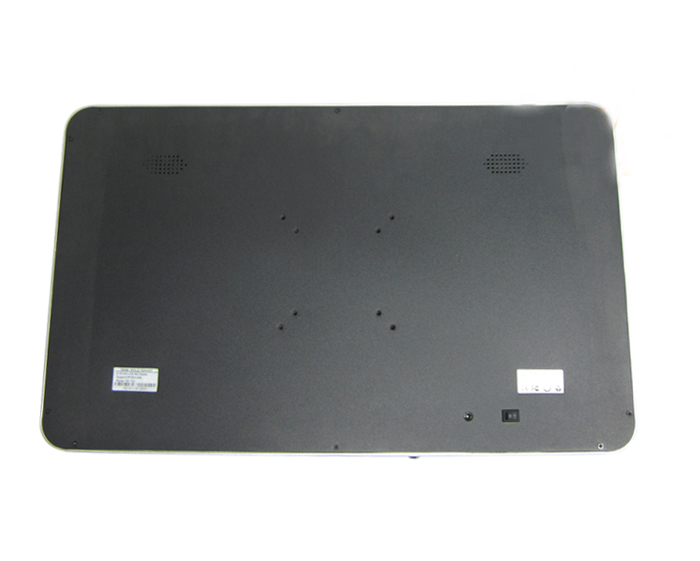

Product view of front, back, side and dimensions.
VESA mounting or standard mounting bracket as options:
|
