Brand Name: | None |
Model Number: | MNS etc. |
Certification: | CE,CCC |
Place of Origin: | China |
MOQ: | 12pcs |
Price: | USD0.5~USD3 |
Payment Terms: | T/T, Western Union |
Supply Ability: | 5,000pcs/month |
Delivery Time: | 5-8 working days or bulk order negotiate |
Packaging Details: | Standard export carton |
Rated Voltage: | up to 1000v |
Ambient temperature: | -40~90 degree Celsius |
Insulation voltage: | 5000V |
Install: | Screw plate mount |
Company Info. |
Wuxi Fenigal Science & Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Busbar Support Insulator MNS Series DMC Material For Low Voltage 3-phase 230V,400V,690V,1000V Electrical Panel
Product Description
Insulator is the special part to fix,install and insulat on
communication, electric power, lightning protection, machinery,
medical, wind energy, frequency conversion equipment,new energy
vehicles (integrated chassis cabinets, locker, etc.) to provide
meet the fixed support, installation and insulation isolation
effect of special parts, it is also known as insulators, insulation
column .Its appearance is usually the
cylinder,hexagonal,round.There is the insert on the two surface of
insulator.
Operating temperature:-40--+140
Insert:Brass.steel with Zn coating
Material:BMC(bough moulding compound)
SMC(sheet moulding compound)
Color,insert,mateerial in capability accordance with customer need.
Specifications

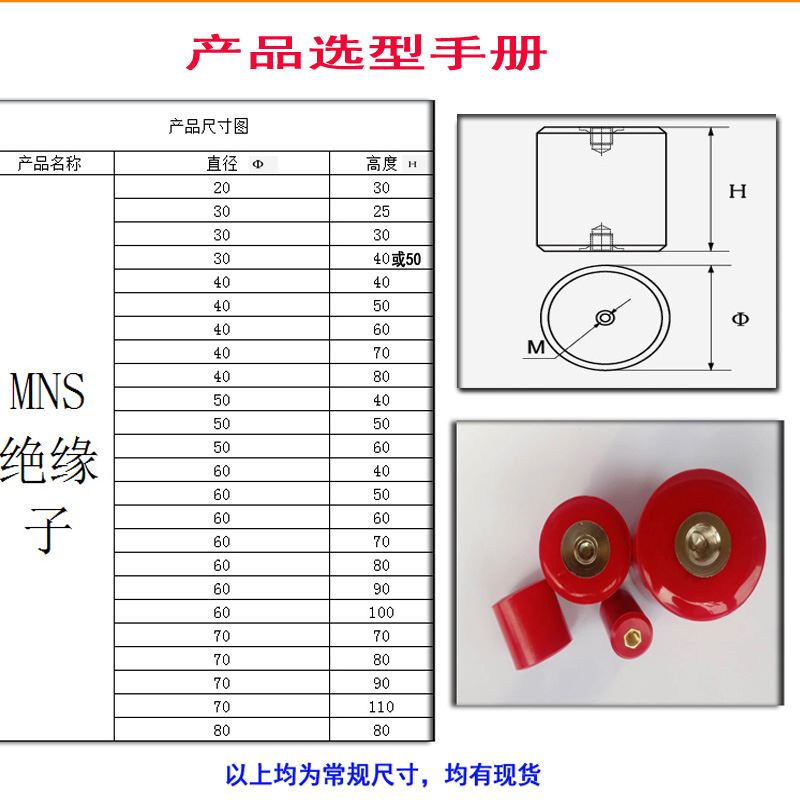

1. Size: MNS20x30, up to MNS70x110
2. Material:DMC 3.Tensile strength:600LBS
Description
1) Made of bulk molding compound, unsaturated polymer with fiber glas
2) Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties

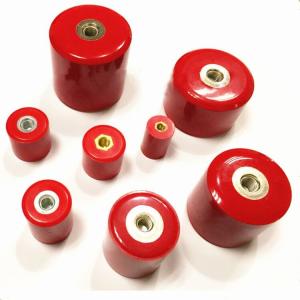

Product Name | cylindrical insulator |
Model | mns3040 |
Material | DMC/BMC |
Type | cylindrical type |
Weight | / |
Dimension | 30*40 |
Color | Customized |
Sample | Free |
Torgue Strength | ≥20 |
Rated Voltage | 660V |
Application | low voltage and high voltage |
Certification | CE,ROHS,UL for material |
Operating Temperature | 30℃~120℃ |
Place of Origin | China |
Advantages:
The products have excellent insulation properties,high
strenght,high temperature resistant,safe and reliable,tated voltage
660V is good choice for low voltage power distribution cabinet
fixed bus.

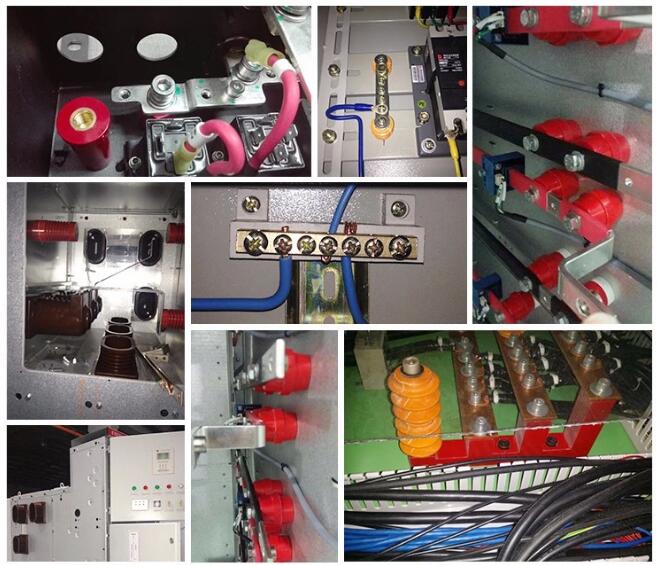

Using SMC unsaturated resin hot pressing. Mainly used for high and
low voltage power distribution cabinet,inverter,power distribution
box,supporting the connecting bus etc.
The product has excellent insulation properties,high strength,high
teperature resistant,safe and reliable,rated voltage up to 660V is
the best choice for low voltage power distribution cabiner fixed
bus.
