1000FT CAT6A Ethernet Network Bulk Cable , Solid FTP RISER COPPER Network Cable 10G 23AWG

1000FT CAT6A Ethernet Network Bulk Cable Solid FTP RISER COPPER 10G 23AWG

Production Description:

Conductor : 4 twisted pairs pure copper wires - each wire diameter AWG23 0.56mm

Each pair is screened by AL-FOIL

Includes Drain wire : Tinned copper

Cable Jacket : LSOH/LSZH (Low Smoke Zero Halogen) Flam resistant test acc. to IE 0332-1

Standard printing on the cable jackt, Out diameter (O.D: 7.5-7.8mm)

Colour Code:

Cable Diameter , Standard Length & Packing:

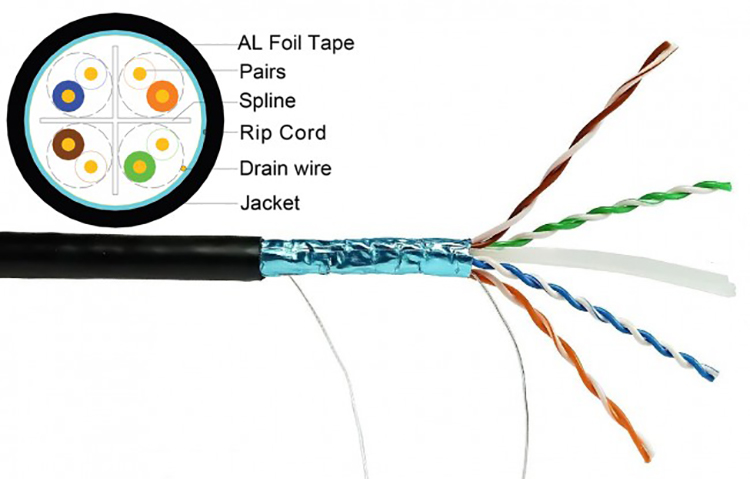

Construction

	1. Conductor material:	Solid bare copper 0.57mm (23 AWG)
	2. Insulation material:	HDPE (High density Polyethylene)
	3. Outer sheath:	PVC
	4. rip cord:	Nylon
	5.Separator:	cross filler
	6. Shielded	foiled

Packaging

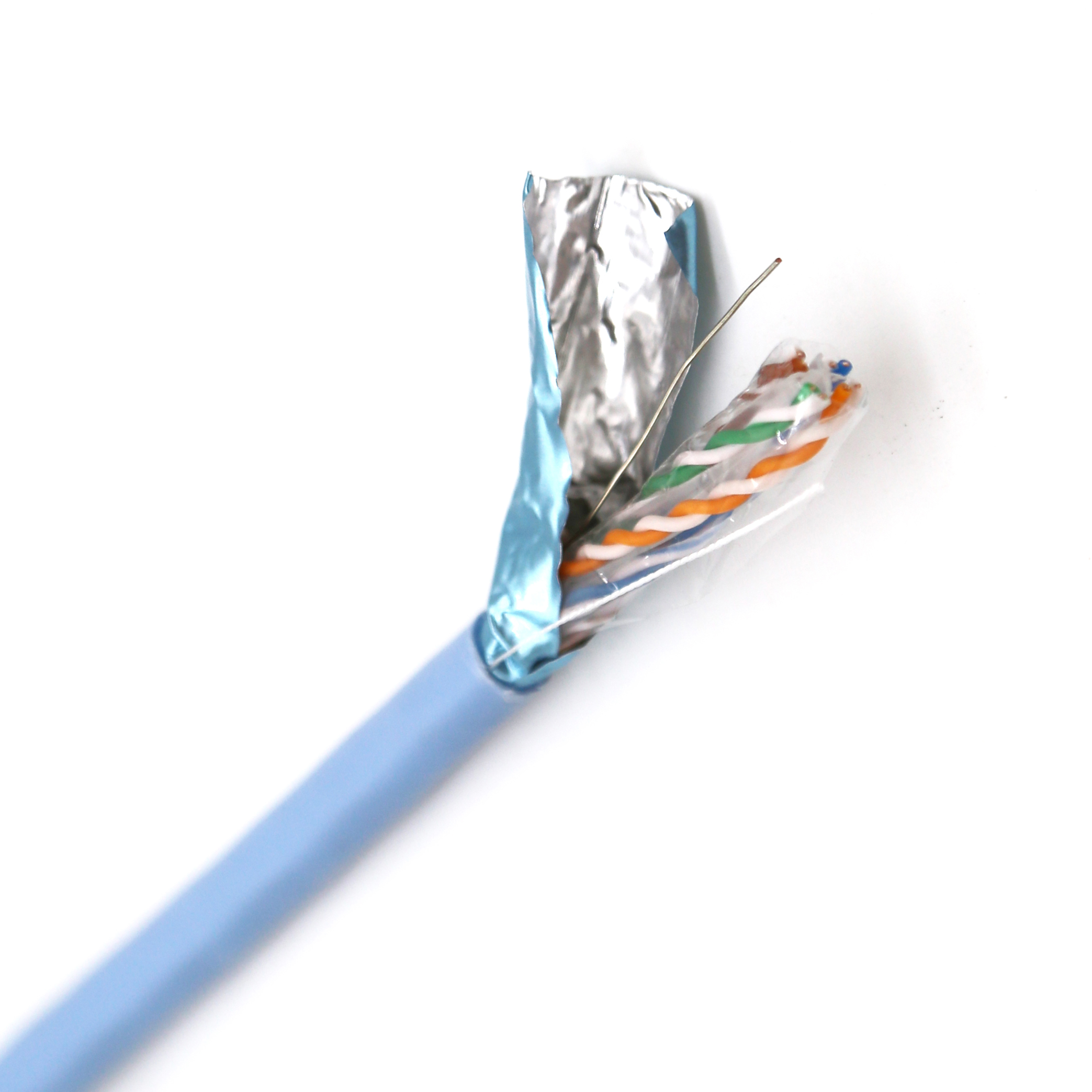

6. Product Image

Company Contact Information:

OUR SERVICE

Our products: 1) PVC Insulation Electrical Wires; 2) XLPE Insulated Power Cables; 3) Medium and High Voltage Power Cables; 4) Aerial Bundled Cables; 5) Mineral Insulated Fire Resistant Cables 6) Control Cables, Instrument Cables, Communication Cables etc. To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc Company established time: Since 1993 26 years of cable manufacturing and sales​ experience Annual sales of about 600 million US dollar 150,000 m2 Production area Over 1000 Will-trained employees 4 industrial parks Over 30 professional engineers R&D team Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106

  “Shenzhen Jinhuanyu Wire and Cable Co., Ltd”, was established in 1993, is a professional manufacturer to engage in the research, development, production, sales and service of Electric Wires, Power Cables, PVC or XLPE Insulated Cables, Mineral Insulated Fire Resistant Cables, Communication Cables, and other Wire & Cables. The company is located in Songgang Sub-district, Bao’an District, Shenzhen Ctiy, China, is a leader enterprise in cables industry in South of China.

Jinhuanyu Cables
1) Bare Conductor, Bare Copper Wire, Bare Aluminum Wire.
2) 450/750V and below PVC Insulateted Electrical Wires and Power Cables.
3) 450/750V XLPE (Cross linked polyethylene) Insulated Electrical Wires and Power Cables.

4) 0.6/1kV PVC Insulated Power Cables.
5) 0.6/1kV XLPE (Cross linked polyethylene) Insulated Power Cables.
6) 8.7/15kV, 3.6/6kV, 6/10kV, 12/20kV, 18/30kV, 26/35kV XLPE(Cross linked polyethylene) Insulated Power Cables.
7) 450/750V and below Control Cables.
8) 1kV Aerial Bundled Cables.
9) 10kV Aerial Bundled Cables.
10) Aluminum Cables, AAC (All Aluminum Cables), AAAC (All Alloy Aluminum Cables), ACSR (Aluminum Conductor Steel Reinforced Cables).
11) Fire Resistant Cables, Fire Retardant Cables, Fire Rated Cables, LSZH (Low Smoking Zero Halogen) Cables, RoHs Cables, and Environmental Protection Cables.

12) Other Special Electrical Wires and Power Cables: Irradiation Cross-linked Cables, Frequency Converter Cables, Corrugated Aluminum Armored Cables, Rubber Cables and other Wires and cables.

13) Communication Cables:

a. Network Cables: Cat 5, Cat 5e, Cat 6 Cables;
b. Telephone Cables: 2 Pairs, 4 Pairs, 8 Pairs Cables;
c. Coaxial Cables: SYV75-5, SYWV75-5, RG 6, RG 11, RG 59 Cables.
