One Unit Design Plastic Resin Dryers , Stainless Steel Dryer THD Series

Categories Mixed color metering series
Brand Name: TOP-Star
Model Number: THD Series
Certification: ISO9001,Europe-CE,
Place of Origin: China
MOQ: 3sets
Price: Negotiable
Payment Terms: T/T
Supply Ability: 300per month
Delivery Time: 10 working days
Packaging Details: wooden case
Applicable processs: injection molding, extrude molding
SPecial: clear material, Optics product
Time control: 24 hours auto start/stop timers as standard.
Easy clear: Hopper barrel separated from its base for easy cleaning
Safety Device: Safety device with overheat and overload protection.
Drying mode: Drying under the principle of hot air down- blowing and cyclone air exhausting result in consistent drying effects evenly.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

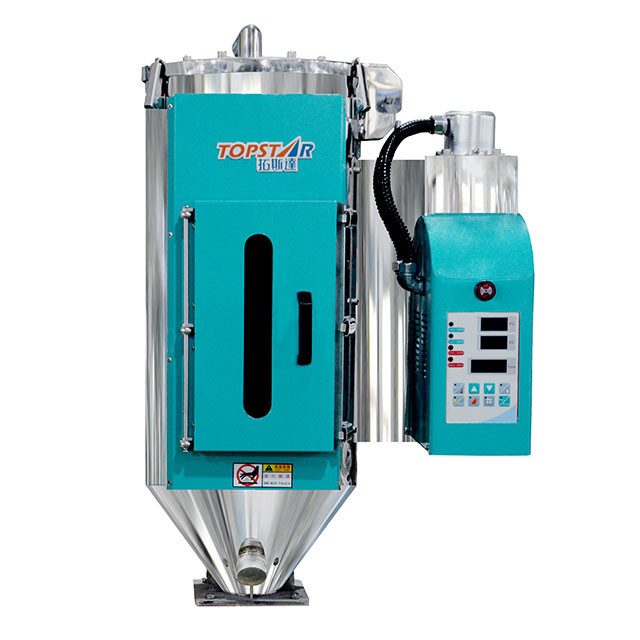

One Unit Design Plastic Resin Dryers , Stainless Steel Dryer THD Series

THD Series Stainless Hopper Dryers

Stainless and polished one-unit design ensures material free from contamination.Itadapts "Hot Air Down-Blowing" and "Cyclonic Air Exhausting" principle to ensure uniform dry efficiency. All these models are particularly for optics.

Practical New Patent for Stainless Hopper Dryers
Patent No:ZL 201120302379.3


Features

◆ Double - layer stainless steel hopper dryer features with superior temperature keeping to improve energy saving greatly.
◆ The material inlet lid of hopper is equipped for easy installation of auto loader.
◆ Drying under the principle of hot air down- blowing and cyclone air exhausting result in consistent drying effects evenly.
◆ Adjustable overheat safety thermostat.
◆ Main power isolator externally installed as standard.
◆ Hopper barrel is fitted with see-through windows to observe inside material level.
◆ Hopper barrel separated from its base for easy cleaning .Safety device with overheat and overload protection.
◆ 24 hours auto start/stop timers as standard.


ModelTHD-6DTTHD-12DTTHD-25DTTHD-50DTTHD-75DTTHD-100DTTHD-150DTTHD-200DTTHD-300DTTHD-400DTTHD-500DTTHD-600DTTHD-800DTTHD-1000DTTHD-1500DTTHD-2000DTTHD-2400DT
hopper capacityKG6122550751001502003004005006008001000150020002400
blower powerW7575135155210215320320340340340100015001500220022003700
Heater powerKW.91.83.04.04.06.09.012.015.018.021.021.024.032.048.048.032.0
Dryer Temp150℃ ( 150~180℃ by Option)
Outlet sizeInch1.51.51.5222.52.52.5333445556
Inside hoppermm2102502873874224575126076707608569009001000120012001400
Outside hoppermm2532933304304655005956907548449409859441050125012501500

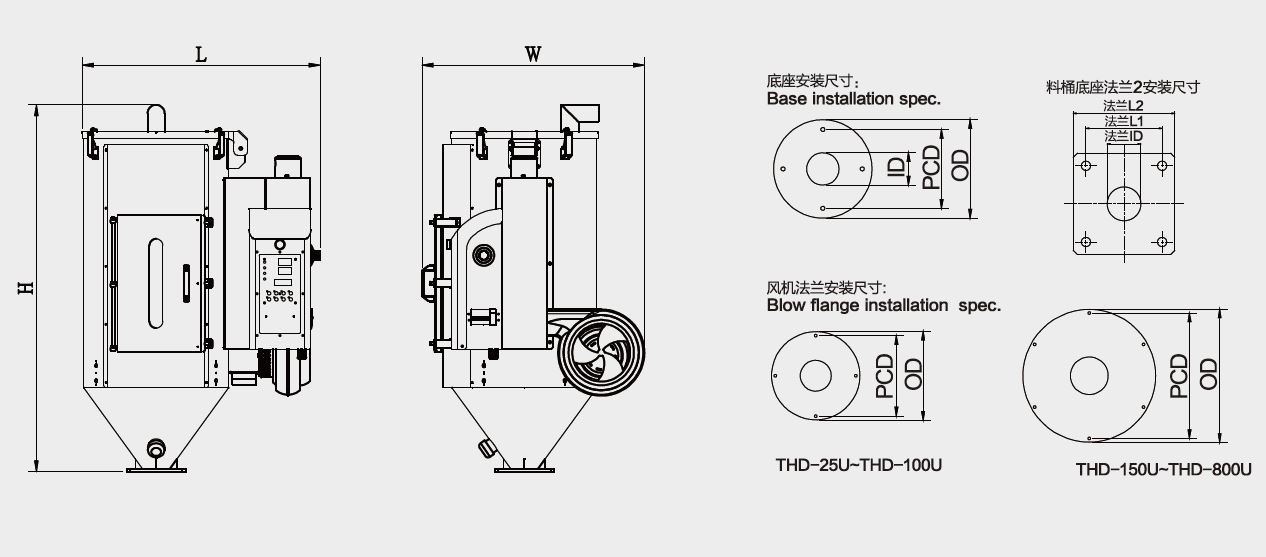

Flange ID diamm4040505065656576100100100100110110110110110
Flange PCD diamm9060125X125130X130130X131130X132130X133150X200210X250210X250200200200200200210X250
Flange OD diamm120120X120175X175175X176175X177175X178175X179175X180175X181180X245180X245250X300230230230230250X230
Blower PCD Diamm70136163208254270
Blower OD diamm100148180220270300
Power supplyV380V AC3P/PE 50HZ
Control voltageV220V AC1P/PE 50HZ
Total PowerKW12.13.44.44.46.49.512.515.518.521.522.525.533.850.550.636
wires specificationmm25X1.55X2.54X4+1X2.54X6+1X44X10+1X63X16+2X103X25+2X163X16+2X10
wires cable LengthM5
Outside DimensionsL (m)0.490.5250.6050.7150.740.80.951.051.141.26.1.361.491.861.351.551.552.18
W (m)0.360.360.570.660.670.690.850.90.910.981.051.11.251.051.251.251.62
H (m)0.550.650.881.091.261.3851.551.641.761.862.022.572.752.52.83.34.11
Total weightkg303047636595130155186225260280320380500580650
Optional Accessories

1. Magnetic Seat. 2.Hopper Magnet 3.Hot air recycler 4. Exhaust air filter 5. Type floor stands 6. A type floor stands 7. Material suchion box
