| Categories | High Brightness LCD Display |
|---|---|
| Brand Name: | Maxbright |
| Model Number: | OF240EDCL |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union |
| Delivery Time: | 4~5 weeks |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Certification: | CE |
| Price: | Negotiable |
| Supply Ability: | 100 pcs / month |
| Panel Type: | a-Si active matrix TFT-LCD |
| Resolution: | 1920 x 1200 |
| Brightness: | 1000 nits |
| Power Consumption: | 80 Watt |

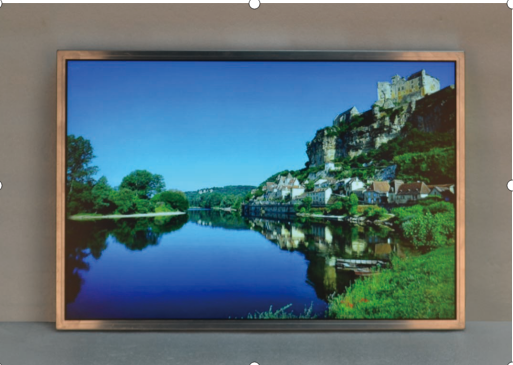

24” High Bright Open Frame LCD Module Model:OF240EDCL
LED Edge Type Backlight Enhanced
Model:OF240EDCL
FEATURES:
Bright Active Matrix TFT-LCD Display
1920 x 1200 Max. Resolution
Digital or Analog Interface
Wide Viewing Angles 178 deg (L/R)
1000 nits, Completely Sunlight Viewable
2 Channel LVDS Interface
Aspect Ratio: 16:10
Main Specs of 24” HB Open Frame Module
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 518.4 x 324.0 mm |
| NATIVE RESOLUTION | 1920 x 1200, VGA to WUXGA resolution |
| PIXEL PITCH | 0.270(H) x 0.270(V) mm |
| COLOR | 10 bits 1.07 Billon |
| BACKLKGHT TYPE | LED Array Direct type |
| BRIGHTNESS | 1000 cd/m2, Sun Light Viewable |
| CONTRAST RATIO | 1000:1, Dynamic contrast ratio up to 5000:1 |
| DIMMING | 100% - 5% Auto dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 12ms typical, |
| INTERFACE | VGA, AV, S-video, HDMI |
| LIFETIME | 40,000 hrs typical |
| OPERATING VOLTAGE | 100-240 VAC |
| POWER CONSUMPTION | 80 Watt at Highest Brightness Level 1000 nits |
| STANDBY MODE | 3 Watt or less |
| ACCESSORIES | AC Power Cord, VGA cable, |
ENCLOSURE (Option) | Alu block milled front, alu sheet folded backcover IP54 Waterproof |
MODULE DIMENSION WEIGHT | 546.4(W) x 352(H) x 75(D) mm after HB modified, 5 Kg approx |
MEDIA PLAYER (OPTION) | media player with 4G SD card, USB update, Ethernet or WiFi option |
TEMPERATURE (OPTION) | Operating: -20-50C, Wide temp. -35-50C with internal heater, |
| Storage Temperature -30-65C | |
| HUMIDITY | Operating Humidity 10%-85% |
| Storage Humidity 5%-90% | |
| WARRANTY | 1 Year |
|
