Waterproof Anti Vandal Push Button Switch , 16MM Push Button On Off Switch

Categories Anti Vandal Push Button Switch
Brand Name: YUESHUN
Model Number: LA16F-11/L
Certification: CE RoHS
Place of Origin: Wenzhou, China
MOQ: Negotiable
Price: Negotiable
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Delivery Time: 3-7 work days
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Color: Black
Body Material: Oxidized Aluminum
Protection Level: IP67
Mechanical life: More than1,000,000 cycles
Operation type: Momentary or Latching
Operating Temperature: -20℃~+55℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Waterproof Anti Vandal Push Button Switch , 16MM Push Button On Off Switch

Black Oxidized Aluminum Anti Vandal Push Button Switch 16MM On Off Momentary Waterproof switches


Product Description

- Our waterprpof push button switches are famous in many sites, you can find them all round you. When you in the kitchen, you find them on cooking coffee maker, dishwasher. When you get outside, you find them on elevator or a car. Now you go to a work, you start the computer, it’s there. After working you go to a supermarket or bank, it will show up too. Your choice is right.
- Enclosure Material: Stainless Steel;High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
- Latching/Self-locking button: Press the power on, release the hand, and keep the button still (light on); Press the button again to make it pop upand disconnect the power (light off);

- Momentary button: Press the power on, release the hand power on of off, the button spring to original position.


Product Specification

Model NumberLA16F-11/L
Mounting Hole16mm
Max.Switch RatingIth : 5A Ui : 250V AC
MaterialBody Material: Aluminum
Button Material: Aluminum
Contact Material: Silver Alloy
Base Material: PBT
The Front ShapeFlat Round Head
Terminal TypePin Termlmal ( 2.5 * 0.5 mm )
Switch OperationMomentary or Latching are available
Contact Configuration1NO + 1NC or 2NO + 2NC are available
Mounting panel thickness1-10 mm
Operation DistanceAbout 2.8 mm
Protection LevelIP67
Operating Temp-20℃~+55℃

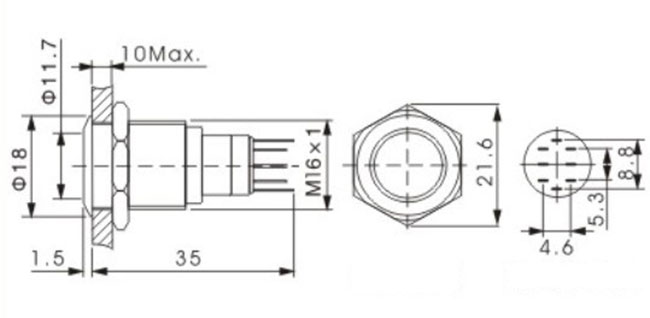

Size
