| Categories | Fiber Optic Transceiver |
|---|---|
| Brand Name: | HICORPWELL |
| Model Number: | HDMI fiber optical extender HDMI to fiber converter HDMI transmitter HDMI receiver |
| Certification: | IEC 60794-2-10/11 |
| Place of Origin: | China |
| MOQ: | 1 pair |
| Price: | negotiation |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 1000pcs Per Week |
| Packaging Details: | Size : 85x52x22mm with two parts-the HDMI transmitter and HDMI receiver |
| HDMI resolution: | 1080p/720p/576p/480p |
| Distance: | 20/40/80km(SM fiber)/ 550M(MM fiber) |
| Wavelength: | 1310nm&1470nm~1610nm |
| Supports: | HDMI / DVI interface |
| Output Cable Length: | ≤20m AWG26 HDMI 1.3 standard cable |
| Power: | 5-24 VDC |
| I/O Connector: | HDMI / DVI |
| Dimension: | 85x52x22mm |
| Input Cable Length: | ≤20m AWG26 HDMI 1.3 standard cable |
| Company Info. |
| Shenzhen Hicorpwell Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

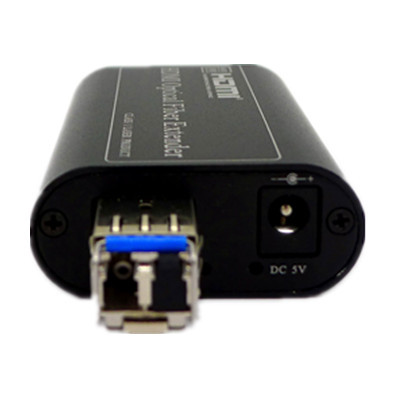

HDMI fiber optical extender HDMI to fiber converter HDMI transmitter and HDMI receiver
The Compact HDMI fiber optical extender, also named as HDMI to fiber converter,
which includes two parts-the HDMI transmitter and HDMI receiver,
is an perfect optical transmission solution for 1080P HDMI.
Through a single-mode or multi-mode fiber it transmits the non-compressed
1080P HDMI high-definition audio and video to the far away without delay.
Although under high 70 ℃ temperature environment, it can be stable operation.
This product supports uncompressed 1920 × 1080 60Hz HDMI / DVI real-time transmission,
the maximum transmission distance of up to 80 km (single-mode fiber) / 550 m (multimode fiber).
Products can be used in broadcast photography, video conferencing, multimedia information release,
government departments, medical systems, commercial display, multimedia functions, public utilities and other fields.
Features
1, support HD resolution 1920 × 1080 60Hz.
2, the optical fiber transmission distance of up to 80 km (single-mode fiber) / 550 m (multimode fiber).
3, single-core fiber transmission, no need to drive, plug and play.
4, the device supports HDMI / DVI interface
Product specification:
Video | I/O connector | HDMI / DVI |
| HDMI version | HDMI1.1 1.2 1.3 | |
| HDCP | HDCP1.2 | |
| HDMI resolution | 1080p/720p/576p/480p | |
| Video color format | 24bit/deep color 30bit/deep color 36bit | |
| Audio format | DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD | |
| TMDS | 0.5-1.5Vp-p(TTL) | |
| DDC | 5Vp-p(TTL) | |
| Input cable length | ≤20m AWG26 HDMI 1.3 standard cable | |
| Output cable length | ≤20m AWG26 HDMI 1.3 standard cable | |
| Optical | Connector | LC |
| Wave length | 1310nm/1550nm | |
| Distance | 20/40/80km(SM fiber)/ 550M(MM fiber) | |
| Physical | Size (L× W ×H) | 85x52x22mm |
| Case | Aluminum | |
| Color | Black | |
| N.W. | 0.4Kg | |
| Power | Voltage | 5V DC |
| sender power consumption | 3.5W | |
| receiver power consumption | 3.5W | |
| Environment | Working temperature | -20℃-70℃ |
| Storage temperature | -40-85℃ | |
| Humidity | 0-95% (non-condensing) |
|
