| Categories | Cobalt Alloy Castings |
|---|---|
| Brand Name: | Eternal Bliss |
| Model Number: | EB015 |
| Certification: | ISO9001-2008 |
| Place of Origin: | China |
| MOQ: | 30 kg |
| Price: | USD80/kg ~ USD120/kg |
| Payment Terms: | by T/T or L/C, Western Union |
| Supply Ability: | 100,000,000.00 |
| Delivery Time: | It depends on the quantity to be ordered. |
| Packaging Details: | Pallets |
| Product Name: | Round Bar |
| Material: | Cobalt Alloy |
| Size: | OD55x300mm |
| Application: | Sucker Rod Pump |
| Usage: | Oil and Gas Industry |
| Quality Control: | 100% Inspected |
| Service: | OEM ODM |
| Company Info. |
| Eternal Bliss Alloy Casting & Forging Co.,LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

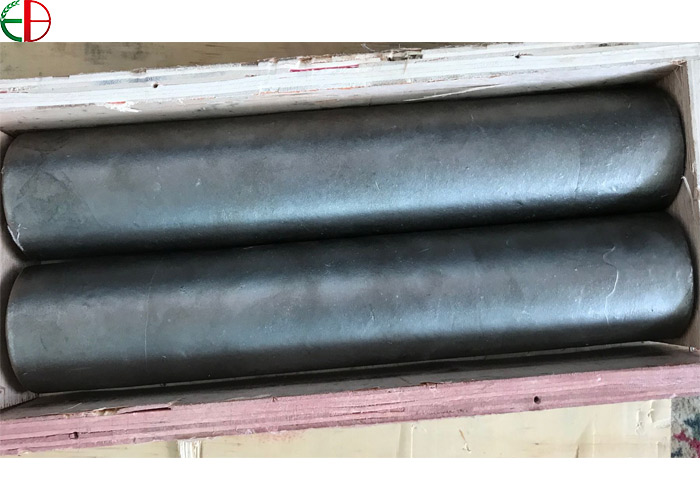

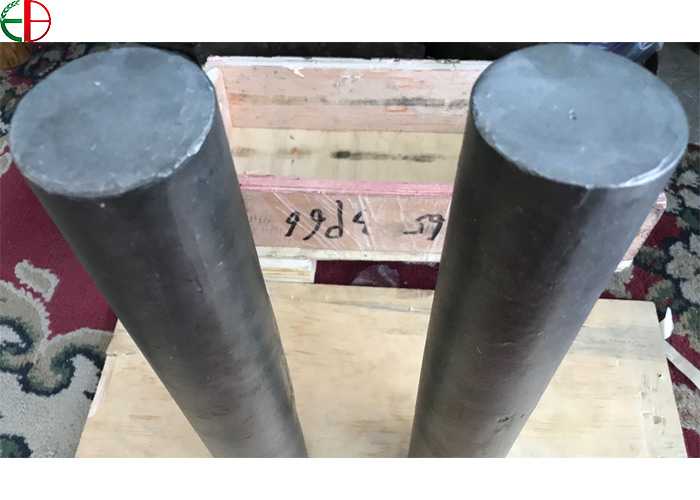

Cobalt Alloy Casting Shaft Block and Round Bar for Oil Industry and Valve Ball EB015
1. Product Name: Cobalt Alloy Casting Shaft Block and Round Bar for Oil Industry and Valve Ball EB015
2. Material Grade: Cobalt Alloy
3. Size:OD55x300mm
4. Surface Finish:Ra100
5. Dimensional Tolerance:CT12
6. Application:oil and gas industry
7. Chemical Composition:
| Composition (%) | C | Si | Fe | Mo | Ni | Co | Mn | Cr | Hardness HRC |
| ≤1.20 | ≤1.20 | ≤3.00 | ≤1.00 | ≤3.00 | ≤Bal | ≤1.00 | ≤29.00 | ≥37 |
8. Cobalt Alloy 6 Physical property (Room Temp.):
| Density (lb/in³) | Specific Gravity | Solidus | Liquidus | Specific heat (J/kg·K) | Magnetic Permeability | Electrode Potential | Electrical Conductivity | Electrical Resistivity |
| 0.305 | 8.46 | 2340°F | 2540°F | 0.101°F Btu/lb- | <1.2@200 Oersteds | -0.25 Volts | 1.9%IACS (Int.Annealed Copper Std.) | 41.73 microhms-inch |
9. Thermal Properties-Conductivity & Expansion:
| Thermal Expansion Coefficient | Thermal Conductivity by Temperature | ||||||
| °F | Microinch/ inch-°F | °C | Microns/ m-°C | °F | Btu/ft2/in/ hr/°F | °C | W/mk |
| 212 | 6.3 | 100 | 11.34 | 70 | 102.7 | 21.11 | 14.82 |

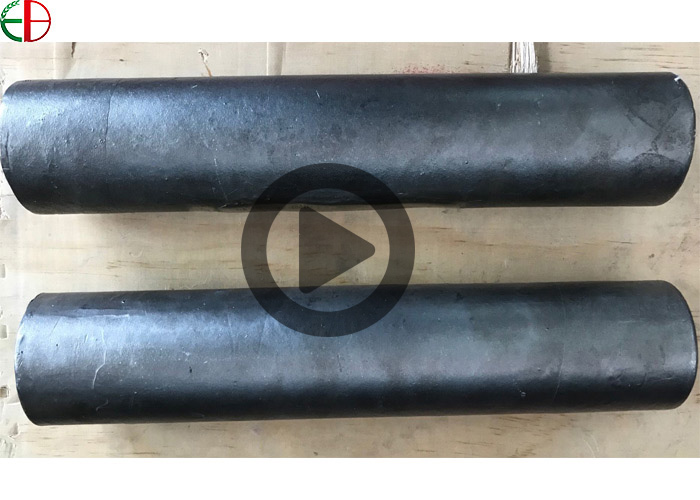

10. Video for Cobalt Alloy Casting Shaft Block and Round Bar for Oil Industry
and Valve Ball:
|
