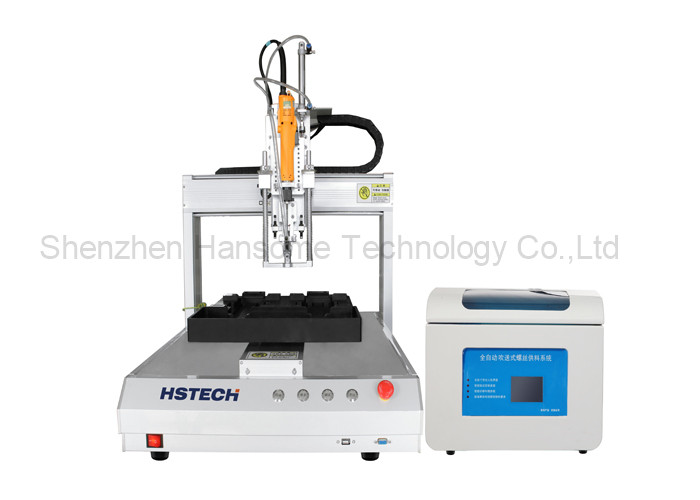

Blowing Type Format File Single Platform Auto Feeding Screw Locking
Machine
Introduction
This screw locking/fastening machine using bolwing type feeding,
equipped with a smooth screw feeder, the screws absord the screws
into the pipe, and to the electric batch automatically, to achieve
the automatic operation, the machine is desktop, which can see the
whole process by eyes.
Specification
| Model | HS-SL331 | HS-SL441 |
| Production name | Automatic Screw Locking Machine |
| Moving range(X/Y/Z) | 300*300*100mm | 400*400*100mm |
| X/Y axis moving speed | Closed loop motor :1-800mm/s |
| Z axis moving speed | Closed loop motor: 1-300mm/s |
| X/Y axis max load | Closed loop motor: 5KG |
| Z axis max load | Closed loop motor: 3KG |
| Power supply | AC110V/220V, 50/60Hz |
| Repeat accuracy | ±0.02mm |
| Document support | CAD CorelDraw |
| Suitable screws | M1-M5 |
| Machine dimension | 546*585*800mm | 646*685*800mm |
| Machine weight | 35kg | 40kg |
Features
1, Air blowing type feeding, more efficiency.
2, Desktop and visible operation, can connect the automatic
production line.
3, The handheld box adopts 320*240 high-resolution color screen and
full English operation interface, easy to learn and use.
4, The machine standard use blowing feeding, but also available for
suction feeding.
5, Support multiple screw bins in suction mode.
6, Support extended applications, such as locking screw dispensing,
welding, testing, handling, assembly, etc.
7, Available for multiple axis and double platform options.
8, With regional array replication, platform replication, batch
editing, single-step operation and other functions.
9, After the operation parameters are edited, the action parameters
are downloaded to the controller through the serial port, and the
operation can be performed offline. Action parameters can also be
saved In the hand-held box, easy to call.
10,The machine can store hundreds of processing files, each file
can support 1000 screw bits, you can call it out when you use it.
About Us:
Shenzhen Hansome Technology Co.,Ltd is a professional SMT board
handling equipment (Loader,Unloader,Buffer Conveyor,Soldering
Machine,Screw Fastening Machine,PCB Depaneling
Machine,etc)manufacturer.
We are a high-tech enterprise with independent intellectual
property riahts, the company is mainly enaaged in the research and
development, production and sales of SMT/THT production line board
handling equipment.
We have more than 10 years' professional SMT industry experience.
With strict production,inspectiondebugging and packaging process,
we insist on providing clients with good service pre-sales,
in-salesand after-sales services. We have professional QC person to
check the quality of the equipment andspare parts. After
manufacturing, all equipment will be carefully tested and debugged
before shipment.
