| Categories | Utility Trailer Axles |
|---|---|
| Brand Name: | ZHUIYE |
| Model Number: | Trailer Axle |
| Certification: | ISO/TS16949 |
| Place of Origin: | CHONGQING |
| MOQ: | 10 |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500SETS Per Week |
| Delivery Time: | As per quanity |
| Packaging Details: | Pallets, Wooden Case |
| Loading: | 1-6T |
| Track: | 1200mm 1600mm |
| Brake: | Available |
| Bearing: | 30205-20207/30206-30209 |
| Weight: | 35-120KGS |
| Axle Beam: | Square/Round |
| Application: | Agricultural Trailer |
| Packing: | Pallets, Wooden Case |
| OEM/ODM: | Available |
Agricultural Axle With Brake or Without Brake Light Loading Trailer Axle
Trailer Axle Parameters
Capacity | Track | Axle Beam | Brake lever | Brake Spec.(mm) | Wheel Fixing(mm) | Bearing | Weight(Kg) |
1 | 1600 | ¨40 | no | no | 4×M14×φ130×84 | 30205-20207 | 35 |
1.5 | 1600 | ¨45/○45 | no | no | 6×1/2"×φ139.7 | LM68149/10 | |
2 | 1600 | ¨50/○50 | no | no | 6×1/2"×φ139.7 | 25580/20 | |
3 | 1600 | ¨50 | 470 | 255×60 | 6×M18×φ205×160 | 30206-30209 | 65 |
5 | 1600 | ¨60 | no | no | 6×M18×φ205×160 | 30207-30211 | 60 |
5 | 1600 | ¨60 | 470 | 255×60 | 6×M18×φ205×160 | 30208-30211 | 100 |
6 | 1600 | ¨70 | no | no | 6×M18×φ205×160 | 30208-30213 | 85 |
6 | 1600 | ¨70 | 470 | 300×60 | 6×M18×φ205×160 | 30208-30213 | 120 |
The track can be customized according to customer's request. | |||||||
Trailer Axle Introduction
Chongqing Xianyou Technlogy Development Co. Ltd. is the professional manufacturer of axles. We have been devoted to development, design and manufacture axle and semi trailer products since 1998. Trailer Axles are available in different lengths and hub faces. Coated with standard black paint. Axle seats and lug nuts come loose with axle. Axle seats and lug nuts come loose with axle. Trailer axle assembly contains trailer axle beam with pressed in spindles and four bolt mount brake flange, hubs (races pressed), bearings, grease cap, and grease seal, axle seats, and lug nuts.

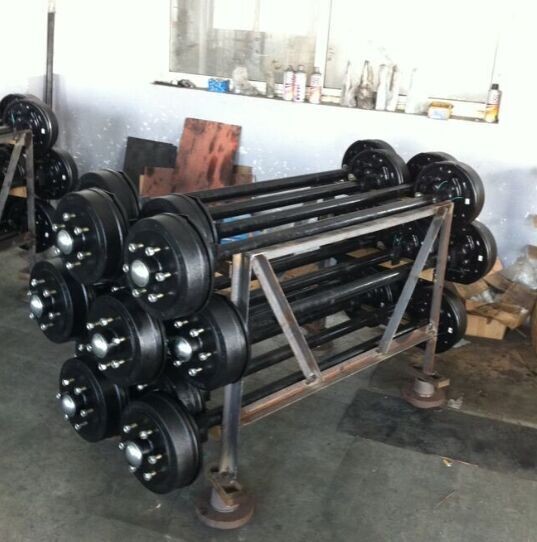

Trailer Axle More Pictures
Trailer Axle Packing
Tralier axle can be packed by can be packed by felt, pallet, felt+pallet, felt+wooden box or any other packing as per your requirements. Trailer axle usually chooses containerized sea shipping in quantity delivery or air delivery in sample orders.
Trailer Axle Installation
FAQ
1. Are you manufacturer?
Yes. We are one of leading manufacturers in axle design&development.
2. Do you have stock products to sell?
Yes, a few. And we also offer OEM&ODM service. Please send us your drawing.
3. What information needed to get axle quotation?
a). Trailer max loading.
b). Pictures of your axle from different views.
c). Packing&Shipping requirements.
d). Quantity needed.
4. Do you inspect the finished products?
Yes. Each step of production will be carried out inspection by QC department until finishing.
|
