| Categories | EDFA Optical Amplifier |
|---|---|
| Brand Name: | Fibery |
| Model Number: | FY-40EA19 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1SET |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram,Paypal |
| Supply Ability: | 10000SET/Month |
| Delivery Time: | 4-6 work days |
| Packaging Details: | carton box |
| Product name: | Fiber Amplifier Module |
| Optical connector: | SC/APC,SC/UPC |
| Output level: | >80dBuV |
| Wavelength: | 1540~1560nm |
| Output power: | 13~23dBm |
| Input power: | -5~10dBm |
| Power suppl: | DC5V |
| Applications: | FTTP,FTTH |
EDFA Erbium Doped Fiber Amplifier Module Indoor Mini CATV DBC 1550nm EDFA Module
Description
1. Indoor Mini CATV DBC EDFA 1550 nm Fiber Optical Amplifier Module
2. WS-40EAxx DBC EDFA is the design according to the communication level standard, in terms of power, precision and reliability are higher than 14EA series. It is mainly used for television image signals, digital TV, telephone voice signal and the signal of the data (or compressed data) optical fiber transmission over a long distance.
3. WS-40EAxx Indoor Mini CATV DBC EDFA 1550 nm Fiber Optical Amplifier Module performance indicators meet the requirement of national standard, and technology design pays attention to the product cost, is the choice to build a large and medium-sized 1550nm catv optical fiber transmission network economical transmission device.
Parameter
| Technical Data | WS-40EAxx Mini EDFA |
| Wavelength | 1540~1560nm |
| Input Power Range | -5dBm~+10 dBm |
| Normal Input Power | +3 dBm |
| Output Optical Power | 13dBm~26dBm |
| Optical Connector | SC/APC & SC/PC |
| Optical Power Stability | +0.05dB |
| Return Loss(Input/Output) | ≥45dB |
| Pump Leak(Input/Output) | ≤-30dB |
| Supply Voltage | DC5V |
| Consumption | <3.5W |
| Working Temp. | -5℃~+55℃ or customized |
| Relative Humidity | 95%,no condence |
| Storage Temp. | -30℃~+70℃ |
| Net Size | 231X85X19mm |
| Net Weight | 417g |
Product Feature
Application
1. CATV FTTH
2. Integration of three networks
3. FTTH PON

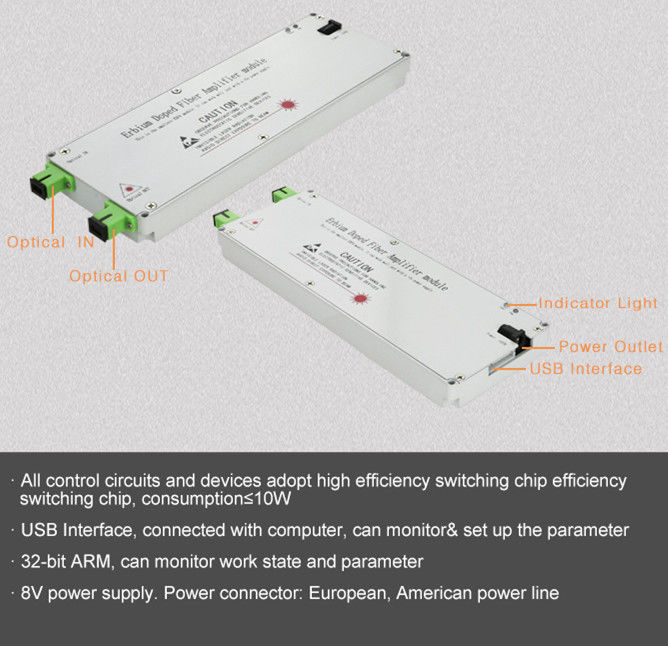

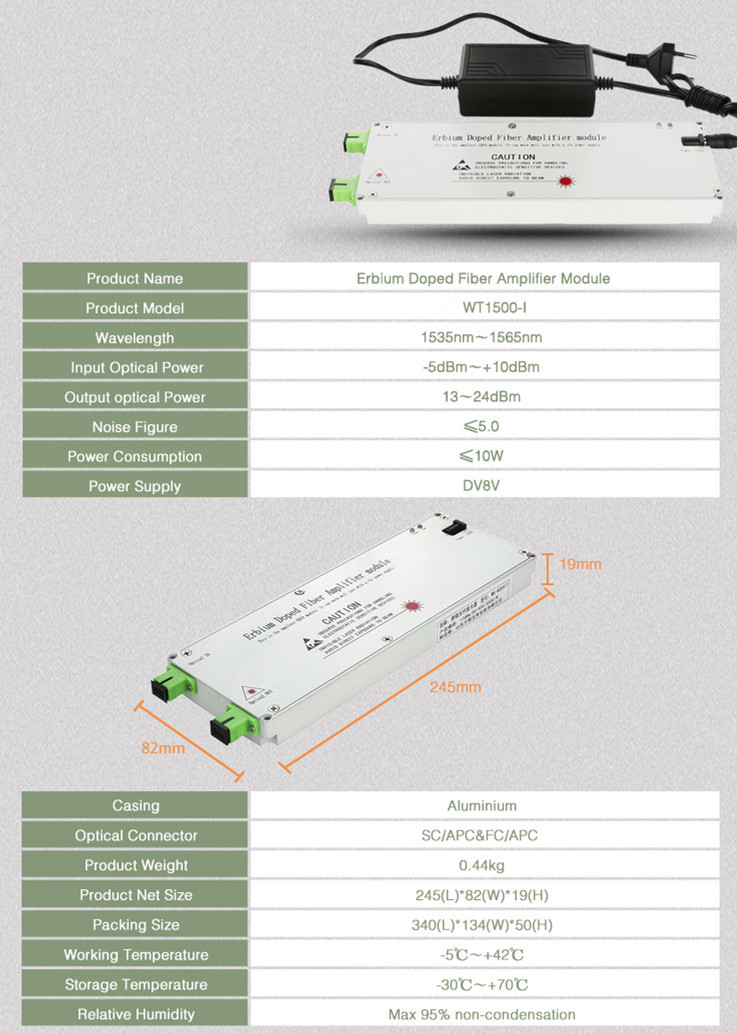

Product Pictures
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
|
