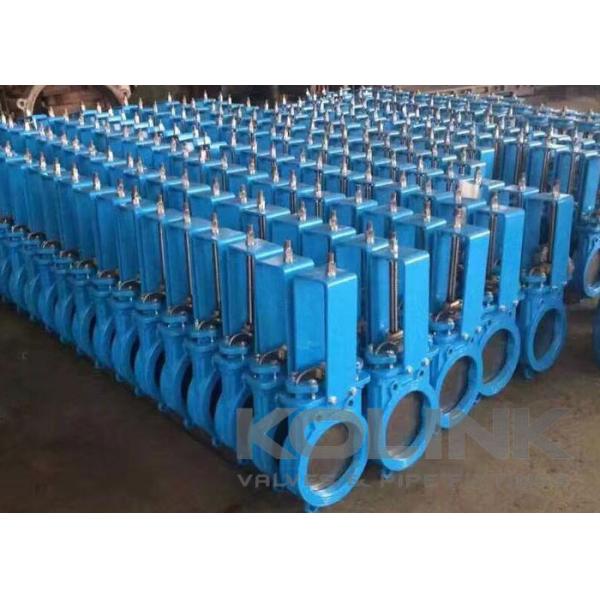

Non-rising Stem Lugged Knife Gate Valve Cast Steel Pillar Yoke Type Wear Resistant

Non-rising Stem Lugged Knife Gate Valve Cast Steel Bidirectional

Kolink knife gate valves are available in various designs, one-piece body and two-piece bodies, rising stem and non-rising stem, uni-direction and bi-direction structures, resilient and metal seat rings, bonnetless and bolted bonnet designs. For optional designs, deflection cone could divert the flow of abrasive slurries and protect valve seat from abrasion, V port disc and through conduit, the design is used for throttling service, per customers' requirements.

Features of Non-rising Stem Lugged Knife Gate Valves:
Wafer lug-type body
Beveled knife on metal or resilient seats
Self-cleaning mechanism
Bi-direction design
Non-rising stem
Pillar type yoke, more room for stem nut

Applicable Standards of Non-rising Stem Lugged Knife Gate Valves:
a) Design & Manufacture: MSS SP-61, ASME 16.34
b) Face to Face: MSS SP-81, ASME B16.10, EN 558
c) Connection End: ASME B16.5, EN 1092, JIS B2220
d) Test: MSS SP-81

Kolink Valve, specializing in manufacture and supply of quality industrial valves, is building up its reputation for quality and economical products in the valve industry.
