Electric start diesel engine fire pump water centrifugal pump 4 stroke direct injection engine

Categories Diesel Engine Fire Pump
Brand Name: GENOR
Model Number: GWTP
Certification: ISO9001:2008, CE ,CCC
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 200/sets per Month
Delivery Time: Within 15 days
Packaging Details: Wooden package / Plywood case
Product name: diesel engine water pump
Engine type: water cooled
Pump Structure: Single-stage Pump
Power: Diesel engine driven
Engine speed: 1450-3000 RPM
Protection class: IP23
Application: fire fighting
Warranty: 12 months
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

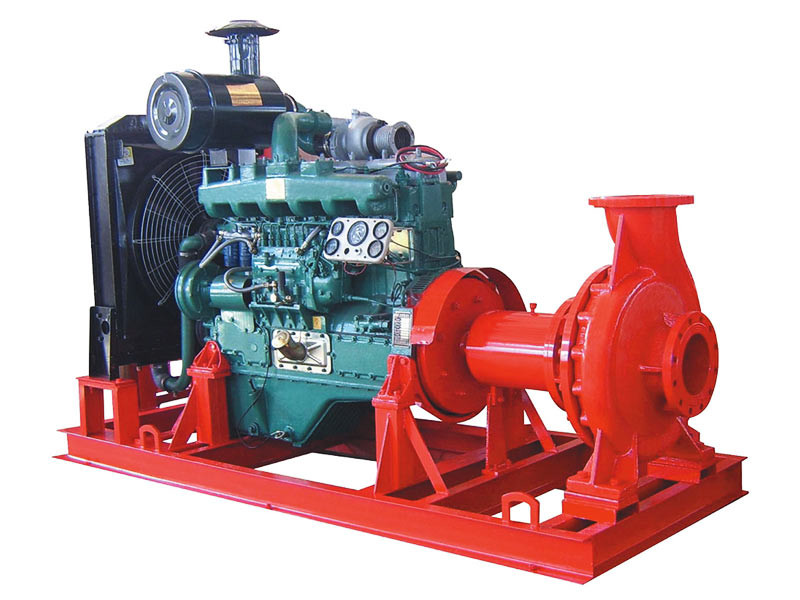

Electric start diesel engine fire pump water centrifugal pump 4 stroke direct injection engine

Electric start diesel engine fire pump water centrifugal pump 4 stroke direct injection engine


The diesel engine water pump is equipped with the strong diesel engine , high efficiency pump and automatic control panel .

It can be weather proof , soundproof or mobile trailer type .
The diesel engine pump is
widely used in Agricultural Irrigation, industrial water supply, fire fighting system, mine industry or other water supply or drawing system .


Engine Features:

1. Genuine UK industrial diesel engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily


TECHNICAL DESCRIPTION
New standard centrifugal pump
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

1. Specification

Water Pump Set ModelCapacityHeadRated speedDiesel Engine Brand
(m3/h)(m)RPM
GWP50-120501201500/1800

Yangdong Or Ricardo Or Weichai Or Cummins Or
Deutz


GWP100-50100501500/1800
GWP100-80100801500/1800
GWP100-1251001251500/1800
GWP120-35120351500/1800
GWP120-50120501500/1800
GWP135-30135301500/1800
GWP160-50160501500/1800
GWP160-80160801500/1800
GWP200-20200201500/1800
GWP200-35200351500/1800
GWP200-50200501500/1800
GWP200-80200801500/1800
GWP230-30230301500/1800
GWP245-45245451500/1800
GWP345-30345301500/1800
GWP400-20400201500/1800
GWP400-50400501500/1800
GWP485-25485251500/1800
GWP485-65485651500/1800
GWP565-30565301500/1800
GWP800-58800581500/1800
GWP885-20885201500/1800
GWP900-20900201500/1800
GWP960-20960201500/1800
GWP1275-201275201500/1800
GWP1275-451275451500/1800
GWP1500-451500451500/1800
GWP2300-402300401500/1800

2. Advantage of the diesel engine water pump


1) high efficiency, compact structure

2) Excellent & reliable performance

3) High degree of automation

4) Strong overload capacity

5) Dry installed, easy installation and maintenance


3. Application

· Agricultural irrigation , fire fighting system

· Municipal engineering ,Wastewater treatment ,constructional engineering

· Sewage collection or discharge in residential community

· Sewage discharge in hospital and hotel

· Centralized and staged disposal in sewage treatment plant

· Water drainage station

· mine industry etc.
