| Categories | Fiber Optic Connectors |
|---|---|
| Brand Name: | J&K |
| Model Number: | LC/PC MM DX |
| Certification: | ISO9001:2008 |
| Place of Origin: | SHENZHEN,CHINA |
| MOQ: | 1000PCS |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Delivery Time: | 3~5days |
| Packaging Details: | PE Bag |
| Product name: | Fiber Optic Connector |
| Application: | FTTH FTTB FTTX Network |
| Insertion loss: | PC≤0.2 dB,UPC≤0.2 dB,APC≤0.2 dB, |
| Operating temperature: | -40~80℃ |
| Return loss: | PC≥50dB,UPC≥55dB,APC≥60dB |
| Durability: | ≤ 0.2db typical change |
| Company Info. |
| J&K Optotec Co.,Ltd. |
| View Contact Details |
| Product List |
LC PC Multimode Duplex Fibre Optic Connector, 0.3dB Insertion Loss
Features
Applications
Specifications
| Item | Single mode | Multi mode |
| Insertion loss | PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB | <0.3dB |
| Return loss | PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB | >25dB |
| Insert-pull test | 1000(times) <0.2dB | |
| Operating temperature | -40°C~ +80°C | |
| Ceramic ferrule spec | 125.5um concentricity deviations: <1um | 127um concentricity deviations: <3um |
| Suitable fiber | PC/APC(9/125um) | PC(50/125um, 62.5/125um) |

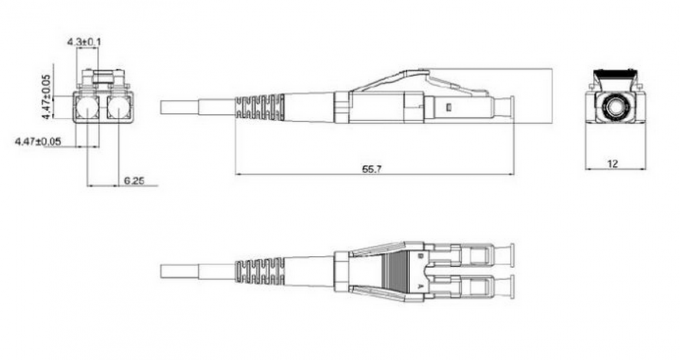

Drawing
|
