| Categories | Construction Materials Testing Equipment |
|---|---|
| Brand Name: | Daxian |
| Model Number: | DX8298 |
| Certification: | BS 476 Part 6 A1: 2009, GB/T 17658-1999 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5 sets per month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Wooden box |
| Power supply: | 230V |
| Standard: | BS 476 Part 6 A1: 2009, GB/T 17658-1999 |
| Display: | Digital display |
| Factory: | We have |
| Product name: | Fire Testing Equipment |
| Warranty: | 12 months |
| Company Info. |
| DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

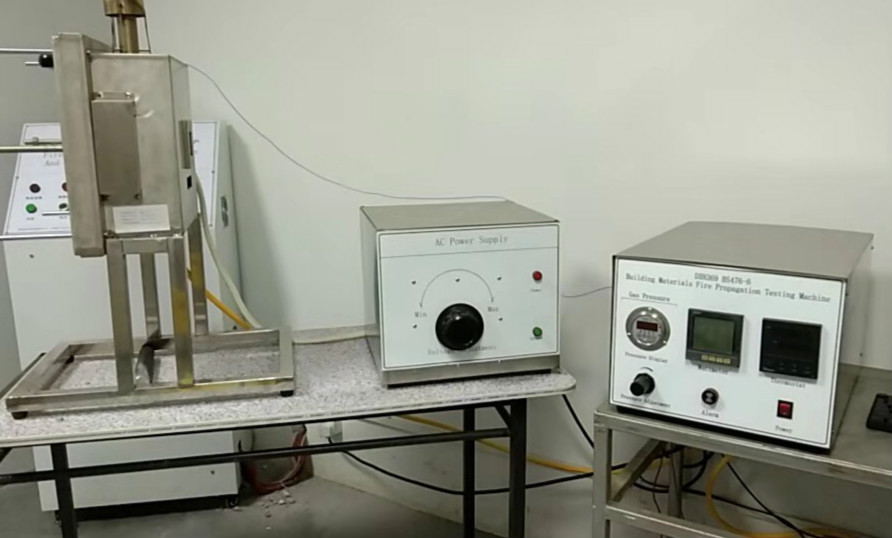

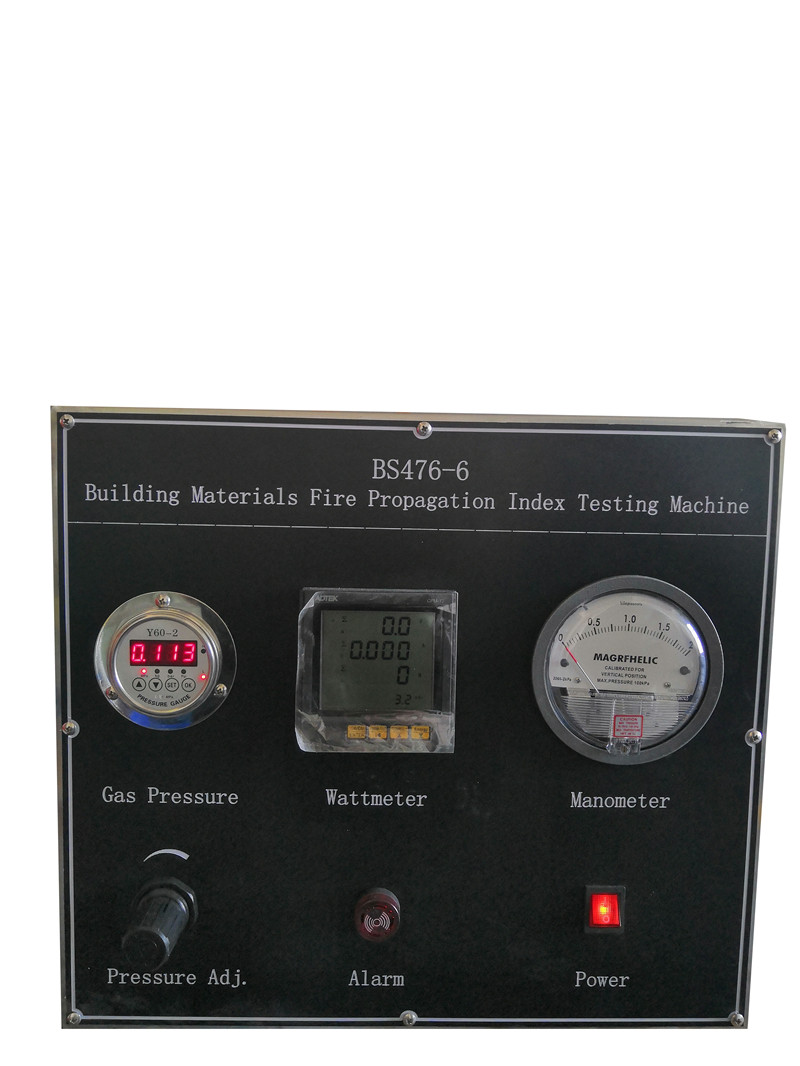

BS 476-6 Building Materials Fire Propagation Testing Machine
Application:
The result being expressed as a fire propagation index,that
provides a comarative measure of the contribution to the growth of
fire made by an essentially flat material,compoite or assessment of
the performance of internal wall and ceiling linings.
Standard:
BS 476 Part 6 A1: 2009
GB/T 17658-1999
Product features:
-stainless steel cabinet support frame;
-calcium silicate plate burner;
-these three samples are all stainless steel parcels;
-2 sets of 1000w quartz radiation device, providing thermal
radiation for samples;
-T-burner provides flame combustion for samples;
-the thermocouple continuously records the temperature and room
temperature difference in the chimney.
- test the output power automatically according to time;
-computer automatically processes data and prints test reports.
- gasket to provide an adequate seal

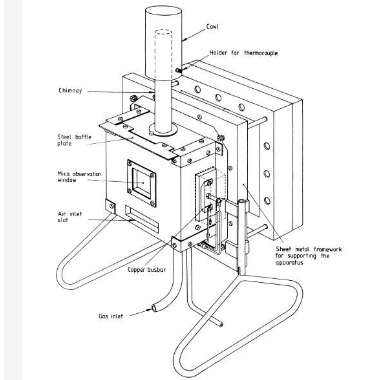

| Combustion chamber of size | 190 mm x 190 mm x 90 mm |
| air inlet slot measuring | 96 mm x 25 mm |
| mica observation window measuring | 50 mm x 50 mm |
| steel baffle plate | 200 mm x 40 mm |
Installation requirements:
-environmental temperature, operating 10 ºC to 35 ºC;
-natural gas supply: gas supply is the standard test gas G112, as
specified in BS 4947;
-gas flow: the gas flow of the burner can be adjusted from 0 to 5
n/ min
-voltage: 230V, 10A
-pressure: 1 kpa
- chimney and cowl
- gas burner
- an electrical heating elements
- thermocouples
- manometer
- gas flowmeter, gas pressure regulating and control valves and gas
igniter
- temperature indicator
- timing device
|
