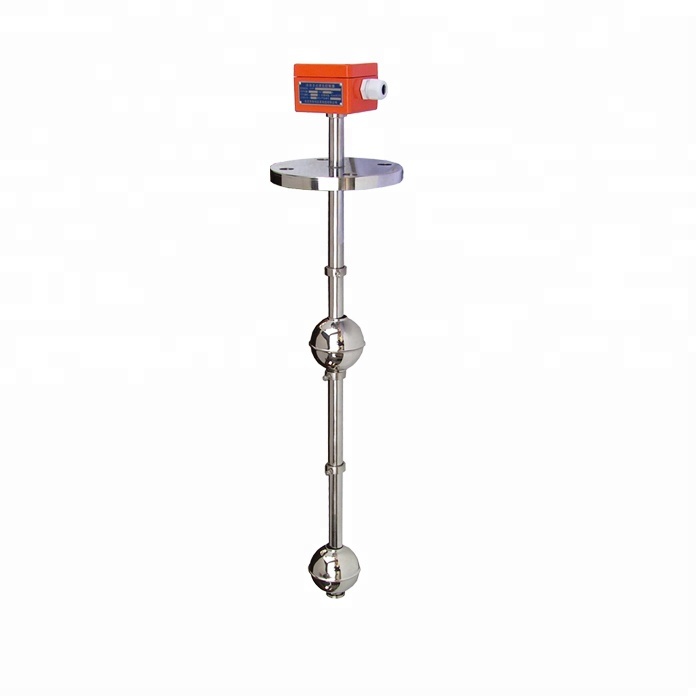

Magnetic Float Ball Type Level Switch Controller With ISO9001 Approved 1 Year Warranty

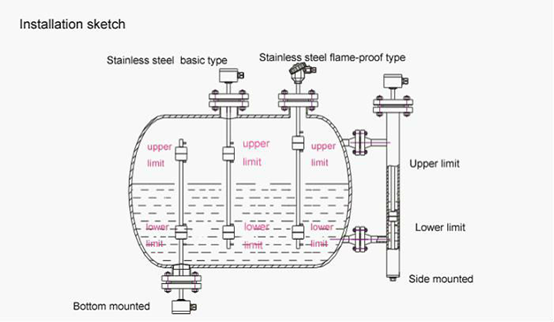

Magnetic levitation pair installed horizontally
A) When the user receives the product, he must carefully check the product to see if there is any damage during transportation and whether it is consistent with the order requirements. After checking, install it correctly in the following order.
B) Float and measuring tube are packed separately. Remove the bottom flange, make the upper part of the float upward, put the float into the measuring tube, and install the bottom flange. Then connect with the container to be measured
C) The magnetic body in the float interacts with the magnet in the color bar on the display screen, the color code is reversed, red means liquid, and white means no liquid.
Note: Handle the float carefully to avoid damage; In order not to affect the read value, all the floats in the display column must be adjusted to white before installation.
