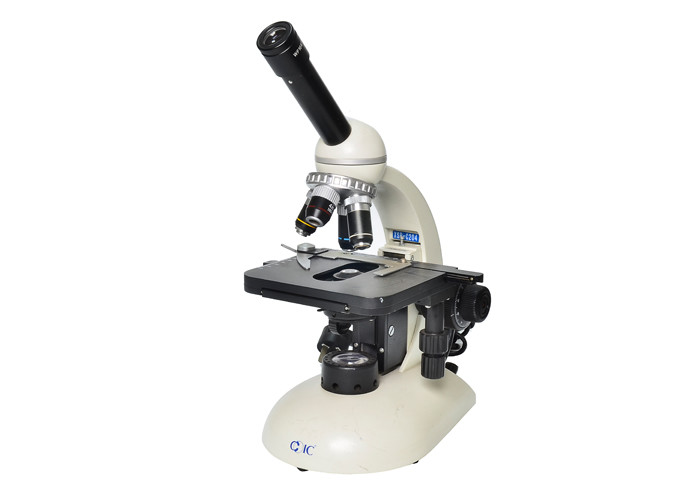

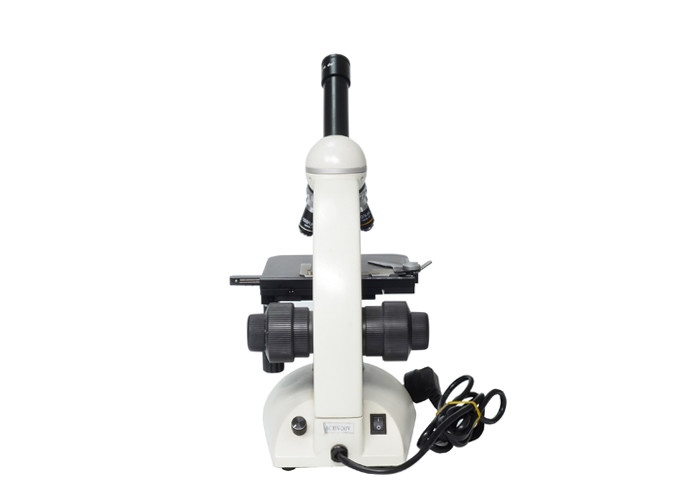

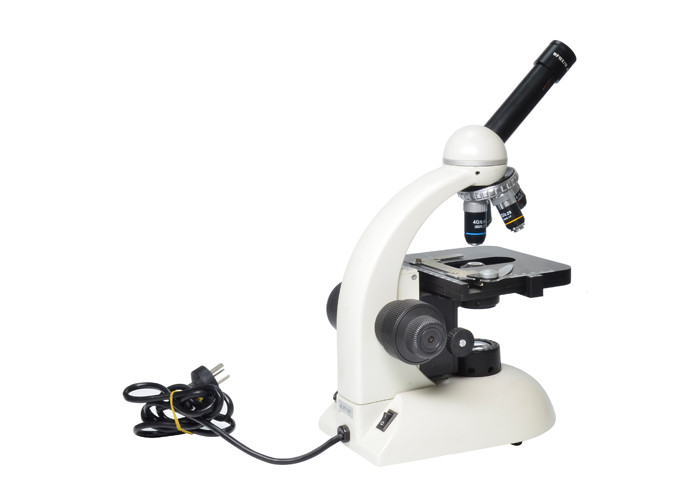

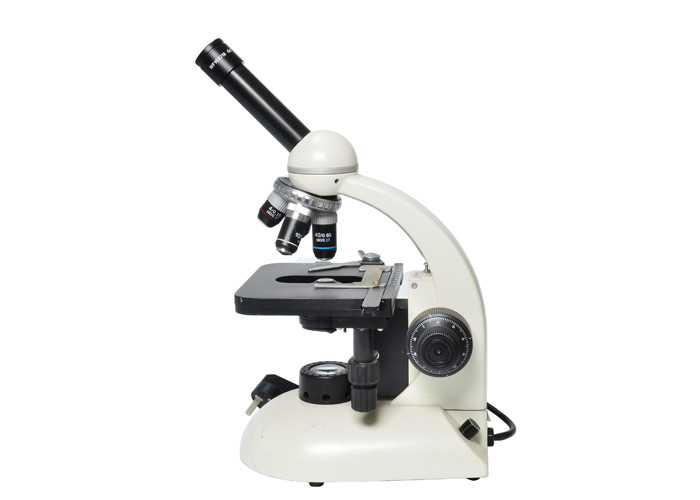

10X 40X Laboratory Equipment Microscope For Middle School Student

10X 40X Laboratory Equipment Microscope For Middle School Student

Cheap Lab Microscope for Primary School Middle School Students

TECHNICALSPECIFICATIONS

EYEPECE(S)

• Extended EWF 10x/18 mm eyepieces, Ø 23.2 mm tubes.
• Eyepieces can be secured to the tubes

HEADS

• Monocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 52 to 75 mm and is equipped with diopter adjustment(s).

NOSEPIECE

• Revolving and reversed nosepiece for 4 objectives

OBJECTIVES

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

•Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil (Optional)

•Semi Plan Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil (Optional)

•Plan Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil (Optional)

STAGE

• 140 x 130 mm ceramic stage with integrated 78 x 30 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective

CONDENSER FOR BRIGHT FIELD

• The standard height adjustable Abbe N.A. 1.25 condenser for brightfield

FOCUSING

• Coaxial coarse and fine adjustments, 200 graduations, 2 μm per graduation, 100 μm per rotation
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.

ILLUMINATION

• 3W LED adjustable illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.

PACKAGING

• Supplied with power cord, dust cover, a spare fuse, user manual and 4 ml immersion oil for models with S100x objective.
• All packed in good quality foam and carton.

CONFIGURATION LIST
