Brand Name: | HJY |
Model Number: | P8 front service led module |
Certification: | CE FCC |
Place of Origin: | China |
MOQ: | negotiation |
Price: | negotiation |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1000sqm/month |
Delivery Time: | 15-20 days |
Packaging Details: | wooden case |
Usage: | Outdoor P8 front service led display board price |
Pixels: | 8mm |
Screen dimension: | Customized |
Brightness: | 6500nit |
Warranty: | 2 Years |
Module size: | 320*320mm |
Led chip: | Nationstar |
front service led display board price: | led advertising display |
front service led display board price P8 outdoor 4:3 16x8ft led display for advertising

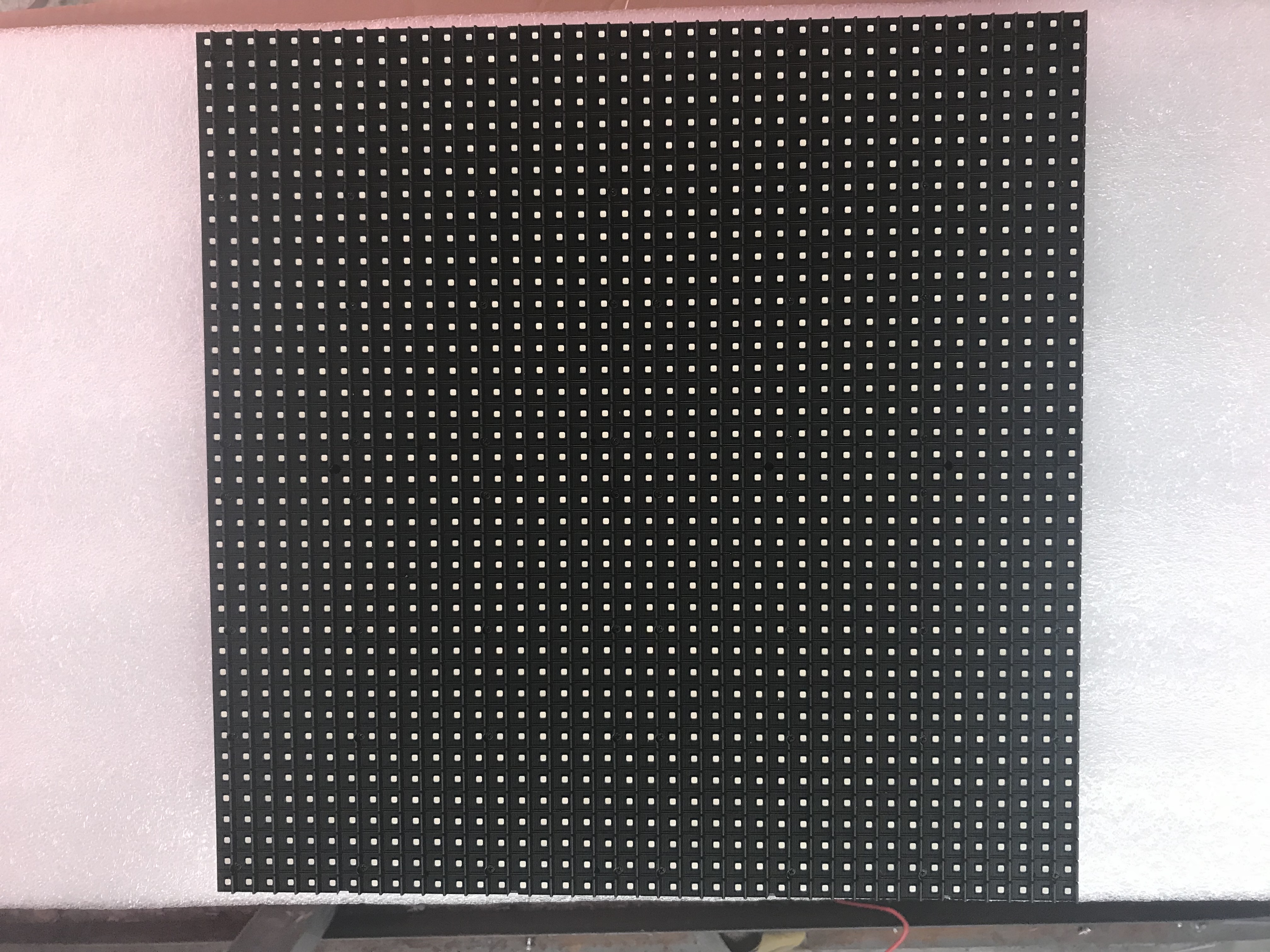

Module Parameter:
Pixel pitch | 8mm |
Pixel configuration | 1R1G1B |
LED type | 3-in-1 SMD 3535 |
Module size | 320*320mm |
Module weight | 2kg |
Module resolution | 40*40 dots |
Cabinet Parameter:
Cabinet size | 1280*1280*200mm |
Cabinet material | iron cabinet |
Cabinet weight | 50kgs |
Ingress protection | IP65 |
Whole Screen Parameter
Pixel density | 15625dots/m² |
Brightness | ≥6500 cd/m² |
Viewing angle | H≥160° V≥160° |
Min.viewing distance | 8m |
Max.power consumption | 1200W/m² |
Avg.power consumption | 600 W/m² |
Working voltage | 110~220VAC±15% |
Interface | HUB75 |
Colors | 16.7millon colors |
Gray level | 14-16bits |
Frame frequency | ≥60frames/s |
Refresh rate | ≥300Hz |
MTBF | ≥100000 hours |
Lifespan | ≥75000 hours |
Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
Operating temperature | -10℃ ~ +40℃ |
Operating humidity | 10-80% no condensation |
Storage temperature | -20℃ ~ +60℃ |
Storage humidity | 10-85% no condensation |
Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
Color temperature | Adjustable by software |
Brightness level | 256 levels, automatic adjustment by software |
Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

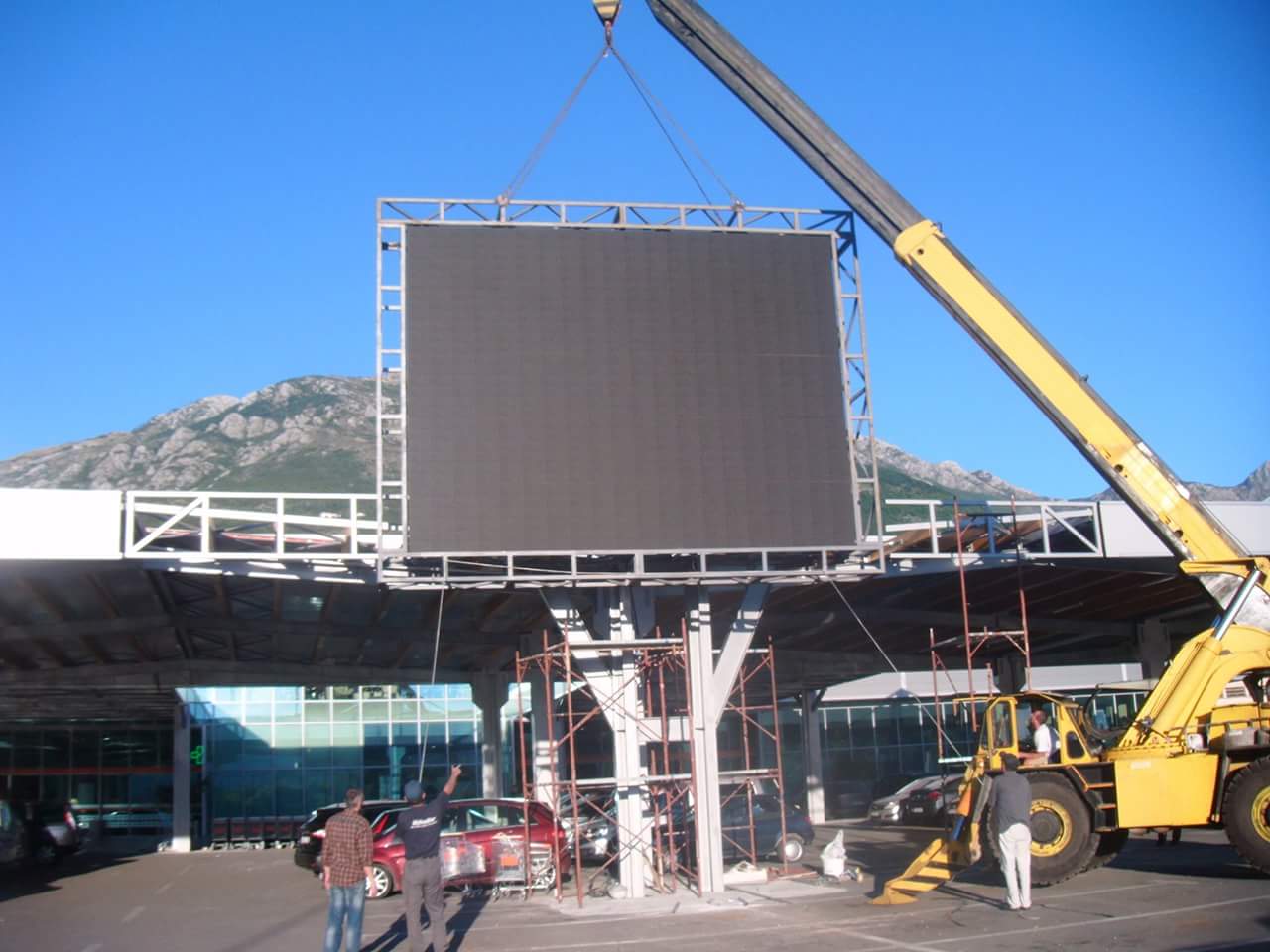

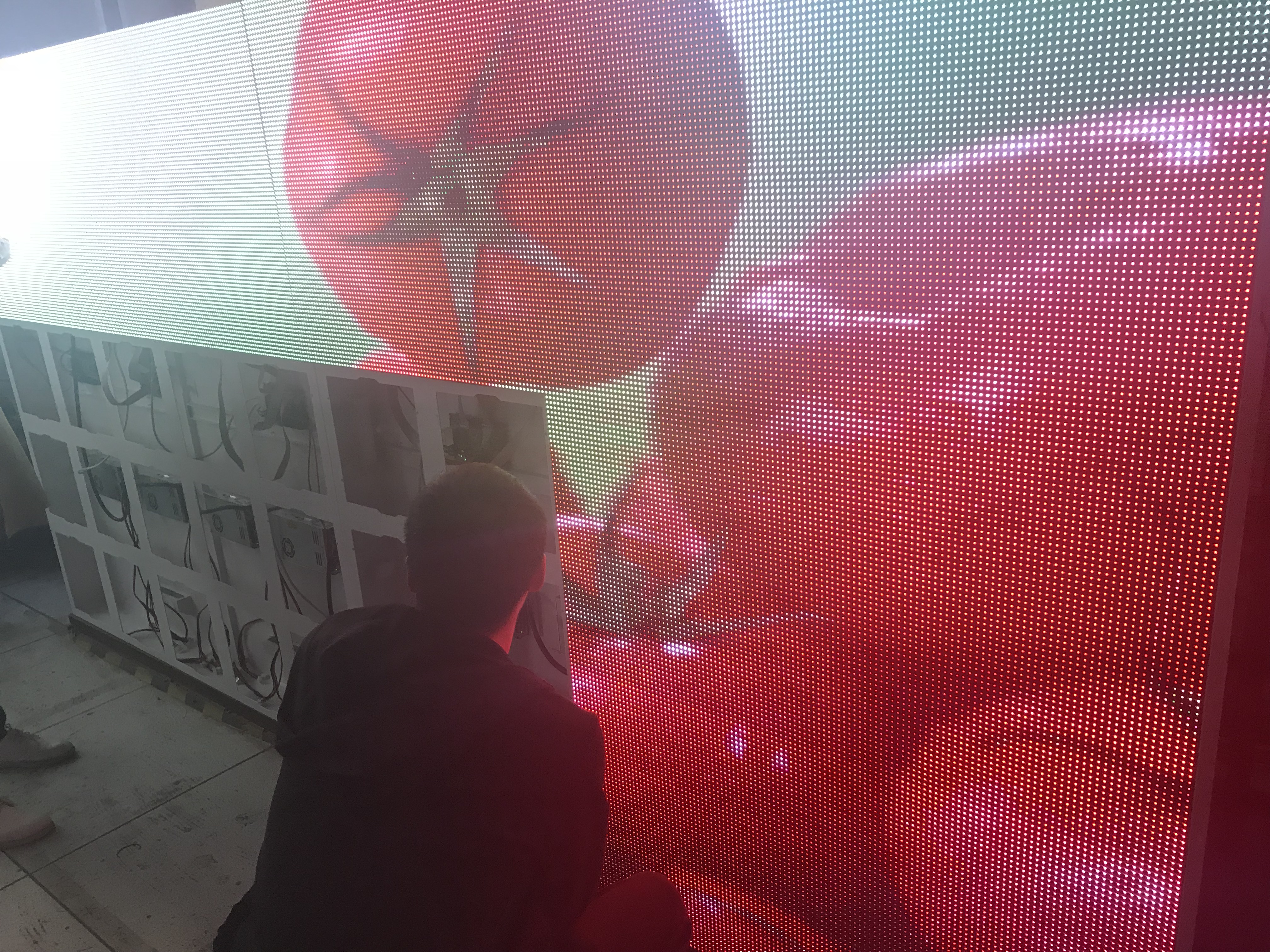

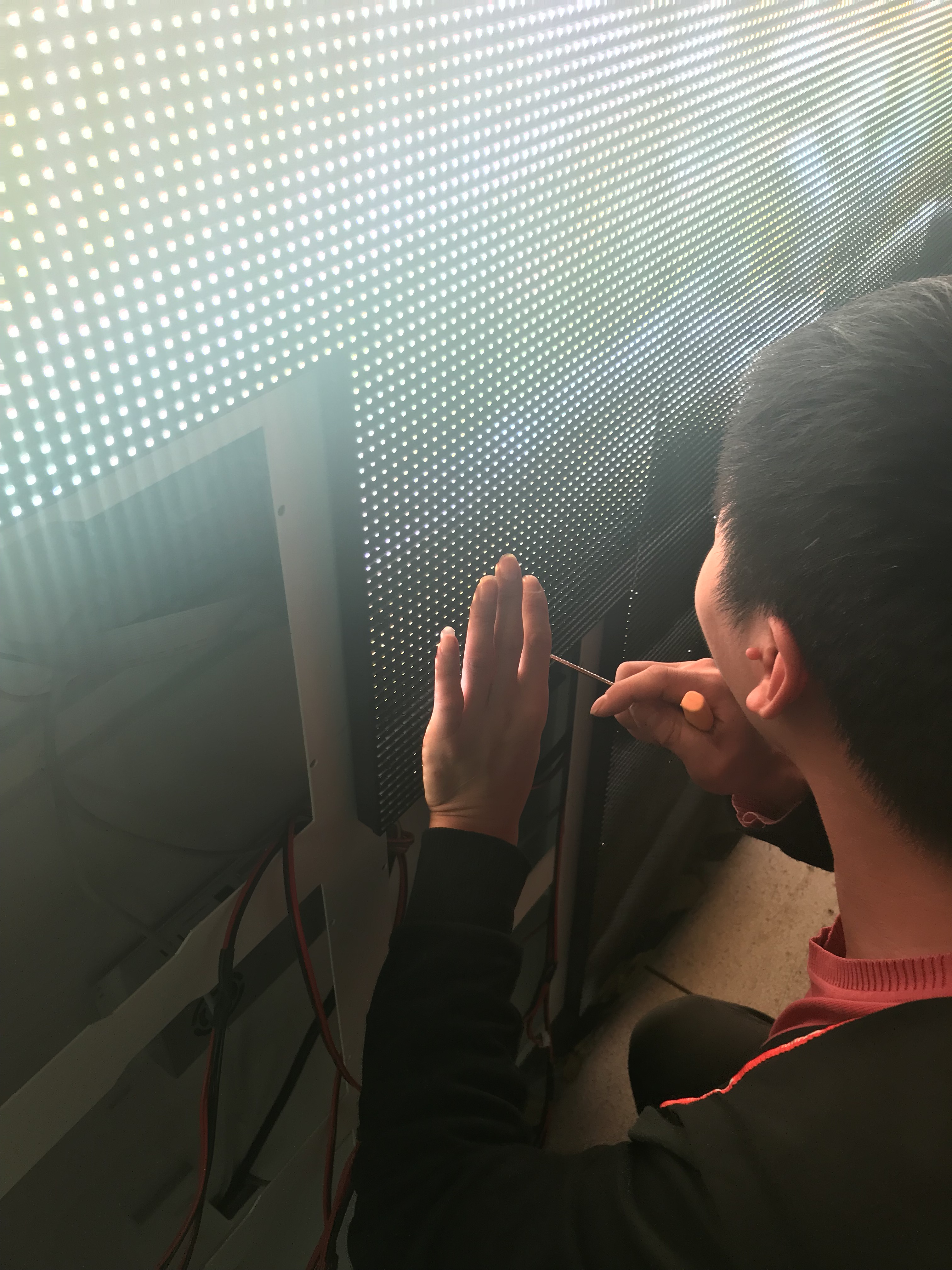

Installation and test:
Our service
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent
English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by
our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our
distributor.
6)Warmly welcome your visit in our company if available.
7)Warranty: 24 months, a little investment for longer warranty
time.
![]() |
