| Categories | Coal Mining Lights |
|---|---|
| Brand Name: | Green Lighting |
| Model Number: | GST-7B |
| Certification: | CE, ATEX,ROHS |
| Place of Origin: | Shenzhen China |
| MOQ: | 1piece available |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union for 100% Payment Before Shipping |
| Supply Ability: | 10000 pieces per month |
| Delivery Time: | sample order for 3-7 working days, bulk order within 10-25 working days |
| Packaging Details: | colorful box; can be customized as your request |
| Name: | Semi-corded Miner Headlamp |
| Battery: | 6.8Ah Panasonic battery pack |
| Brightness: | 15000lux |
| Standard Color: | Yellow, black, Customized color with MOA 500PCS |
| Light Weight: | about 392g |
| Lighting time: | 13-15hours |
| Service: | OEM ODM available |
| Rear Warning Light: | red/green/blue three color up to your options |
High Brightness Rechargeable Cree LED Safety Cap Lamp for Miner Semi - Corded
Features of GLS12-A semi-corded Miner Cap Lamp:
1). 15000lux high beam corded lamp.
2). 4levels Lighting Mode: work light - strong light (15000lux) - auxiliary light - SOS (high safety)
3). Safety reliable and free maintenance.
This new cordless cap lamp uses Li-ion batteries which can keep the lamp more than 13 hours continuous working time.
The motherboard is designed with short-circuit, over-charging, over-discharging protection.
And it is also high temperature and low temperature resistant.
It is also waterproof, anti-explosive, compact resistant, fire retardant to keep safety use.
4). Lightweight 392g and 6.8Ah panasonic battery pack.
5). Low power warning function for safety lighting.
6). Rear warning light with red, green, blue three colors for options.
7). Safety rope for lamp falling down searching.
8). Anti-explosive, flame-resistant, impact-resistant, IP68 Waterproof.
9). Aluminum lighting cup with better lighting spot.
10). Charger: USB charger (USB cable) ,cradle charger (battery part) or cradle charger (lamp head part).
11). Reflective strip.
Advantages of Semi-corded cap lamp:
Main parameter of GLS12-A rechargeable mining headlamp:
| Item | GLS12-A |
| Light source | 1MA and 2AL |
| Battery capacity | 6.8Ah panasonic Li-ion battery pack |
| Rated voltage | 3.7V |
| Power of main light | 1.7W |
| Main Light current | 450mA |
| Brightness of ML | 15000lux |
| Illuminous of ML | 221lum |
| Working time | 13-15hours |
| Life span of light source | 100000hours |
| Battery cycles | 1200 |
| Weight | 392g |
| Ingress protection | IP68 |
Certificate | CE, Atex, rohs |
| Customization service | Yes |

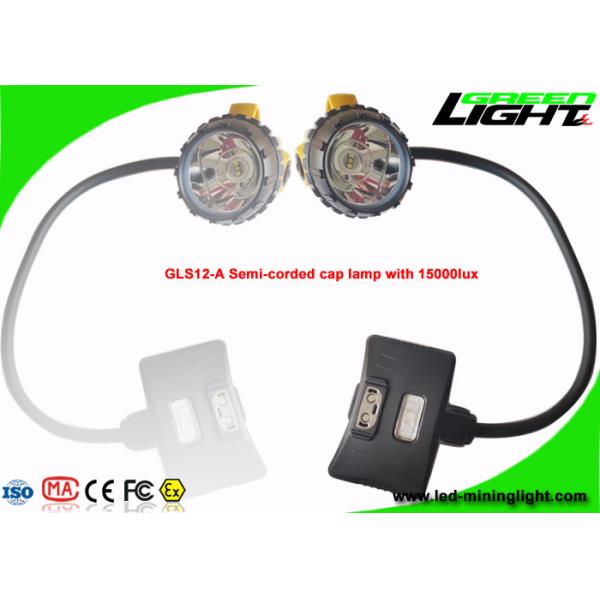

Detailed Pictures of GLS12-A mining cap lamp:
LED Cap Lamp Trouble Shooting:
1. If abnormal phenomena happen but the lamp is in the normal using
status,must be
careful to check the reason firstly.Then deal with the problem.
2. The lighting time is not enough
| No | Reason | Treatment |
| a | No enough charging | First,should check if the connection between the charger’s output plug and lamp’s charging socket is good |
| b | Using too long to achieve life | Replace the lamp |
| c | Charger does not work | Check if the indicator of charger is good and also check if the connection of charger’s AC power endpoint is good |
3, The lamp is off suddenly when it works
Reason:short circuit or battery power runs out
Treatment:turn off the main light source,restart,then the lamp
should be on (remark:
the lamp has a circuit breaker);It is is still off after
restarting,please charge the battery.
If it still doesn’t work after charging,it means the lamp has some
problems,delivery the
lamp to factory for repair.
Green Lighting Electronics Co.,LTD.
High safety cap lamp with tracking systems is trend for underground mines/tunnel sites.
We are researching and developing tracking systems to plant into cap lamp.
Simple NFC tags design into caplamp to manage miners work
attendance.
RFID TAG to store data about mine lamp info.
We trust we can make it successfully in the near future.
Our aim: offering good quality high safey cap lamp for underground miners.
Our clients: we are proud to be OEM factory for our Canada Customer and South African Customers (Big company for selling mining cap lamp with tracking systems)
Our service: 1year warranty time if any quality problem.
Our pursuit: Customer's satisfaction and good usage feedback.
Hope sincerely cooperate with you and grow up together (business or lamp technology).
