| Categories | Waste Removal Trucks |
|---|---|
| Brand Name: | CLW / Chengli |
| Model Number: | CLW5070 |
| Certification: | CCC,ISO,BV,SGS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500Unit Per Month |
| Delivery Time: | 20-30 Days |
| Packaging Details: | Naked Pack with Wax,bulk ship,ro-ro |
| Type: | Hydraulic Garbage Truck |
| Container: | Square Container |
| Usage: | Hook Lift Arm with Automatic Dumping |
| Truck Brand: | Forland, Foton, Dongfeng |
| Engine: | Diesel Engine |
| Gearbox: | 5 Forwarde & 1 Reverse |
| Tire: | 6.50R16, 6.50-16, 6Pieces |
| Container Material: | Steel Container with Rubber Sealing |
| Container Size: | 3cbm, 4cbm, 5cbm |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

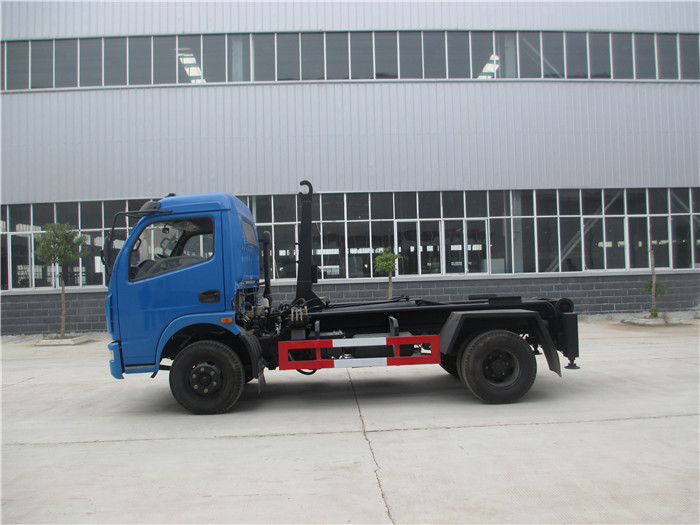

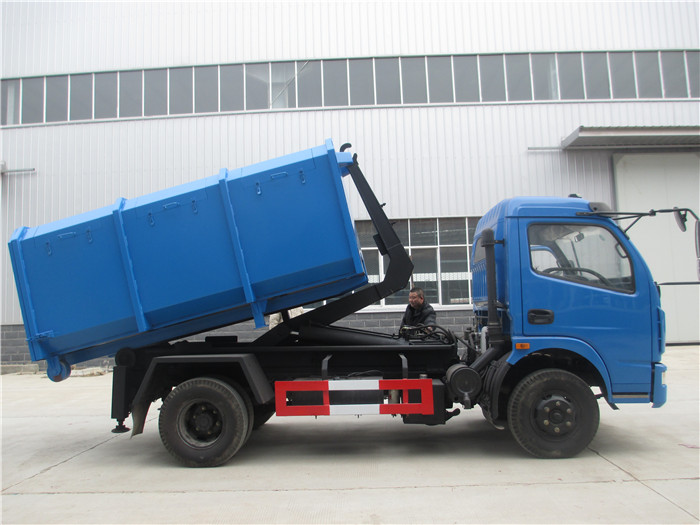

Dongfeng 5cbm/4ton Hooklift Garbage Truck with Hydraulic Pull Arm

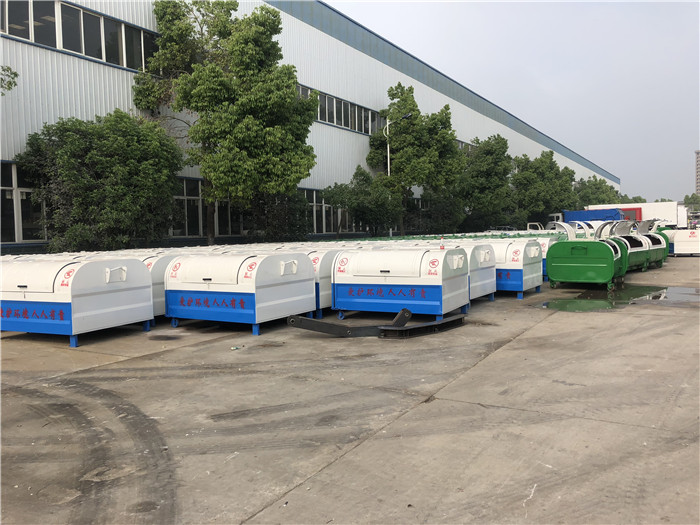

Garbage Container
1. Dongfeng Chassis of waste collection truck: Engine 120HP, Fast
Gearbox 5Forward & 1 Reverse,
2. Garbage Bin with different size options of waste collection
truck: 4cbm to 10cbm
2. Hydraulic Control Loading & Unloading System
3. Different shapes of waster collection bins such as
trapzoid,boat-shape,square shape and so on and divided into
above-ground and under-ground type.
4. high-tensile steel chains:imported hydraulic oil cylinder and
sealing material
5. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Best Choice for Garbage collection and transporation Inside City.
| Overall dimension | 6815x2120x2410 | Curb weight | 2910 |
| Box volume | 6cbm | ||
| Chassis parameters | |||
| Chassis model | EQ1050T | Chassis brand | DongFeng |
| Wheelbase | 3800mm | Front /Rear track | 1750/1586mm |
| Front/rear suspension | 1210/1805mm | Approach/departure angle | 24/13 |
| Max speed | 95Km/h | Chassis manufacturer | DongFeng Motors Co.,Ltd. |
| Configuration | Single row cab,allowable 3 passenger,with broken gas brake, direction help | ||
| Cab | |||
| Color | White ,other color is optional | ||
| Model | CY4102-C3C | ||
| Engine | |||
| Emission | Euro 3 | ||
| Type | Vertical,inline,water-cooled, four-stroke, direct injection | ||
| Rated power | 120hp | ||
| Displacement | 3856ml | ||
| Manufacturer | Dongfeng Chaoyang Power Co., Ltd. | ||
| Tire | Size | 8.25-16 nylon tire | |
| Numbers | 6+1 nos | ||
| Front axle | 2.5ton | ||
| Rear axle | 4.5ton | ||
| Drive form | 4x2 | ||
| Suspension | Multi leaf springs | ||
| Rated voltage | 24V ,DC | ||
| Transmissions | Five speed transmission ,5 speed forward 1 reverse | ||
| Steering device | Power assisted steering | ||
| Steering wheel | Left hand drive | ||
| Upload structure parameters | |||
| Box volume | 6cbm | Material | Carbon steel |
| Thickness | Side:3mm | Color and logo | Optional |
| Bottom:4mm | |||
| Standard configuration | With a trash box , domestic cylinder and multi-valve | ||
| Optional configuration | Can be equipped with several trash boxes | ||
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen
FAQ
Q1: What kinds of waste collection truck I can order from your company?
A: There are various sizes and types of garbage trucks with
different functions,you can contact us and tell your request.We
will recommend you suitable product.
Q2:: Have you supplied waste collection truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage
trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our
overseas marketing office in Wuhan. Wuhan is two hours' plane from
Beijing,Shanghai or Guangzhou city,welcome to visit us for factory
inspection.
