Mechanical Suspension Bogie Suspension Truck Suspension Parts High Mounting Series

Truck Trailer Mechinical Suspension , Bogie suspension , High Mounting Series , 24T , 28T , 32T , 36T

Truck Trailer Mechanical Suspension , Bogie suspension , High Mounting Series , 24T , 28T , 32T , 36T

Type of suspensionPlat-Form Series
Capacity of Bogie suspension24T,28T,32T,36T
Track of Bogie suspension1840MM/1847mm
Optional of Bogie suspension: ABS
W-Bogie
This suspension system is designed to handle heavy loads under very special conditions and extremely rough terrain. High capacities and exceptional high spring travel ensure optimized operation in off-road conditions.
Features and Benefits
Proven
This suspension system provides a direct connection between the trailer frame and the trunnion support eliminating additional fastener brackets.
Strong
The trunnion connection is extremely strong and wear-resistant. Thick walled brass bushings, mounted as floating elements, guarantee durability and reduced maintenance of the trunnion tube bearing.
Easy to Install
The solid mounting bracket fits all trailer styles. Easy installation saves time and cost.
Reliable
The spring ends are secured to the axles and clamped in rubber. Strong and reliable leaf-springs maintain axle-alignment in all road-conditions.
Better Ride Quality
The extremely high spring travel ensures superior handling in off-road condition.

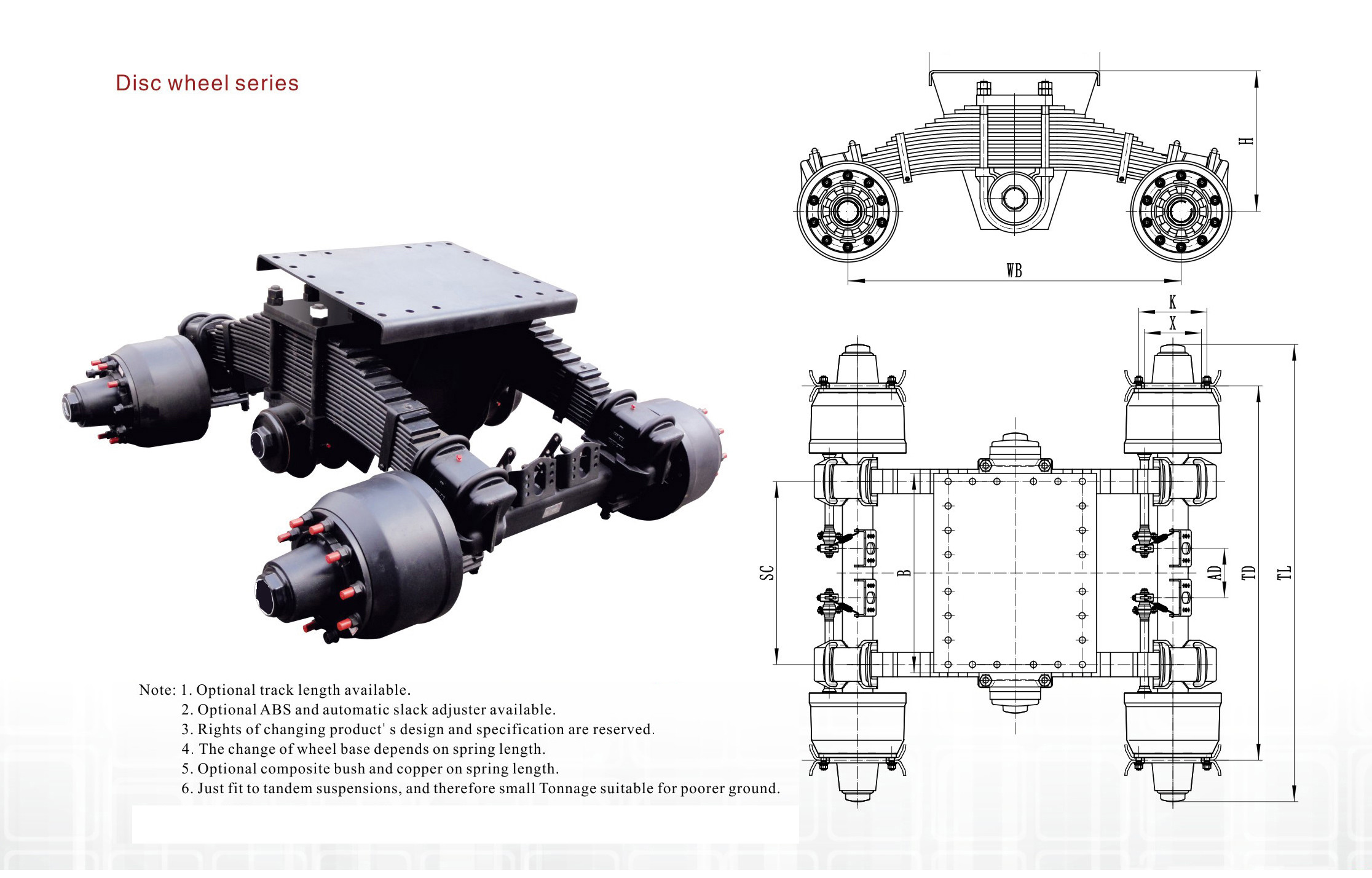

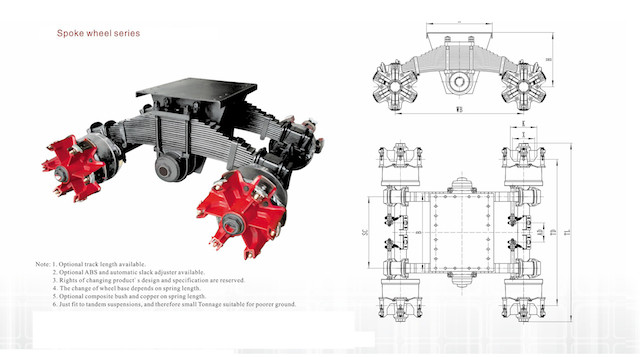

Model Variations
This suspension will be manufactured according to your requirements.

Bogie suspension ModelBogie suspension
Capacity (kg)
Brake Seriesφ x Width (mm)(TD)
Track TR (mm)
(SC)
Spring center (mm)
(WB)
Wheel Base mm
Distanceof Brake Chamber
mm
BearingHigh Mounting Bracket mmHeight of PedestalType of WheelWheel StudP.C.D/ PILOT HOLE DIAMETERTyreRimSpacerSpring Wide/QTYWeight
KGS
(TL)
Total Length
mm
GETBG18112*18000S420*2201840900155026232222/32314800*980660Disc Wheel10-M22*1.5335/28112.00R208.50V-20_120/1725122250
GETBG18162*18000S420*2201854900155026232222/32314800*980660Disc Wheel10-M22*2335/28112.00R208.50V-20φ382/φ281/14120/1725122235
GETBG16112*16000S420*2001840900155024332222/32314800*980660Disc Wheel10-M22*1.5335/28112.00R208.50V-20_120/1724902250
GETBG16162*16000S420*2001854900155024332222/32314800*980660Disc Wheel10-M22*1.5335/28112.00R208.50V-20φ382/φ281/14120/1724902235
GETBG14112*14000S420*2001840900155024532219/33215800*980660Disc Wheel10-M22*1.5335/28111.00R208.0V-20_120/1724062190
GETBG14162*14000S420*2001854900155024532219/33215800*980660Disc Wheel10-M22*2335/28111.00R208.0V-20φ382/φ281/14120/1724062175
GETBG12112*12000S420*1801840980140042133118/33213700*980/700*1060/800*980670Disc Wheel10-M22*1.5335/28110.00R207.5V-20_90/1819422160
GETBG12162*12000S420*1801854980140042133118/33213700*980/700*1060/800*980670Disc Wheel10-M22*2335/28110.00R207.5V-20φ382/φ281/1490/1819422145
